Delphi

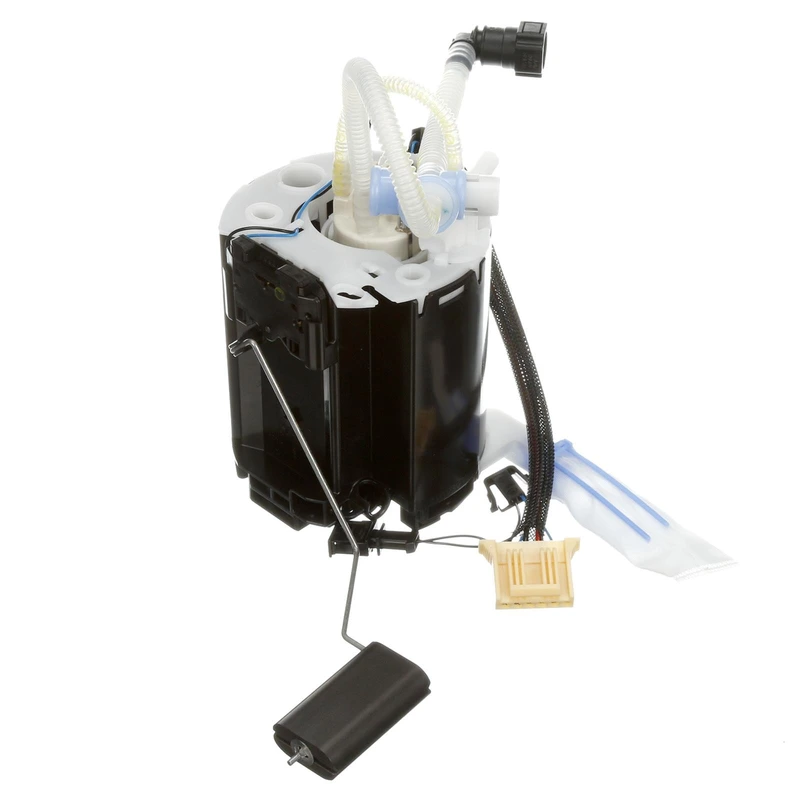

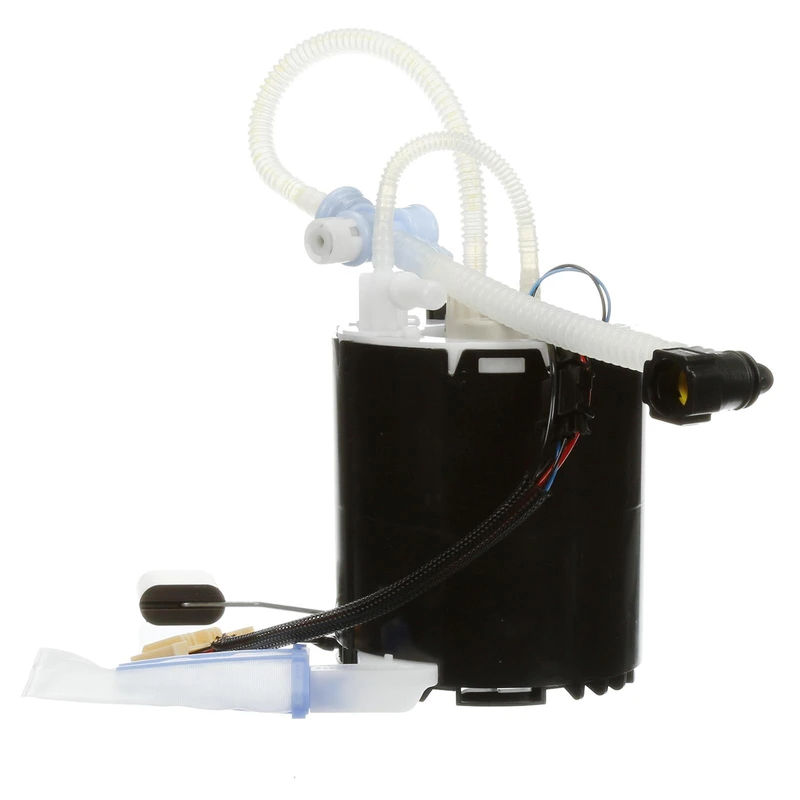

Fuel Pump Module Assembly - Delphi FG1669

Part # FG1669
Item # 1001VQZH
$758.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
14
Average Flow Rating (gph)
44
Connector Gender
Male
Connector Quantity
1
Connector Shape
Rectangle
Fuel Filter Included
No
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
External
Lock Ring Included
No
Maximum Pressure (PSI)
116
Minimum Pressure (PSI)
65
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.375
Outlet Quantity
1
Outlet Type
Female Quick Connect
Package Contents
Fuel Pump Module Assembly with Float Arm, Tank Seal, Instruction Sheet
Pressure Sensor included
No
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
50
Resistance Ohms Full (Ohms)
990
Strainer Included
Yes
Terminal Gender
Female
Terminal Quantity
6
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all

About this item
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free Shipping & Exclusive Guarantee: Take advantage of free shipping and the assurance of our 3-year exclusive warranty on your Delphi fuel pump.
● Comprehensive Accessories: The Delphi fuel pump offers a comprehensive selection of high-quality accessories, including the fuel-sending unit and regulator.
● Gauge Accuracy: Delphi's fuel pumps are meticulously matched to OE specifications for empty float height and retention, delivering accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps recover rapid pressure performance and maintain system integrity, offering enhanced pumping with reduced energy input, while their lowered current draw has minimal impact on the vehicle's electrical system.
● OE-Design Connector: The OE-design connector and body harness are optimized to ensure exceptional performance.
● Validated Vehicle Fit: Delphi's validated parts are the result of their meticulous matching to your specific vehicle.

Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E9130M - CARQUEST, AIRTEX
C2Z8509 - JAGUAR
C2D25079 - JAGUAR
C2Z11854 - JAGUAR
CFG1669 - AUTOZONE
C2D37814 - JAGUAR
FG1669 - DELPHI
C2D28002 - JAGUAR
C2Z23190 - JAGUAR
SP5143M - SPECTRA PREMIUM

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (9)vehicles
All
Jaguar
2010 - 2010JaguarXF
2010 - 2015JaguarXFR
2010 - 2019JaguarXJ
2011 - 2011JaguarXF
2012 - 2012JaguarXF
2013 - 2015JaguarXF
2013 - 2015JaguarXFR-S
2014 - 2017JaguarXJR
2018 - 2019JaguarXJR575
