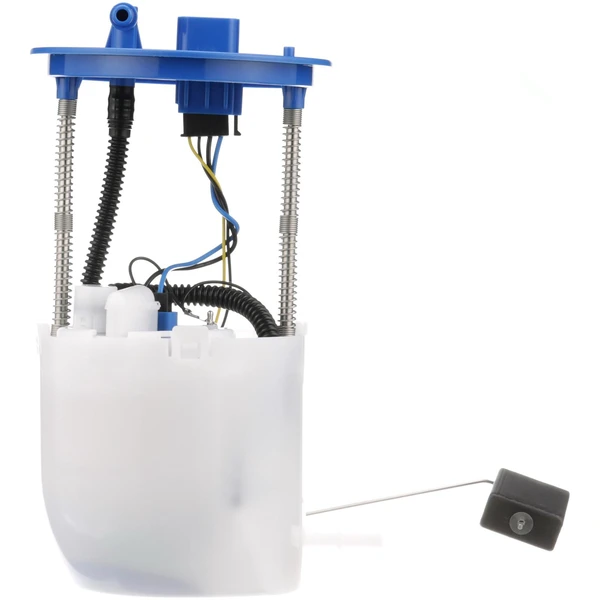

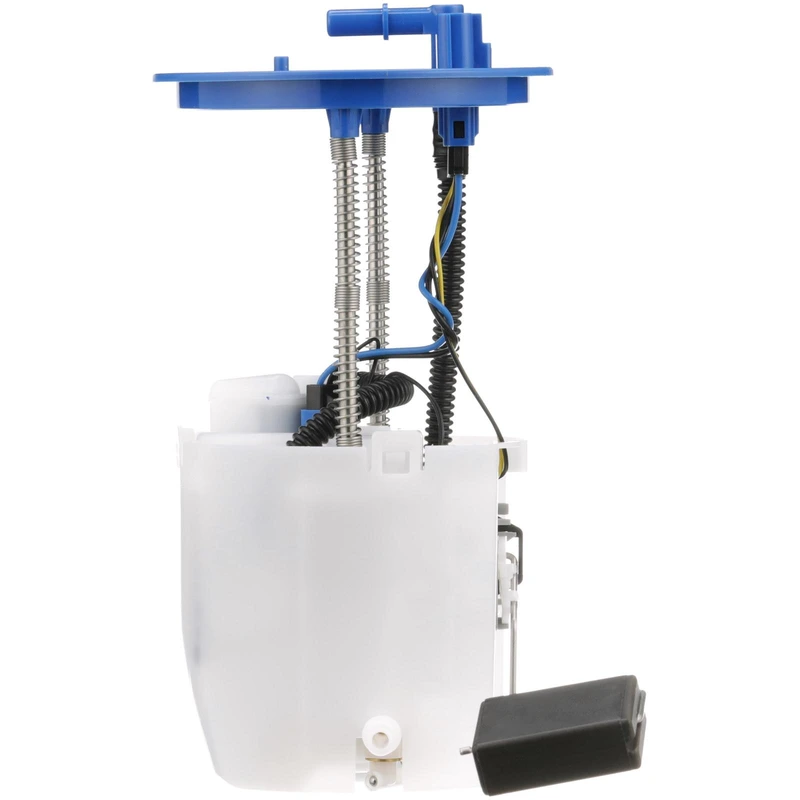

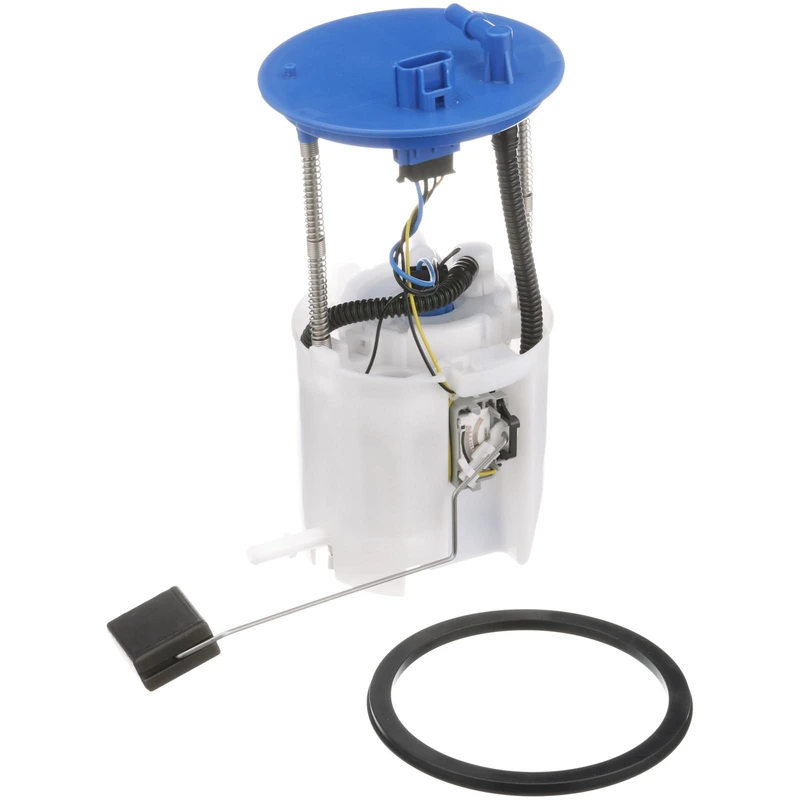

Fuel Pump Module Assembly - Delphi FG1652
Part # FG1652
Item # 1001VN1Z
$602.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 9
- Average Flow Rating (gph)
- 26
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 85
- Minimum Pressure (PSI)
- 65
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 200
- Resistance Ohms Full (Ohms)
- 20
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Elevate your Delphi fuel pump purchase with our commitment to free delivery and a 3-year exclusive warranty.
● Wide-ranging models: The Delphi fuel pump is enhanced by a comprehensive selection of top-tier accessories, such as the fuel sending unit, fuel filter, and regulator.
● Gauge Accuracy: Delphi's fuel pumps carefully follow OE requirements for empty float height and float retention, ensuring accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps restore rapid pressure performance and sustain system integrity, delivering improved pumping with lessened energy consumption, while their reduced current draw minimally affects the vehicle's electrical system.
● OE-design connector: The OE-design connector and body harness are crafted to guarantee exceptional performance.
● Validated Vehicle Fit: Delphi's validated parts are the outcome of their rigorous validation and vehicle-specific application matching process.
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Elevate your Delphi fuel pump purchase with our commitment to free delivery and a 3-year exclusive warranty.
● Wide-ranging models: The Delphi fuel pump is enhanced by a comprehensive selection of top-tier accessories, such as the fuel sending unit, fuel filter, and regulator.
● Gauge Accuracy: Delphi's fuel pumps carefully follow OE requirements for empty float height and float retention, ensuring accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps restore rapid pressure performance and sustain system integrity, delivering improved pumping with lessened energy consumption, while their reduced current draw minimally affects the vehicle's electrical system.
● OE-design connector: The OE-design connector and body harness are crafted to guarantee exceptional performance.
● Validated Vehicle Fit: Delphi's validated parts are the outcome of their rigorous validation and vehicle-specific application matching process.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A33253 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
SP4139M - SPECTRA PREMIUM
E9207M - AIRTEX
FG1652 - DELPHI
CFG1652 - AUTOZONE
PE1A1335X, PE1A-13-35X - MAZDA
P77099M - CARTER
PYB21335X, PYB2-13-35X - MAZDA
PE0113ZE1, PE01-13-ZE1 - MAZDA
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Mazda
| 2013 - 2016 | Mazda | CX-5 |
| 2017 - 2019 | Mazda | CX-5 |
| 2020 - 2022 | Mazda | CX-5 |
