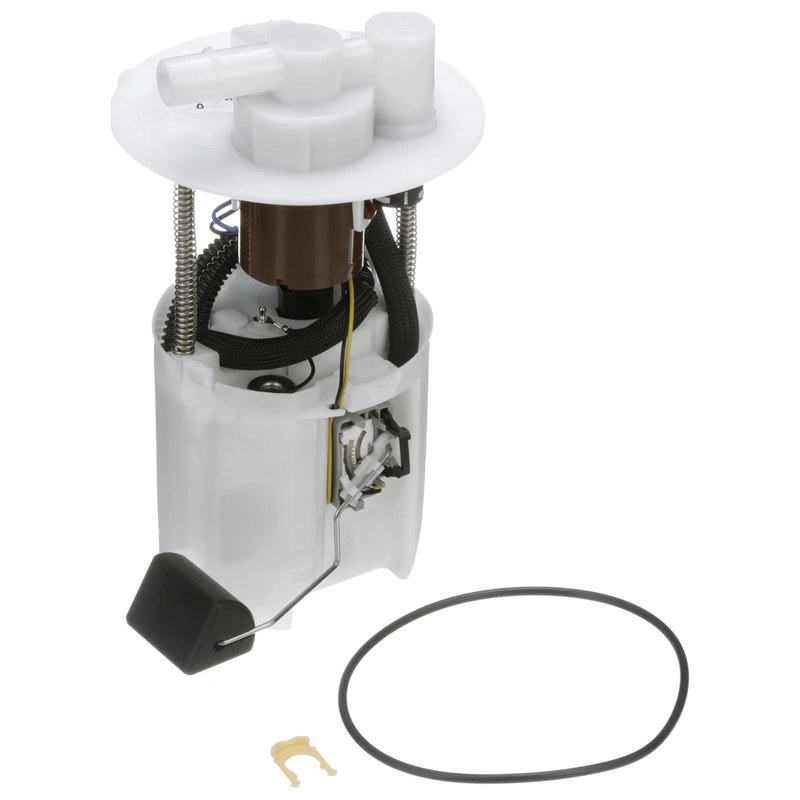

Fuel Pump Module Assembly - Delphi FG1640
Part # FG1640
Item # 1001VPT2
$396.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 40
- Connector Gender
- Female
- Connector Quantity
- 1

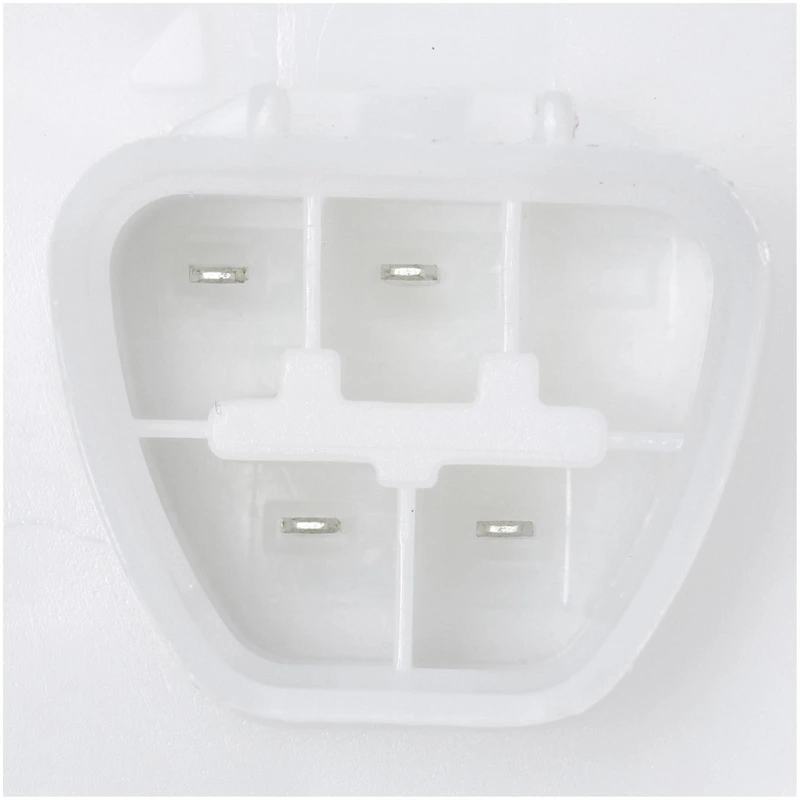

- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 95
- Minimum Pressure (PSI)
- 47
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Quantity
- 2
- Outlet Type
- Push In
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 410
- Resistance Ohms Full (Ohms)
- 15
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Indulge in the convenience of free shipping and the assurance of our 3-year exclusive guarantee on your Delphi fuel pump.
● Premium components: The Delphi fuel pump is enhanced by a full range of high-quality components, from the fuel sending unit to the fuel filter and regulator.
● Gauge Accuracy: Delphi's fuel pumps diligently align with OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps recover fast pressure performance and retain system integrity, delivering improved pumping with lessened energy input, while their lowered current draw has negligible impact on the vehicle's electrical system.
● OE-design connector: The OE-design connector and body harness are engineered for unrivaled performance.
● Validated Vehicle Fit: Delphi's validated parts are the result of their thorough validation and application-specific selection.
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Indulge in the convenience of free shipping and the assurance of our 3-year exclusive guarantee on your Delphi fuel pump.
● Premium components: The Delphi fuel pump is enhanced by a full range of high-quality components, from the fuel sending unit to the fuel filter and regulator.
● Gauge Accuracy: Delphi's fuel pumps diligently align with OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps recover fast pressure performance and retain system integrity, delivering improved pumping with lessened energy input, while their lowered current draw has negligible impact on the vehicle's electrical system.
● OE-design connector: The OE-design connector and body harness are engineered for unrivaled performance.
● Validated Vehicle Fit: Delphi's validated parts are the result of their thorough validation and application-specific selection.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A33188 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
E3781M - CARQUEST, AIRTEX
FG1640 - DELPHI
CFG1640 - AUTOZONE
P76853M - CARTER
SP9165M - SPECTRA PREMIUM
7702002411, 77020-02411 - TOYOTA
7702002410, 77020-02410 - TOYOTA
8332002010, 83320-02010 - TOYOTA
152-0988
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Toyota
| 2014 - 2018 | Toyota | Corolla |
| 2019 - 2019 | Toyota | Corolla |
Highlights
