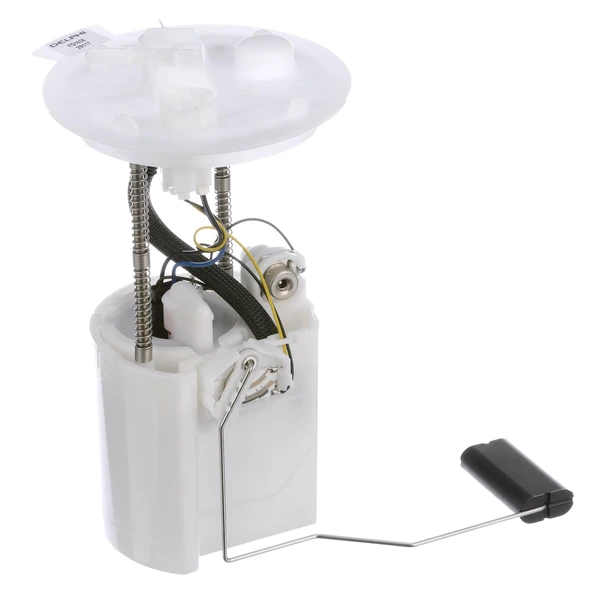

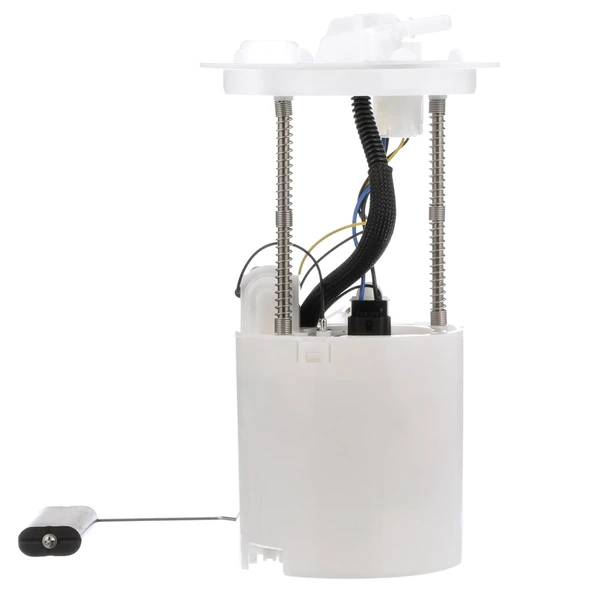

Fuel Pump Module Assembly - Delphi FG1635
Part # FG1635
Item # 1001VRWG
$296.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 26
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 59
- Minimum Pressure (PSI)
- 55
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 464
- Resistance Ohms Full (Ohms)
- 51
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Experience the unbeatable combination of free shipping and a 3-year exclusive warranty on your Delphi fuel pump.
● Extensive selection: Our Delphi fuel pump offers a diverse array of high-quality components, including the fuel sending unit, fuel filter, and regulator.
● Gauge Accuracy: Delphi's fuel pumps precisely match OE guidelines for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps reinstate rapid pressure performance and uphold system integrity, delivering improved pumping with lessened energy requirements, while their decreased current draw barely affects the vehicle's electrical system.
● OE-design connector: Exceptional performance is the essence of the OE-design of the connector and body harness.
● Validated Vehicle Fit: Delphi's validated parts are carefully chosen and tested to ensure a seamless integration with your vehicle.
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Experience the unbeatable combination of free shipping and a 3-year exclusive warranty on your Delphi fuel pump.
● Extensive selection: Our Delphi fuel pump offers a diverse array of high-quality components, including the fuel sending unit, fuel filter, and regulator.
● Gauge Accuracy: Delphi's fuel pumps precisely match OE guidelines for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps reinstate rapid pressure performance and uphold system integrity, delivering improved pumping with lessened energy requirements, while their decreased current draw barely affects the vehicle's electrical system.
● OE-design connector: Exceptional performance is the essence of the OE-design of the connector and body harness.
● Validated Vehicle Fit: Delphi's validated parts are carefully chosen and tested to ensure a seamless integration with your vehicle.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2606M - CARQUEST, AIRTEX
PFS1101 - MOTORCRAFT
CV6Z9H307L, CV6Z 9H307-L, CV6Z-9H307L - FORD
PFS1097, PFS-1097 - MOTORCRAFT
PFS939, PFS-939 - MOTORCRAFT
P76897M - CARTER
GV6Z9H307A, GV6Z 9H307-A - FORD
CV6Z9H307E, CV6Z 9H307-E, CV6Z-9H307E - FORD
FG1635 - DELPHI
SP2526M - SPECTRA PREMIUM
CV6Z9H307J, CV6Z 9H307-J - FORD
66096 - BOSCH
CFG1635 - AUTOZONE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Ford
| 2013 - 2016 | Ford | Escape |
| 2017 - 2019 | Ford | Escape |
