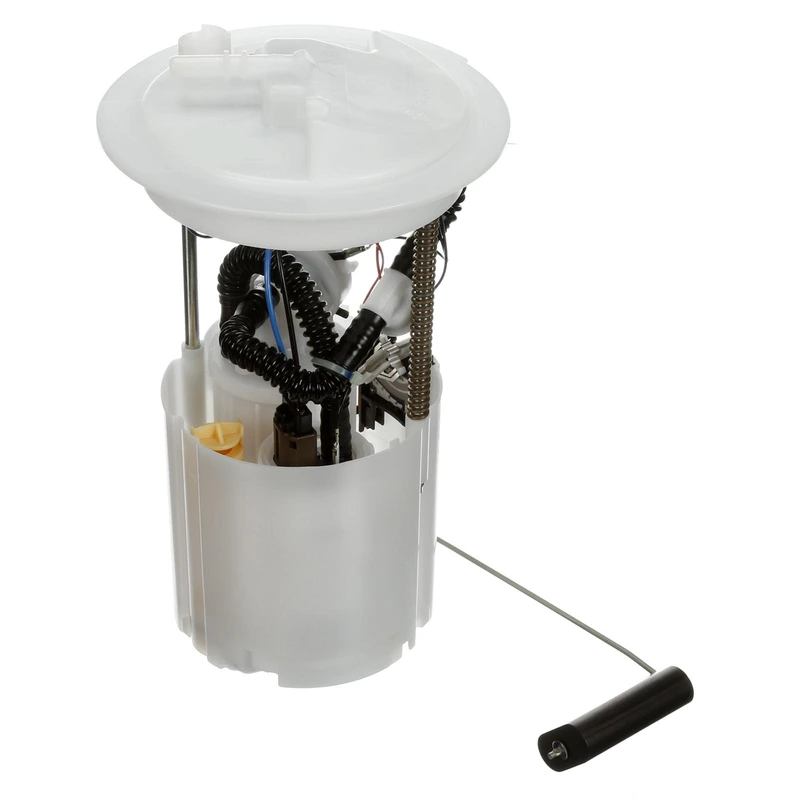

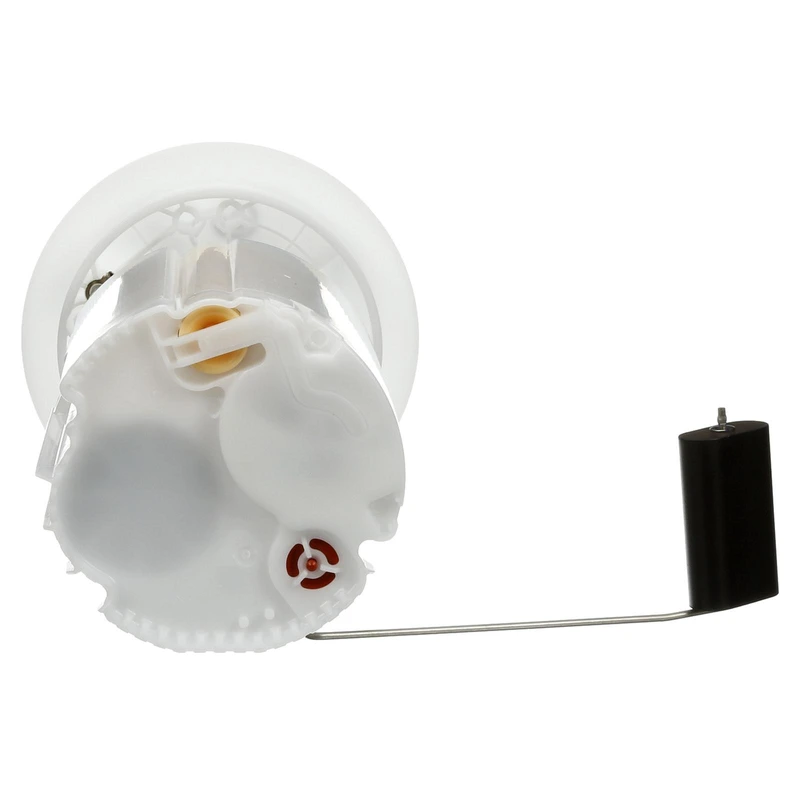

Fuel Pump Module Assembly - Delphi FG1629
Part # FG1629
Item # 1001VNWU
$490.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 9
- Average Flow Rating (gph)
- 21
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Rectangle
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 90
- Minimum Pressure (PSI)
- 87
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 204
- Resistance Ohms Full (Ohms)
- 10
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 6
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Discover the convenience of free shipping and the peace of mind of our 3-year exclusive guarantee on your Delphi fuel pump.
● Diverse options: Invest in the Delphi fuel pump and enjoy the convenience of its full suite of premium accessories, from the fuel sending unit to the fuel filter and regulator.
● Gauge Accuracy: Delphi's fuel pumps precisely match OE specifications for empty float height and float retention, delivering accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps restore rapid pressure performance and sustain system integrity, offering enhanced pumping with reduced energy consumption, while their reduced current draw minimally affects the vehicle's electrical system.
● OE-design connector: Exceptional performance is the core attribute of the OE-design connector and body harness.
● Validated Vehicle Fit: Delphi's validated parts are meticulously matched to your vehicle's requirements through their thorough testing and verification.
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Discover the convenience of free shipping and the peace of mind of our 3-year exclusive guarantee on your Delphi fuel pump.
● Diverse options: Invest in the Delphi fuel pump and enjoy the convenience of its full suite of premium accessories, from the fuel sending unit to the fuel filter and regulator.
● Gauge Accuracy: Delphi's fuel pumps precisely match OE specifications for empty float height and float retention, delivering accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps restore rapid pressure performance and sustain system integrity, offering enhanced pumping with reduced energy consumption, while their reduced current draw minimally affects the vehicle's electrical system.
● OE-design connector: Exceptional performance is the core attribute of the OE-design connector and body harness.
● Validated Vehicle Fit: Delphi's validated parts are meticulously matched to your vehicle's requirements through their thorough testing and verification.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A46527 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
SP8683M - SPECTRA PREMIUM
E8683M - AIRTEX
CFG1629 - AUTOZONE
69954 - BOSCH
31261425 - VOLVO
312614250, 31261425-0 - VOLVO
FG1629 - DELPHI
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Volvo
| 2004 - 2010 | Volvo | S40 |
| 2005 - 2010 | Volvo | V50 |
