Delphi

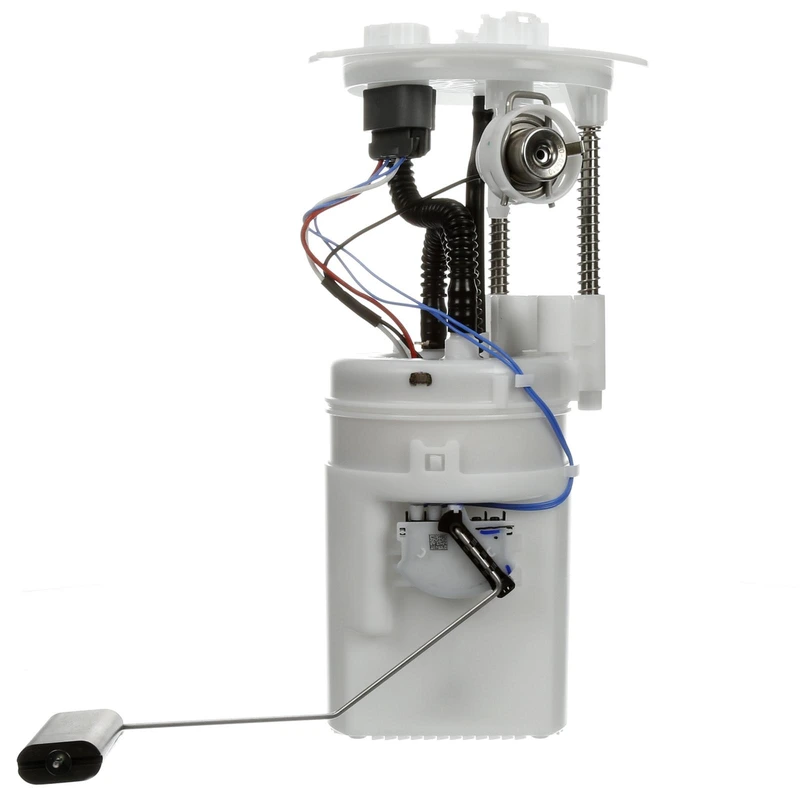

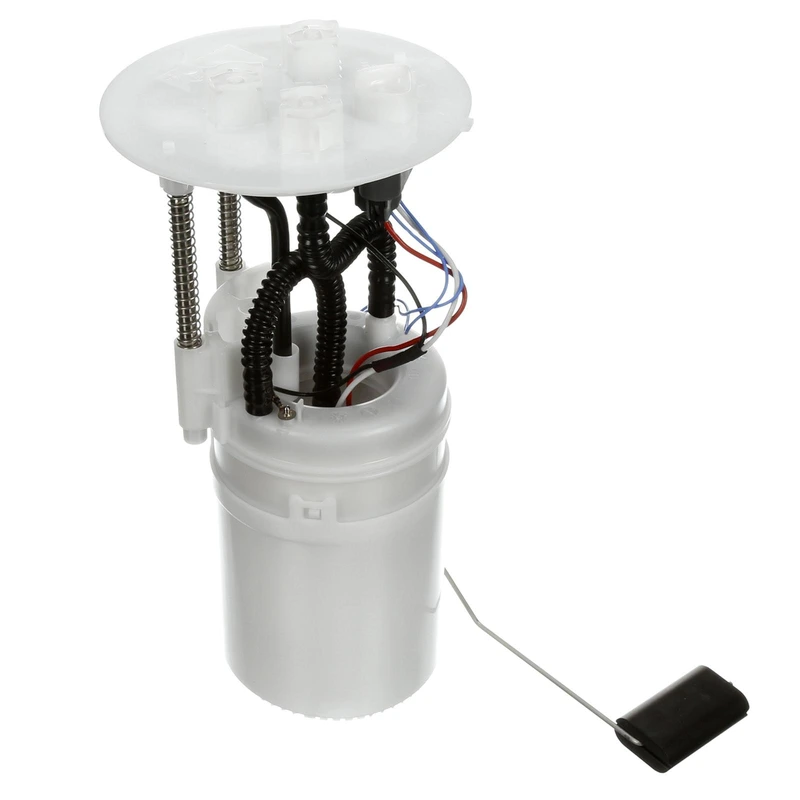

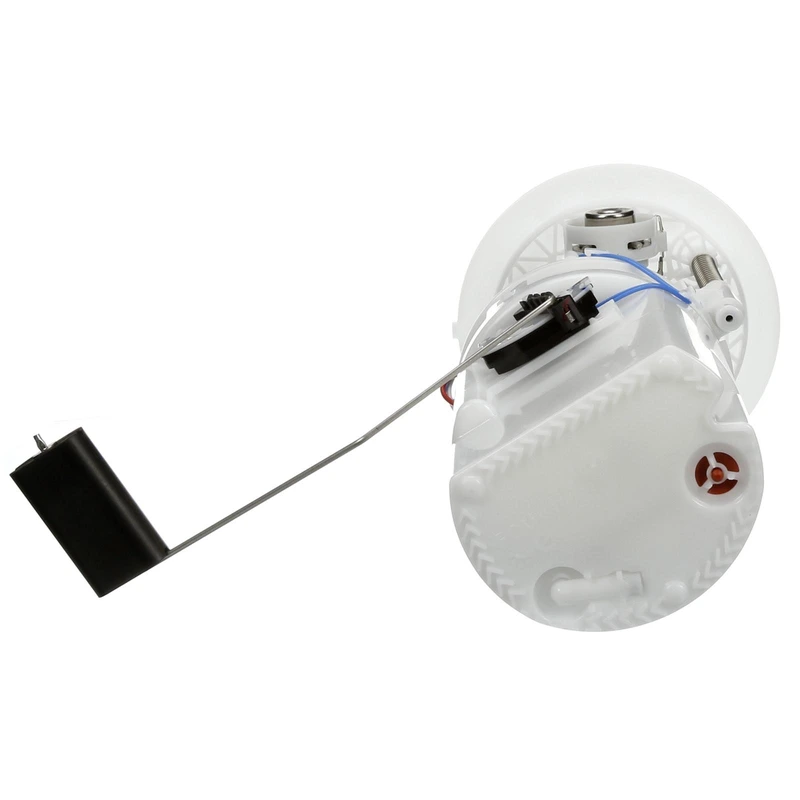

Fuel Pump Module Assembly - Delphi FG1624

Part # FG1624
Item # 1001VP2L
$923.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
15
Average Flow Rating (gph)
44
Connector Gender
Female
Connector Quantity
1
Connector Shape
Trapezoid
Fuel Filter Included
Yes
Fuel Type
Flex
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
49
Minimum Pressure (PSI)
58
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.313
Outlet Quantity
2
Outlet Type
Push In
Package Contents
Fuel Pump Module Assembly with Float Arm, Instruction Sheet
Pressure Sensor included
No
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
509
Resistance Ohms Full (Ohms)
115
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all
About this item
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pump buyers can count on free delivery and up to 3 years of warranty coverage.
● Abundant attachments: Complement your Delphi fuel pump with our complete range of top-tier accessories, spanning the fuel sending unit, fuel filter, and regulator.
● Gauge Accuracy: Delphi's fuel pumps impeccably match OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps restore rapid pressure performance and sustain system integrity, delivering improved pumping with lessened energy consumption, while their reduced current draw minimally affects the vehicle's electrical system.
● OE-design connector: Exceptional performance is the defining characteristic of the OE-design connector and body harness.
● Validated Vehicle Fit: Delphi's validated parts are meticulously chosen to seamlessly integrate with your vehicle.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30506 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
833200C040, 83320-0C040 - TOYOTA
P77054M - CARTER
DFG1624 - AUTOZONE
E9199M - AIRTEX
SP9175M - SPECTRA PREMIUM
770200C120, 77020-0C120 - TOYOTA
FG1624 - DELPHI

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (17)vehicles
All
Toyota
2012 - 2012ToyotaTundra
2012 - 2012ToyotaTundra
2012 - 2012ToyotaTundra
2012 - 2013ToyotaSequoia
2012 - 2013ToyotaSequoia
2012 - 2013ToyotaSequoia
2013 - 2013ToyotaTundra
2014 - 2016ToyotaSequoia
2014 - 2016ToyotaSequoia
2014 - 2016ToyotaSequoia
2014 - 2017ToyotaTundra
2017 - 2018ToyotaSequoia
2018 - 2018ToyotaTundra
2018 - 2018ToyotaTundra
2018 - 2018ToyotaTundra
2018 - 2018ToyotaTundra
2018 - 2019ToyotaTundra
