Delphi

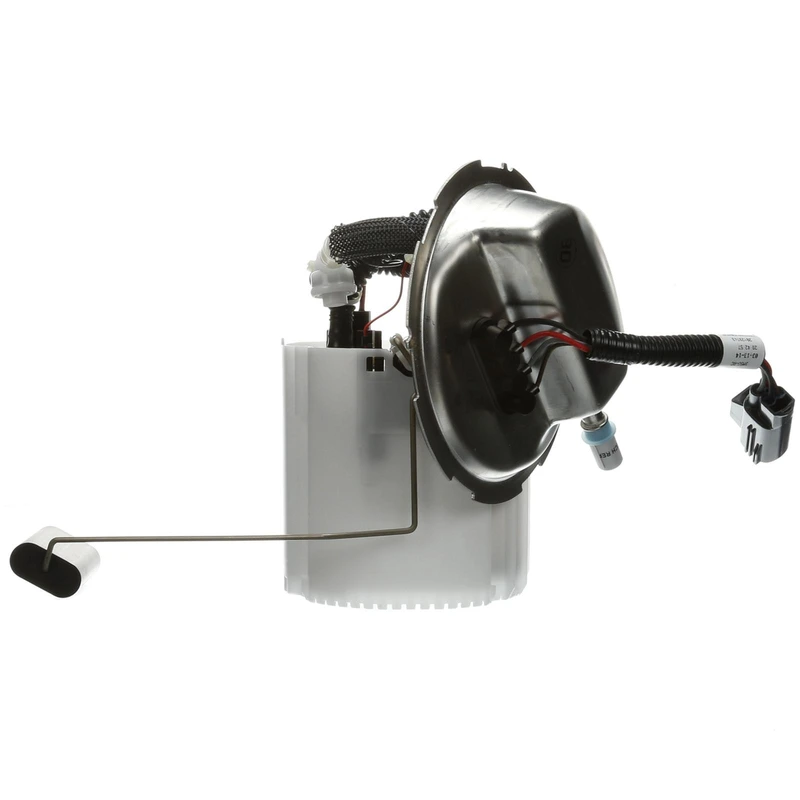

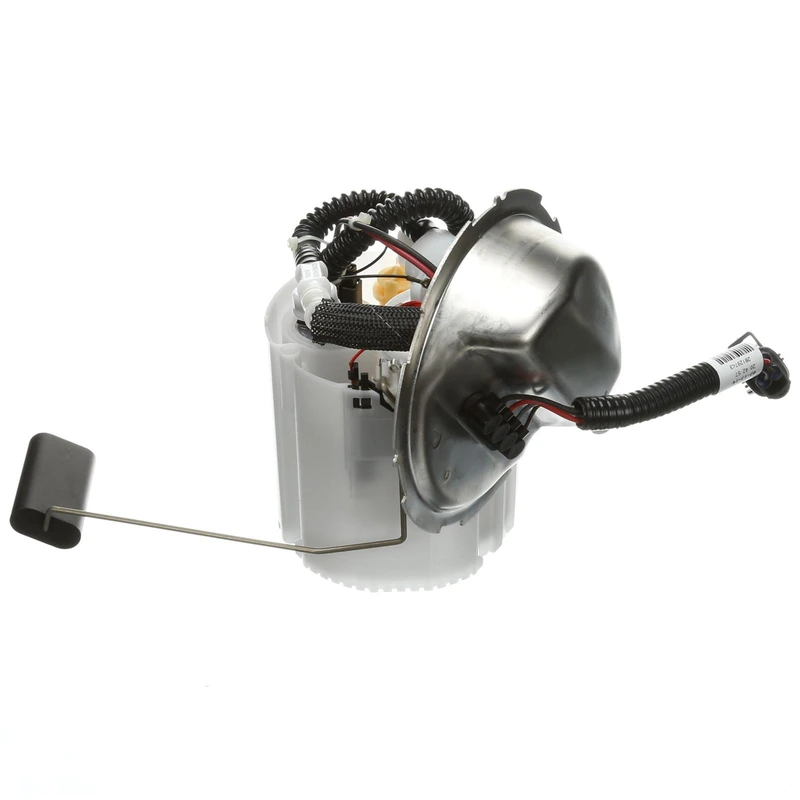

Fuel Pump Module Assembly - Delphi FG1600

Part # FG1600
Item # 1001VQVG
$655.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
9
Average Flow Rating (gph)
34
Connector Gender
Female
Connector Quantity
1
Connector Shape
Rectangle
Fuel Filter Included
No
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
95
Minimum Pressure (PSI)
84
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.375
Outlet Quantity
1
Outlet Type
Quick Connect
Package Contents
Fuel Pump Module Assembly with Float Arm, Instruction Sheet
Pressure Sensor included
No
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
203
Resistance Ohms Full (Ohms)
10
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all

About this item
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Discover the convenience of free delivery and the peace of mind of our 3-year exclusive guarantee on your Delphi fuel pump.
● Diverse options: Invest in the Delphi fuel pump and gain access to its complete lineup of top-tier accessories, such as the fuel sending unit and regulator.
● Gauge Accuracy: Delphi's fuel pumps precisely adhere to OE requirements for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps revive rapid pressure performance and uphold system integrity, providing superior pumping with diminished energy usage, while their lowered current draw has little impact on the vehicle's electrical system.
● OE-design connector: Exceptional performance is the hallmark of the OE-design connector and body harness design.
● Validated Vehicle Fit: Delphi's validated parts are carefully chosen to ensure a secure, seamless fit.

Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
FG1600 - DELPHI
31261424 - VOLVO
E9045M - AIRTEX
SP9056M - SPECTRA PREMIUM
312614240, 31261424-0 - VOLVO
69391 - BOSCH
CFG1600 - AUTOZONE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (11)vehicles
All
Volvo
2004 - 2004VolvoS40
2004 - 2004VolvoS40
2005 - 2006VolvoS40
2005 - 2006VolvoV50
2005 - 2006VolvoV50
2007 - 2008VolvoV50
2007 - 2010VolvoS40
2007 - 2011VolvoS40
2009 - 2010VolvoV50
2010 - 2011VolvoS40
2011 - 2011VolvoV50
