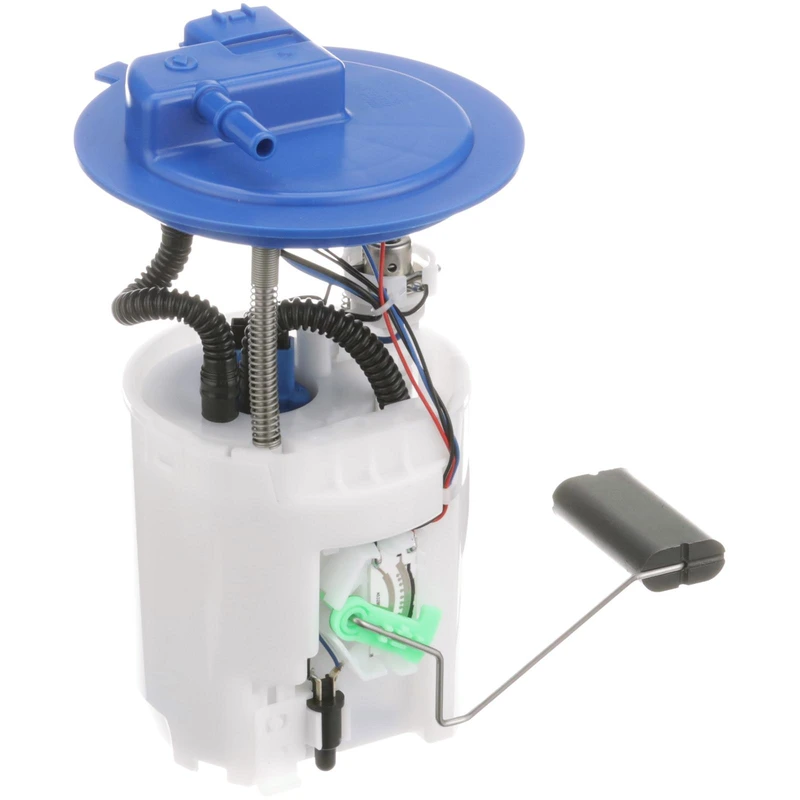

Fuel Pump Module Assembly - Delphi FG1597
Part # FG1597
Item # 1001VP9T
$262.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 60
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Rectangle
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 95
- Minimum Pressure (PSI)
- 73
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents

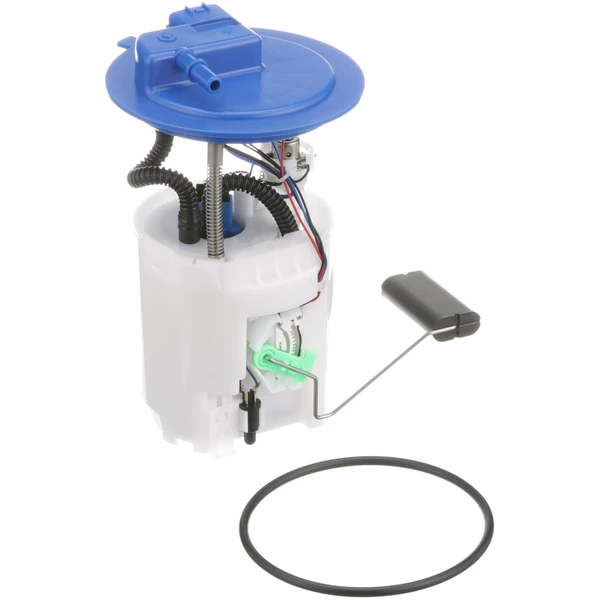

- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 283
- Resistance Ohms Full (Ohms)
- 50
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 5
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pump buyers gain the perks of complimentary shipping and a 3-year exclusive warranty.
● Abundant attachments: Our Delphi fuel pump offers a complete lineup of top-tier accessories, including the fuel sending unit, fuel filter, and regulator.
● Gauge Accuracy: Delphi's fuel pumps accurately meet OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps revive rapid pressure performance and uphold system integrity, delivering improved pumping with reduced energy usage, while their lowered current draw has little impact on the vehicle's electrical system.
● OE-design connector: Exceptional performance is the result of the OE-design connector and body harness.
● Validated Vehicle Fit: Delphi's validated parts are meticulously matched to your specific vehicle.
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pump buyers gain the perks of complimentary shipping and a 3-year exclusive warranty.
● Abundant attachments: Our Delphi fuel pump offers a complete lineup of top-tier accessories, including the fuel sending unit, fuel filter, and regulator.
● Gauge Accuracy: Delphi's fuel pumps accurately meet OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps revive rapid pressure performance and uphold system integrity, delivering improved pumping with reduced energy usage, while their lowered current draw has little impact on the vehicle's electrical system.
● OE-design connector: Exceptional performance is the result of the OE-design connector and body harness.
● Validated Vehicle Fit: Delphi's validated parts are meticulously matched to your specific vehicle.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A25517 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
FG1597 - DELPHI
CFG1597 - AUTOZONE
170401KM0B, 17040-1KM0B - NISSAN
170401KM0A, 17040-1KM0A - NISSAN
E9127M - AIRTEX
SP4096M - SPECTRA PREMIUM
P77105M - CARTER
25060-1KM0A
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Nissan
| 2011 - 2017 | Nissan | Juke |
| 2017 - 2019 | Nissan | Sentra |
