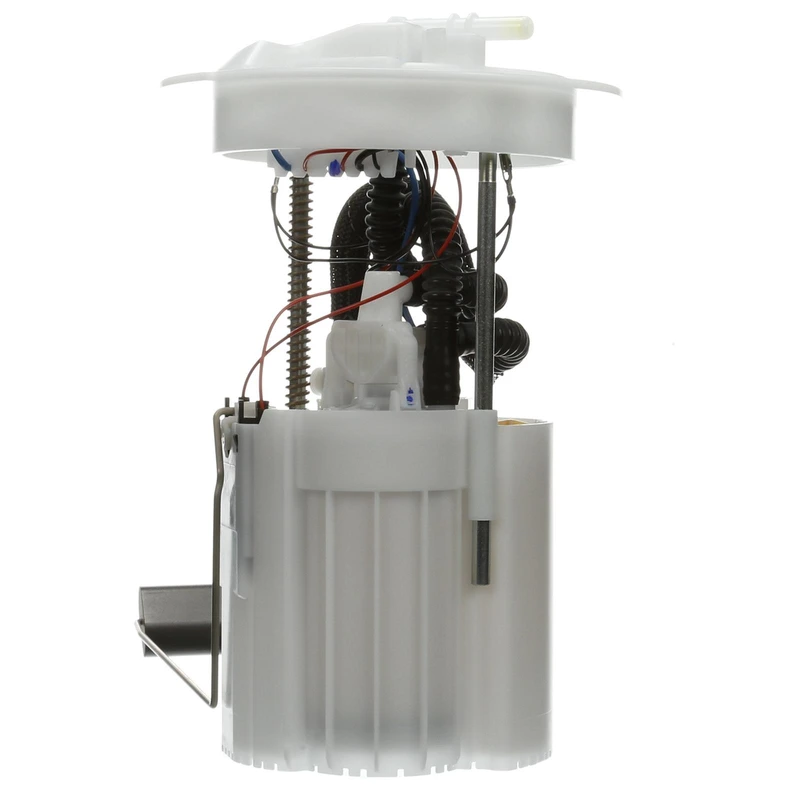

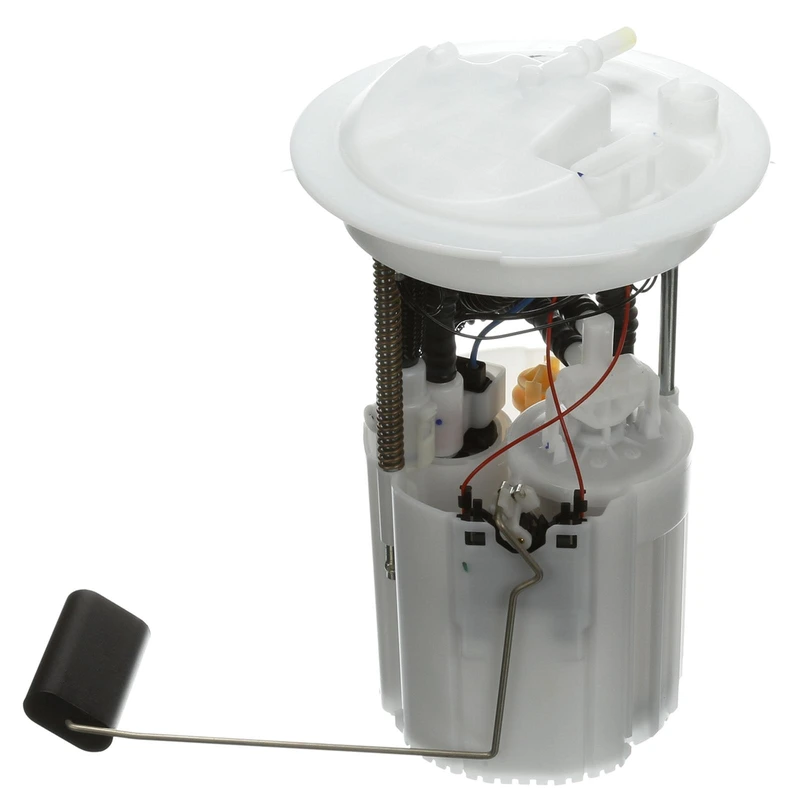

Fuel Pump Module Assembly - Delphi FG1594
Part # FG1594
Item # 1001VRA5
$723.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 32
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Rectangle
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 105
- Minimum Pressure (PSI)
- 99
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Module, (2) tank seals, inst sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 200
- Resistance Ohms Full (Ohms)
- 8
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 6
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pump buyers gain the perks of complimentary shipping and a 3-year exclusive warranty.
● Varied accessories: Upgrade to the Delphi fuel pump and enjoy the convenience of its comprehensive suite of premium accessories, from the fuel sending unit to the fuel filter and regulator.
● Gauge Accuracy: Delphi's fuel pumps consistently adhere to OE standards for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps restore fast pressure performance and preserve system integrity, offering enhanced pumping with lessened energy consumption, while their decreased current draw minimally affects the vehicle's electrical system.
● OE-design connector: Exceptional performance is the result of the OE-design connector and body harness.
● Validated Vehicle Fit: Delphi's validated parts are meticulously matched to your specific vehicle.
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pump buyers gain the perks of complimentary shipping and a 3-year exclusive warranty.
● Varied accessories: Upgrade to the Delphi fuel pump and enjoy the convenience of its comprehensive suite of premium accessories, from the fuel sending unit to the fuel filter and regulator.
● Gauge Accuracy: Delphi's fuel pumps consistently adhere to OE standards for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps restore fast pressure performance and preserve system integrity, offering enhanced pumping with lessened energy consumption, while their decreased current draw minimally affects the vehicle's electrical system.
● OE-design connector: Exceptional performance is the result of the OE-design connector and body harness.
● Validated Vehicle Fit: Delphi's validated parts are meticulously matched to your specific vehicle.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E8850M - CARQUEST, AIRTEX
A25532 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
FG1594 - DELPHI
69388 - BOSCH
CFG1594 - AUTOZONE
30792729 - VOLVO
307927290, 30792729-0 - VOLVO
SP8850M - SPECTRA PREMIUM
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (8)vehicles
All
Volvo
| 2007 - 2008 | Volvo | V50 |
| 2007 - 2009 | Volvo | C70 |
| 2007 - 2011 | Volvo | S40 |
| 2008 - 2013 | Volvo | C30 |
| 2008 - 2013 | Volvo | C30 |
| 2010 - 2011 | Volvo | S40 |
| 2010 - 2013 | Volvo | C70 |
| 2011 - 2011 | Volvo | V50 |
