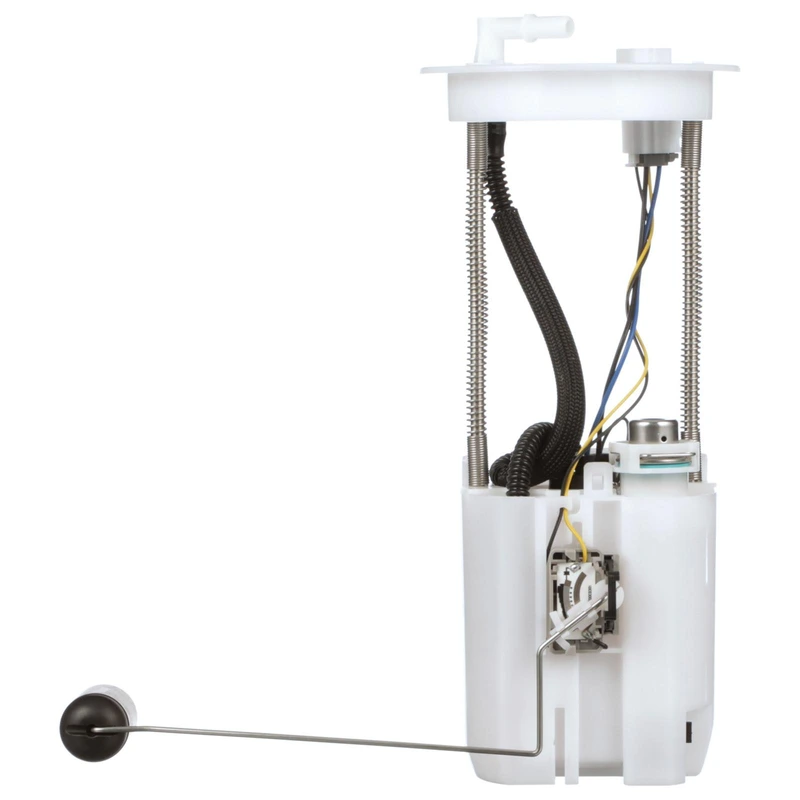

Fuel Pump Module Assembly - Delphi FG1586
Part # FG1586
Item # 1001VQCG
$722.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 50
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Square
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- Yes
- Maximum Pressure (PSI)
- 95
- Minimum Pressure (PSI)
- 59
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents

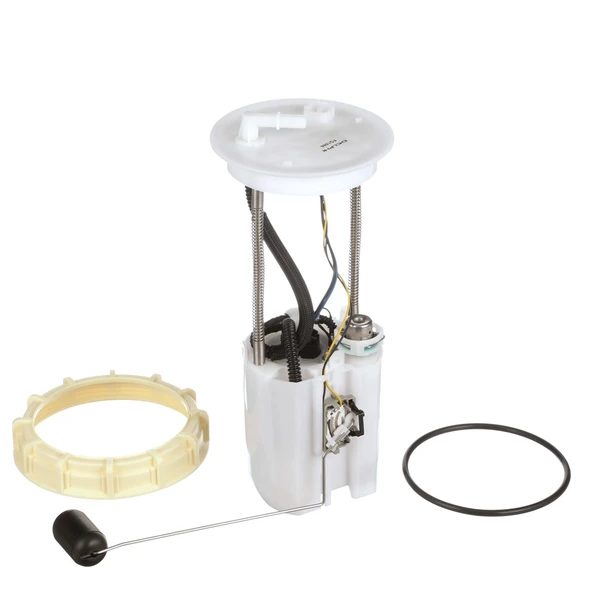

- Fuel Pump Module Assembly with Float Arm, Seal, Lock Ring, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 780
- Resistance Ohms Full (Ohms)
- 20
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pump customers benefit from our unbeatable combination of free shipping and 3-year warranty.
● Comprehensive accessories: Our Delphi fuel pump is equipped with a complete lineup of top-tier accessories, including the fuel sending unit, fuel filter, and regulator.
● Gauge Accuracy: Delphi's fuel pumps rigorously meet OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps revive rapid pressure performance and uphold system integrity, providing superior pumping with diminished energy usage, while their lowered current draw has little impact on the vehicle's electrical system.
● OE-design connector: Exceptional performance is inherent in the OE-design connector and body harness.
● Validated Vehicle Fit: Delphi's thorough validation ensures their parts will seamlessly integrate with your vehicle.
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pump customers benefit from our unbeatable combination of free shipping and 3-year warranty.
● Comprehensive accessories: Our Delphi fuel pump is equipped with a complete lineup of top-tier accessories, including the fuel sending unit, fuel filter, and regulator.
● Gauge Accuracy: Delphi's fuel pumps rigorously meet OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps revive rapid pressure performance and uphold system integrity, providing superior pumping with diminished energy usage, while their lowered current draw has little impact on the vehicle's electrical system.
● OE-design connector: Exceptional performance is inherent in the OE-design connector and body harness.
● Validated Vehicle Fit: Delphi's thorough validation ensures their parts will seamlessly integrate with your vehicle.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A46535 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
17045TX4A01, 17045-TX4-A01 - ACURA, HONDA
17045TX4A00, 17045-TX4-A00 - ACURA, HONDA
FG1586 - DELPHI
17047TX4A00, 17047-TX4-A00 - HONDA
SP8969M - SPECTRA PREMIUM
17052TX4000, 17052-TX4-000 - HONDA
E9188M - AIRTEX
P77029M - CARTER
DFG1586 - AUTOZONE
17045TX4A02, 17045-TX4-A02 - HONDA
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Acura
| 2013 - 2018 | Acura | RDX |
