Delphi

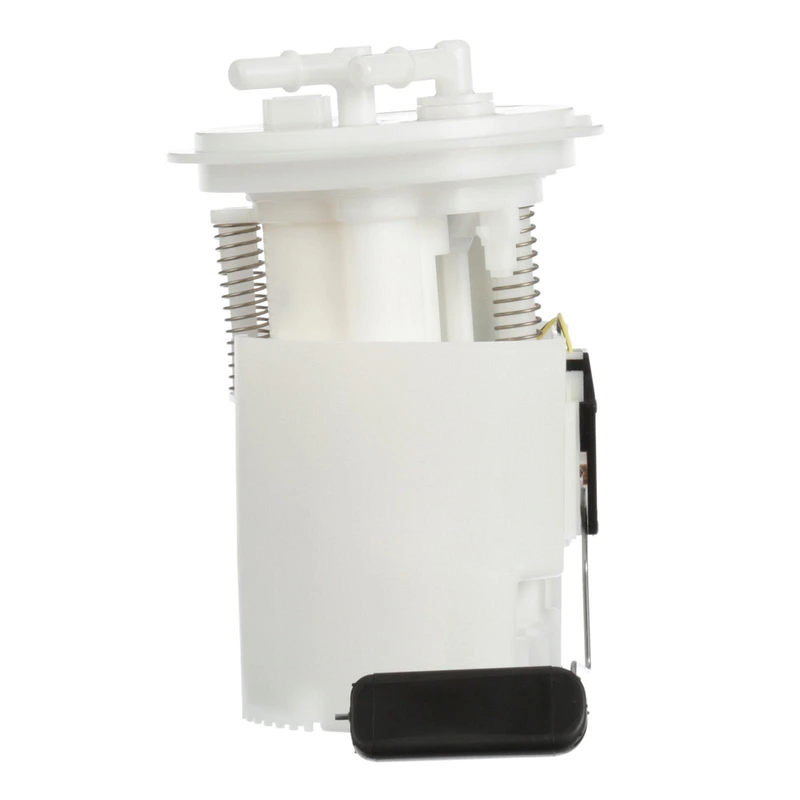

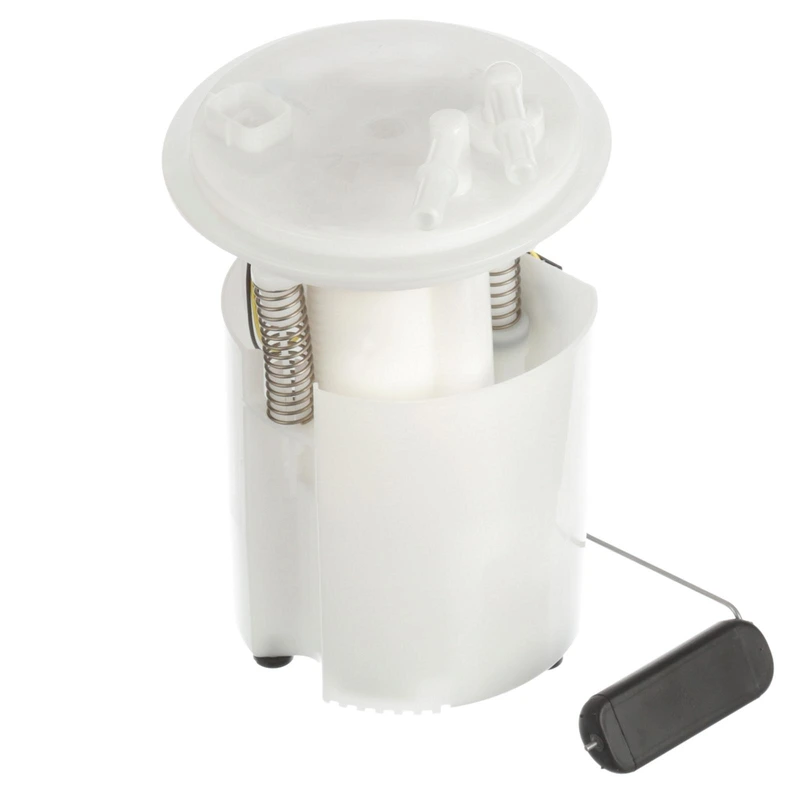

Fuel Pump Module Assembly - Delphi FG1566

Part # FG1566
Item # 1001VKRK
$336.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
7
Average Flow Rating (gph)
27
Connector Gender
Female
Connector Quantity
1
Connector Shape
Rectangle
Fuel Filter Included
Yes
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
80
Minimum Pressure (PSI)
51
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.375
Outlet Quantity
2
Outlet Type
Quick Connect
Package Contents
Fuel Pump Module Assembly with Float Arm, Instruction Sheet
Pressure Sensor included
No
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
139
Resistance Ohms Full (Ohms)
9
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
6
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all
About this item
Delphi, a leading global OE manufacturer with over a century of experience, constructs all its fuel pumps to the same stringent OE standards. By seamlessly integrating the latest OE technology advancements, Delphi OE replacement fuel pumps are guaranteed to deliver exceptional pumping capability and generate excellent pressure using less electrical power, making them a trusted choice for the world's premier automakers.
● Free shipping & Exclusive Guarantee: Delight in our complimentary shipping and exclusive 3-year guarantee on your Delphi fuel pump.
● Comprehensive accessories: From the fuel sending unit to the fuel filter and regulator, our Delphi fuel pump comes with a comprehensive selection of premium components.
● Gauge Accuracy: Delphi's fuel pumps precisely match OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps restore rapid pressure performance and maintain system integrity, delivering enhanced pumping efficiency with reduced energy consumption, while their lower current draw minimally impacts the vehicle's electrical system.
● OE-design connector: The OE-design connector and body harness deliver unparalleled performance.
● Validated Vehicle Fit: Delphi parts are thoroughly validated, tested, and matched to the correct vehicle application.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30503 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
E9211M - AIRTEX
FG1566 - DELPHI
P77050M - CARTER
42021AJ230, 42021 AJ230 - SUBARU
SP4086M - SPECTRA PREMIUM
CFG1566 - AUTOZONE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (13)vehicles
All
Subaru
2013 - 2013SubaruLegacy
2013 - 2013SubaruLegacy
2013 - 2013SubaruLegacy
2013 - 2013SubaruLegacy
2013 - 2013SubaruLegacy
2013 - 2013SubaruOutback
2013 - 2014SubaruOutback
2013 - 2014SubaruOutback
2013 - 2014SubaruOutback
2013 - 2014SubaruOutback
2014 - 2014SubaruLegacy
2014 - 2014SubaruOutback
2014 - 2014SubaruOutback
