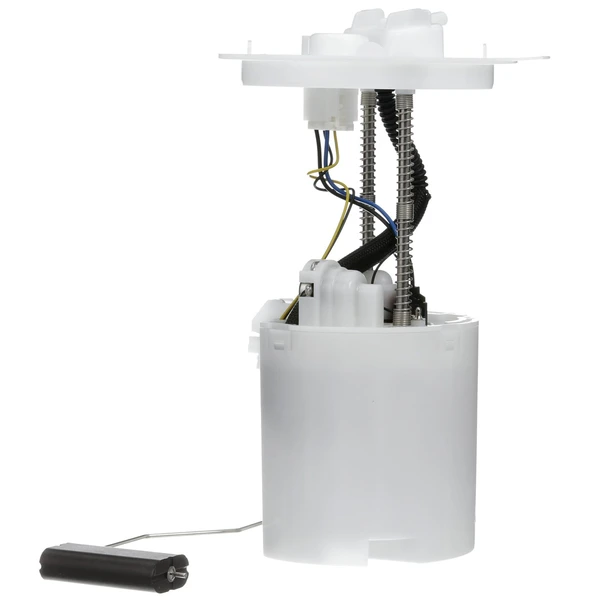

Fuel Pump Module Assembly - Delphi FG1530
Part # FG1530
Item # 1001VS3C
$169.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 9
- Average Flow Rating (gph)
- 30
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 55
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents

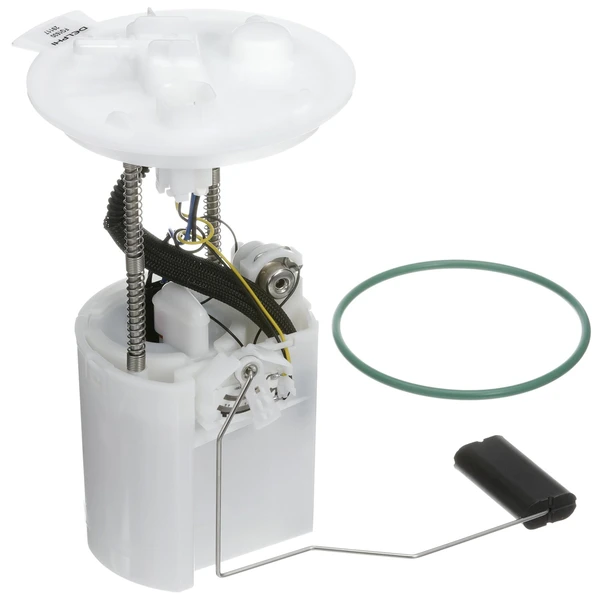

- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 464
- Resistance Ohms Full (Ohms)
- 50
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a leading OE manufacturer, Delphi produces fuel pumps that ensure optimal efficiency and durability. Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● OE-Quality Manufacturing: Delphi's OE fuel pumps are built to exacting standards, ensuring a smooth and efficient fuel delivery system that operates with minimal power consumption.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps are backed by free shipping and a warranty of up to 3 years, ensuring your purchase is well-protected.
● Gauge Accuracy: Delphi's fuel pumps are engineered to precisely replicate the OE specifications for empty float height and float retention, providing reliable fuel gauge accuracy.
● Optimized Fuel Delivery: Delphi fuel pumps optimize pumping efficiency, reduce energy consumption, and have a minimal effect on the vehicle's electrical system.
● Validated Vehicle Fit: Vehicle compatibility is ensured through Delphi's meticulous validation and testing of their parts.
As a leading OE manufacturer, Delphi produces fuel pumps that ensure optimal efficiency and durability. Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● OE-Quality Manufacturing: Delphi's OE fuel pumps are built to exacting standards, ensuring a smooth and efficient fuel delivery system that operates with minimal power consumption.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps are backed by free shipping and a warranty of up to 3 years, ensuring your purchase is well-protected.
● Gauge Accuracy: Delphi's fuel pumps are engineered to precisely replicate the OE specifications for empty float height and float retention, providing reliable fuel gauge accuracy.
● Optimized Fuel Delivery: Delphi fuel pumps optimize pumping efficiency, reduce energy consumption, and have a minimal effect on the vehicle's electrical system.
● Validated Vehicle Fit: Vehicle compatibility is ensured through Delphi's meticulous validation and testing of their parts.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2598M - CARQUEST, AIRTEX
CV6Z9H307P, CV6Z 9H307-P - FORD
P76897M - CARTER
SP2519M - SPECTRA PREMIUM
PFS1109, PFS-1109 - MOTORCRAFT
CV6Z9H307H, CV6Z 9H307-H, CV6Z-9H307H - FORD
CV6Z9H307K, CV6Z 9H307-K, CV6Z-9H307K - FORD
FG1530 - DELPHI
CFG1530 - AUTOZONE
GV6Z9H307D, GV6Z 9H307-D, GV6Z-9H307D - FORD
PFS1089, PFS-1089 - MOTORCRAFT
GV6Z9H307B, GV6Z 9H307-B, GV6Z-9H307B - FORD
PFS1197, PFS-1197 - MOTORCRAFT
66097 - BOSCH
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Ford
Lincoln
| 2013 - 2016 | Ford | Escape |
| 2013 - 2019 | Ford | Escape |
| 2017 - 2019 | Ford | Escape |
| 2015 - 2019 | Lincoln | MKC |
