Delphi

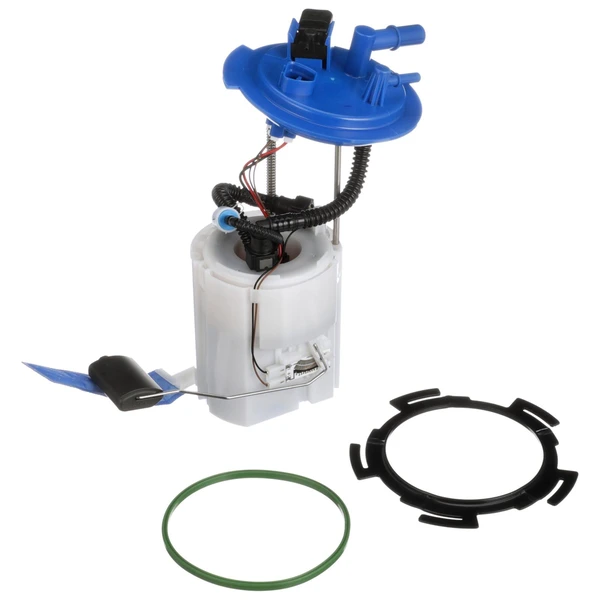

Fuel Pump Module Assembly - Delphi FG1527

Part # FG1527
Item # 1001VKQV
$448.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
8
Average Flow Rating (gph)
31
Connector Gender
Female
Connector Quantity
1
Connector Shape
Trapezoid
Fuel Filter Included
Yes
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
External
Lock Ring Included
Yes
Maximum Pressure (PSI)
75
Minimum Pressure (PSI)
65
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.313
Outlet Quantity
2
Outlet Type
Quick Connect
Package Contents
Fuel Pump Module Assembly with Float Arm, Instruction Sheet
Pressure Sensor included
Yes
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
200
Resistance Ohms Full (Ohms)
8
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all
About this item
Known for excellence, Delphi produces fuel pumps that comply with its OE standards, ensuring lasting durability and reliability. Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● OE-Quality Manufacturing: Delphi OE replacement fuel pumps are designed to provide reliable and consistent fuel delivery, ensuring optimal engine performance with efficient power consumption.
● Free shipping & Exclusive Guarantee: Enjoy free shipping and an exclusive warranty service of up to 17 years for your Delphi fuel pump.
● Gauge Accuracy: With Delphi's fuel pumps, you can trust that the fuel gauge readings will be precise, as they are designed to meet the OE standards for empty float height and float retention.
● Optimized Fuel Delivery: With Delphi fuel pumps, you'll enjoy enhanced pumping efficiency, reduced energy usage, and minimal impact on the vehicle's electrical system.
● Validated Vehicle Fit: Delphi's thorough validation process and precise vehicle matching guarantees a reliable fit for their parts.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A33138 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS, IMPORT DIRECT AIR AND FUEL
311103Q600, 31110-3Q600 - HYUNDAI, KIA
311103Q700, 31110-3Q700 - HYUNDAI, KIA
E9036M - CARQUEST, AIRTEX
E9120M - CARQUEST, AIRTEX
SP3037M - SPECTRA PREMIUM
FG1527 - DELPHI
CFG1527 - AUTOZONE
P76756M - CARTER

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (12)vehicles
All
Hyundai
Kia
2011 - 2011HyundaiSonata
2011 - 2011HyundaiSonata
2011 - 2011HyundaiSonata
2011 - 2011HyundaiSonata
2012 - 2013HyundaiSonata
2012 - 2014HyundaiSonata
2012 - 2014HyundaiSonata
2012 - 2014HyundaiSonata
2012 - 2014KiaOptima
2012 - 2014KiaOptima
2013 - 2014KiaOptima
2014 - 2014KiaOptima
