Fuel Pump Module Assembly - Delphi FG1394
Part # FG1394
Item # 1001VK9P
$335.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 6
- Average Flow Rating (gph)
- 22

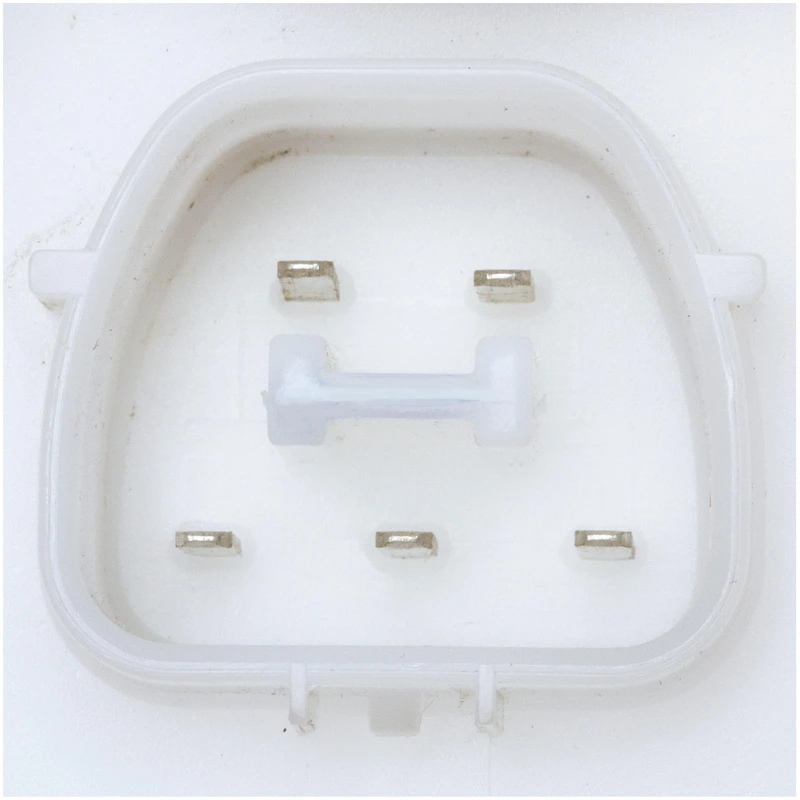

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- Yes
- Maximum Pressure (PSI)
- 43
- Minimum Pressure (PSI)
- 36
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents

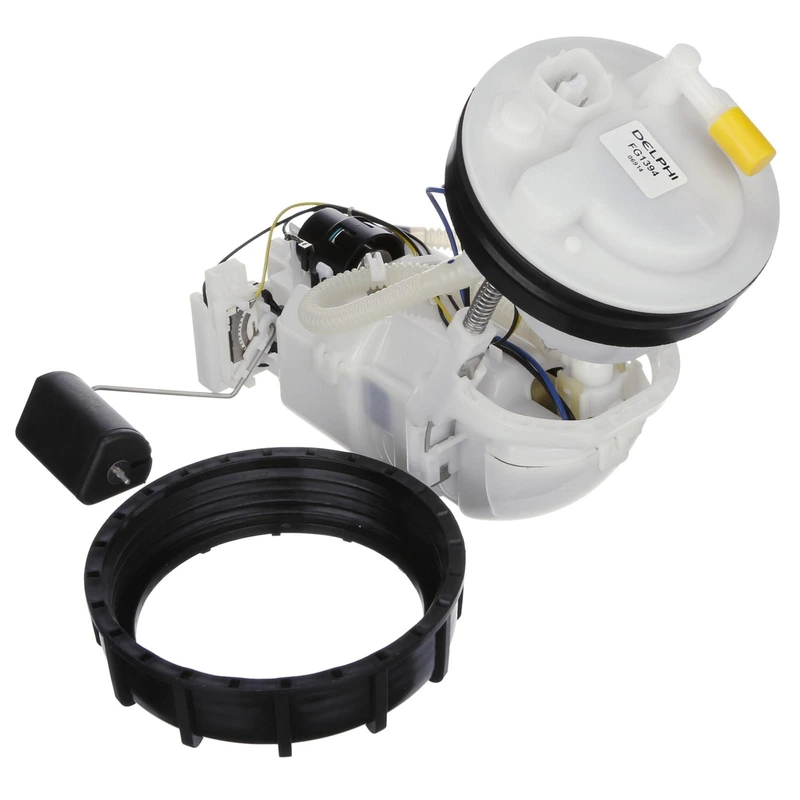

- Fuel Pump Module Assembly with Float Arm, Lock Ring, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 130
- Resistance Ohms Full (Ohms)
- 12
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 5
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, an Original Equipment Supplier with 100 years of experience, offers fuel pumps that deliver excellent pressure and efficiency.With a commitment to high-quality service, A-Premium guarantees that every Delphi fuel pump includes free shipping and a 4-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Large Volume Reservoir: Delphi fuel pumps feature an ample capacity tank, providing superior performance even during times of minimal fuel supply.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Always examine the fuel filter when replacing the fuel pump.
Delphi, an Original Equipment Supplier with 100 years of experience, offers fuel pumps that deliver excellent pressure and efficiency.With a commitment to high-quality service, A-Premium guarantees that every Delphi fuel pump includes free shipping and a 4-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Large Volume Reservoir: Delphi fuel pumps feature an ample capacity tank, providing superior performance even during times of minimal fuel supply.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Always examine the fuel filter when replacing the fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30218 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS, IMPORT DIRECT AIR AND FUEL
E8566M - CARQUEST, AIRTEX
17045S5AA31, 17045-S5A-A31 - ACURA, HONDA
69962 - BOSCH
69961 - BOSCH
SP1118 - SPECTRA PREMIUM
E8456 - AIRTEX
67903 - BOSCH
17040S5A930, 17040-S5A-930 - HONDA
9513000, 951-3000 - DENSO AUTO PARTS
FG1394 - DELPHI
67905 - BOSCH
9500114, 95-00114, 950-0114 - DENSO AUTO PARTS
17045S5AA00, 17045-S5A-A00 - HONDA
E8229, E-8229 - AIRTEX
P76015 - CARTER
P76215 - CARTER
E16014, E160.14 - IMPORT DIRECT
9510004, 951-0004 - DENSO AUTO PARTS
AFS0427P - EVO DRIVELINE
SP8011M - SPECTRA PREMIUM
RE0427P - EVO DRIVELINE
CFG1394 - AUTOZONE
AFS0925P - EVO DRIVELINE
SP1173 - SPECTRA PREMIUM
M2425073 - CARQUEST
P76528M - CARTER
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (10)vehicles
All
Acura
Honda
| 2001 - 2005 | Acura | EL |
| 2002 - 2005 | Honda | Civic |
| 2003 - 2005 | Honda | Civic |
| 2004 - 2005 | Honda | Civic |
| 2004 - 2005 | Honda | Civic |
| 2004 - 2005 | Honda | Civic |
| 2004 - 2005 | Honda | Civic |
| 2005 - 2005 | Honda | Civic |
| 2005 - 2005 | Honda | Civic |
| 2005 - 2005 | Honda | Civic |
