Delphi

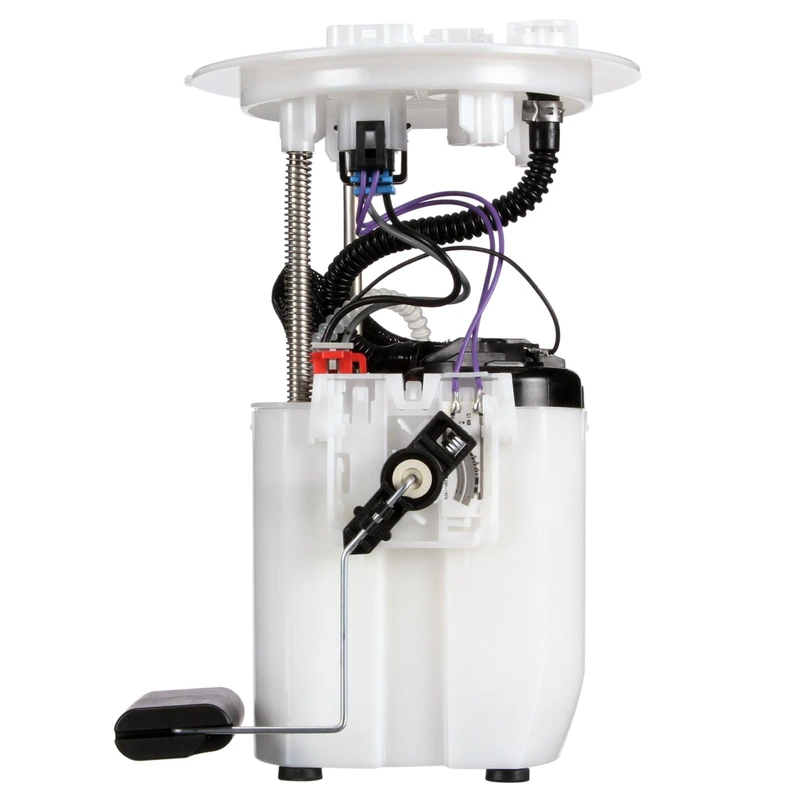

Fuel Pump Module Assembly - Delphi FG1381

Part # FG1381
Item # 1001VPQQ
$475.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
11
Average Flow Rating (gph)
20
Connector Gender
Female
Connector Quantity
1
Connector Shape
Trapezoid
Fuel Filter Included
Yes
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
80
Minimum Pressure (PSI)
51
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.313
Outlet Quantity
1
Outlet Type
Push In
Package Contents

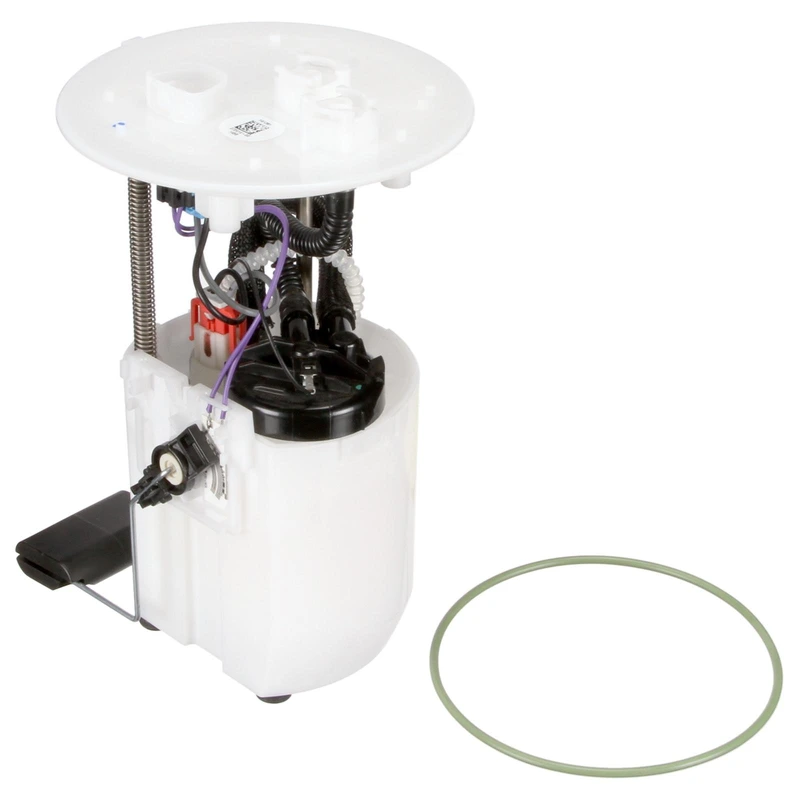

Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
Pressure Sensor included
No
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
110
Resistance Ohms Full (Ohms)
5
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all

Features

About this item
Delphi, an Original Equipment Supplier with 100 years of experience, offers fuel pumps that deliver excellent pressure and efficiency.With a commitment to high-quality service, A-Premium guarantees that every Delphi fuel pump includes free shipping and a 7-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Large Volume Reservoir: Delphi fuel pumps feature an ample capacity tank, providing superior performance even during times of minimal fuel supply.
● Comprehensive Late-Model Coverage: With a wide range of compatibility, Delphi fuel pumps are perfect for late-model applications.
● Replacement Tips: Always check the fuel filter as part of the fuel pump replacement process.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
232210A050, 23221-0A050 - LEXUS, TOYOTA
232170A050, 23217-0A050 - TOYOTA
E8513 - AIRTEX
P76369 - CARTER
9520090, 952-0090 - DENSO AUTO PARTS
E8841M - AIRTEX
7702008031, 77020-08031 - TOYOTA
CFG1381 - AUTOZONE
9510023, 951-0023 - DENSO AUTO PARTS
FG1381 - DELPHI
SP9021M - SPECTRA PREMIUM
E16307 - IMPORT DIRECT
69750 - BOSCH
SP1344 - SPECTRA PREMIUM

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Toyota
2004 - 2006ToyotaSienna
