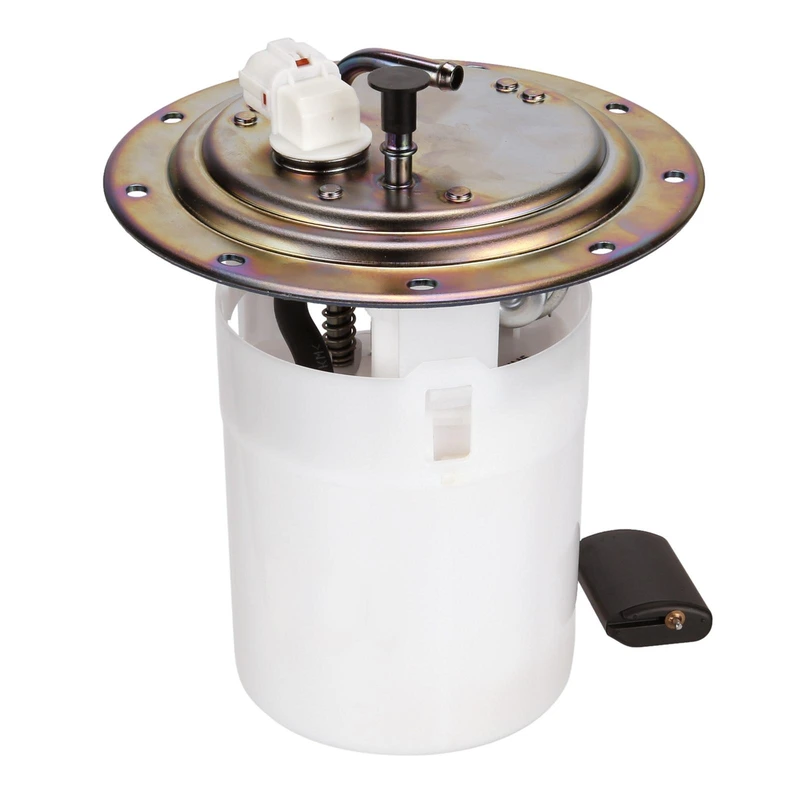

Fuel Pump Module Assembly - Delphi FG1345
Part # FG1345
Item # 1001VC8H
$276.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 5
- Average Flow Rating (gph)
- 50
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Rectangle
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 51
- Minimum Pressure (PSI)
- 51
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Quantity
- 1
- Outlet Type
- Hose
- Package Contents

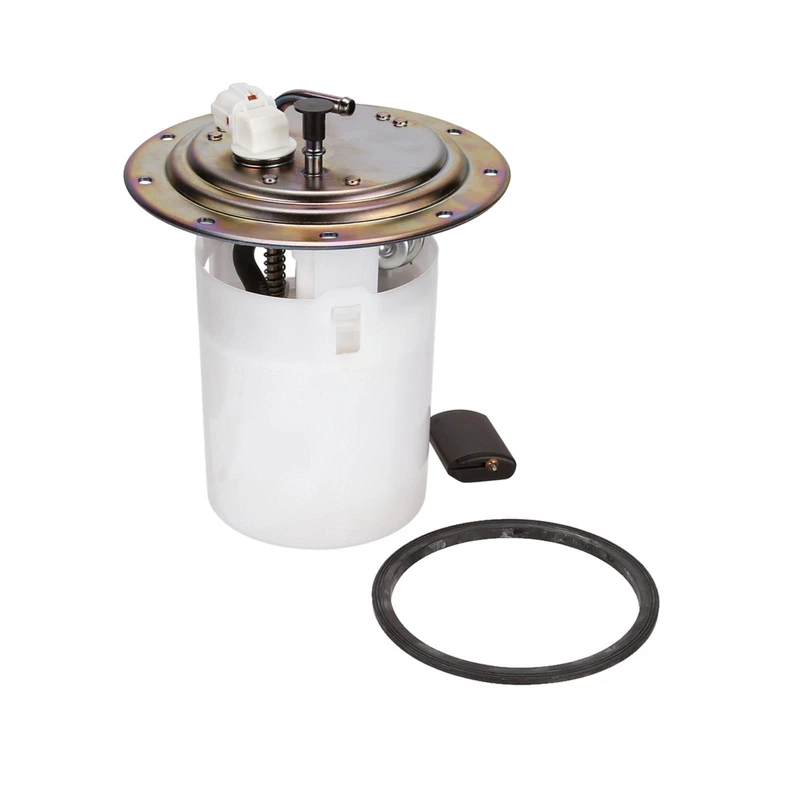

- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 200
- Resistance Ohms Full (Ohms)
- 10
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 5
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds strict OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● OE-Quality Manufacturing: Delphi's replacement fuel pumps are manufactured to original equipment specifications, providing a direct fit solution that maintains consistent fuel pressure and flow.
● Free shipping & Exclusive Guarantee: Take advantage of our free shipping and up to 3 years of warranty coverage when you choose a Delphi fuel pump for your vehicle.
● Gauge Accuracy: Delphi's fuel pumps are crafted to match the OE specifications for empty float height and float retention, ensuring your fuel gauge provides precise readings.
● Optimized Fuel Delivery: Delphi fuel pumps are designed to improve pumping efficiency, lower energy consumption, and have a negligible effect on the vehicle's electrical system.
● Validated Vehicle Fit: Delphi's commitment to validation and vehicle-specific testing results in a perfect fit for their parts.
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds strict OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● OE-Quality Manufacturing: Delphi's replacement fuel pumps are manufactured to original equipment specifications, providing a direct fit solution that maintains consistent fuel pressure and flow.
● Free shipping & Exclusive Guarantee: Take advantage of our free shipping and up to 3 years of warranty coverage when you choose a Delphi fuel pump for your vehicle.
● Gauge Accuracy: Delphi's fuel pumps are crafted to match the OE specifications for empty float height and float retention, ensuring your fuel gauge provides precise readings.
● Optimized Fuel Delivery: Delphi fuel pumps are designed to improve pumping efficiency, lower energy consumption, and have a negligible effect on the vehicle's electrical system.
● Validated Vehicle Fit: Delphi's commitment to validation and vehicle-specific testing results in a perfect fit for their parts.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30241 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS, IMPORT DIRECT AIR AND FUEL
E8736M - CARQUEST, AIRTEX
9510007, 951-0007 - DENSO AUTO PARTS
311102D531, 31110-2D531 - HYUNDAI
CFG1345 - AUTOZONE
SP1118 - SPECTRA PREMIUM
E8335 - AIRTEX
E16009 - IMPORT DIRECT
RE0894P - EVO DRIVELINE
FG1345 - DELPHI
P76406M - CARTER
AFS0894P - EVO DRIVELINE
SP3013M - SPECTRA PREMIUM
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Hyundai
| 2004 - 2006 | Hyundai | Elantra |
| 2005 - 2005 | Hyundai | Tiburon |
| 2006 - 2006 | Hyundai | Tiburon |
| 2007 - 2007 | Hyundai | Tiburon |
| 2008 - 2008 | Hyundai | Tiburon |
