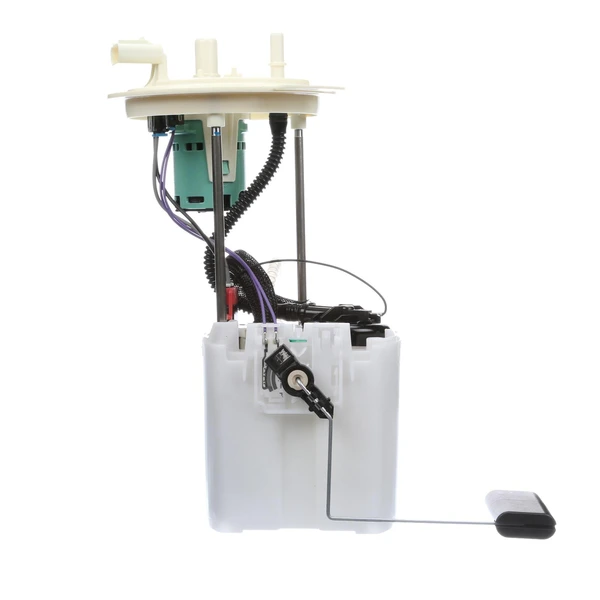

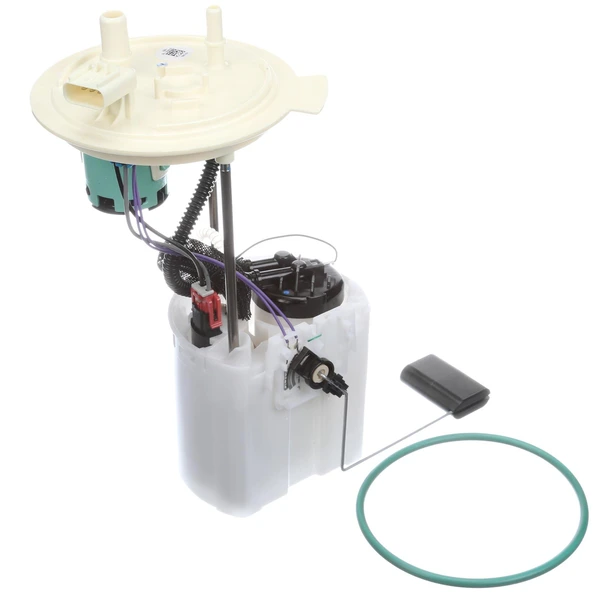

Fuel Pump Module Assembly - Delphi FG1323
Part # FG1323
Item # 1001VGRT
$207.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 11
- Average Flow Rating (gph)
- 37
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Rectangle
- Fuel Filter Included
- Yes
- Fuel Type
- Flex
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 78
- Minimum Pressure (PSI)
- 58
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 180
- Resistance Ohms Full (Ohms)
- 10
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 13
- Wire Harness Included
- No
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● OE-Quality Manufacturing: Delphi OE replacement fuel pumps are designed to provide reliable and consistent fuel delivery, ensuring optimal engine performance with efficient power consumption.
● Free shipping & Exclusive Guarantee: Enjoy free shipping and an exclusive warranty service of up to 7 years for your Delphi fuel pump.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are precisely matched to OE standards, guaranteeing accurate fuel gauge performance.
● Optimized Fuel Delivery: By restoring rapid pressure performance and maintaining system integrity, Delphi fuel pumps enhance pumping efficiency, reduce energy usage, and have a minimal impact on the electrical system.
● Validated Vehicle Fit: Rigorous validation and testing by Delphi guarantees that their parts will fit the intended vehicle application.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● OE-Quality Manufacturing: Delphi OE replacement fuel pumps are designed to provide reliable and consistent fuel delivery, ensuring optimal engine performance with efficient power consumption.
● Free shipping & Exclusive Guarantee: Enjoy free shipping and an exclusive warranty service of up to 7 years for your Delphi fuel pump.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are precisely matched to OE standards, guaranteeing accurate fuel gauge performance.
● Optimized Fuel Delivery: By restoring rapid pressure performance and maintaining system integrity, Delphi fuel pumps enhance pumping efficiency, reduce energy usage, and have a minimal impact on the electrical system.
● Validated Vehicle Fit: Rigorous validation and testing by Delphi guarantees that their parts will fit the intended vehicle application.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2572M - CARQUEST, AIRTEX
A42033 - PRECISION FUEL PUMPS, PRECISION FUEL
DFG1323 - AUTOZONE
P76464M - CARTER
FG1323 - DELPHI
AL1Z9H307B, AL1Z 9H307-B, AL1Z-9H307B - FORD
PS414, PS-414 - MOTORCRAFT
SP2390M - SPECTRA PREMIUM
AL1Z9A299A, AL1Z 9A299-A - FORD
PFS579, PFS-579 - MOTORCRAFT
AL1Z9H307C, AL1Z-9H307C, AL1Z 9H307-C - FORD
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Ford
Lincoln
| 2010 - 2010 | Ford | Expedition |
| 2010 - 2014 | Ford | Expedition |
| 2010 - 2014 | Ford | Expedition |
| 2010 - 2014 | Ford | Expedition |
| 2011 - 2014 | Ford | Expedition |
| 2010 - 2014 | Lincoln | Navigator |
