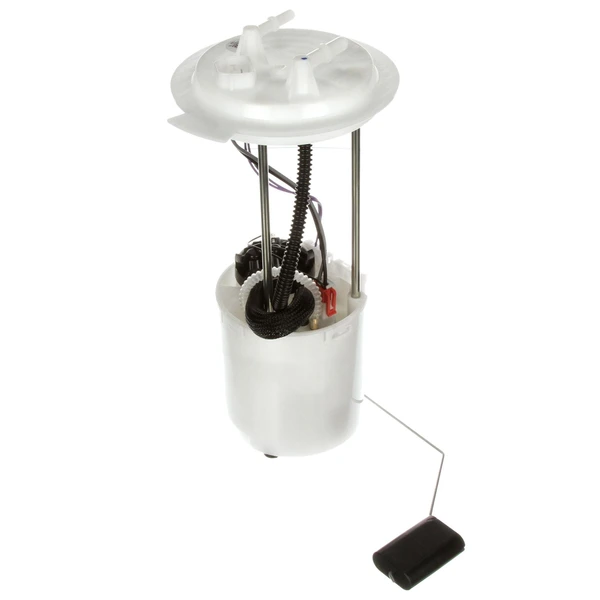

Fuel Pump Module Assembly - Delphi FG1317
Part # FG1317
Item # 1001VCT5
$223.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 11
- Average Flow Rating (gph)
- 20
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 65
- Minimum Pressure (PSI)
- 55
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents

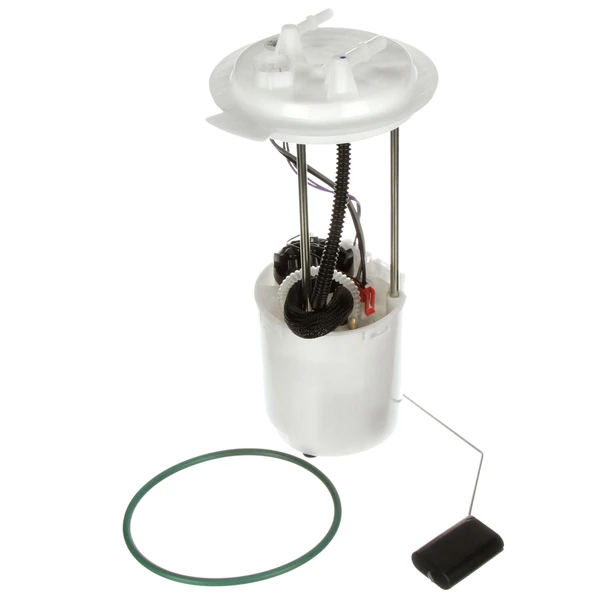

- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 180
- Resistance Ohms Full (Ohms)
- 10
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● OE-Quality Manufacturing: Delphi OE replacement fuel pumps are designed to provide reliable and consistent fuel delivery, ensuring optimal engine performance with efficient power consumption.
● Free shipping & Exclusive Guarantee: Enjoy free shipping and an exclusive warranty service of up to 3 years for your Delphi fuel pump.
● Gauge Accuracy: Delphi's fuel pumps are manufactured to the exact OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge performance.
● Optimized Fuel Delivery: Delphi's fuel pumps deliver rapid pressure performance and maintain system integrity, boosting pumping efficiency while lowering energy consumption and electrical demands.
● Validated Vehicle Fit: Delphi parts are extensively validated, tested, and tailored to the specific vehicle application.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● OE-Quality Manufacturing: Delphi OE replacement fuel pumps are designed to provide reliable and consistent fuel delivery, ensuring optimal engine performance with efficient power consumption.
● Free shipping & Exclusive Guarantee: Enjoy free shipping and an exclusive warranty service of up to 3 years for your Delphi fuel pump.
● Gauge Accuracy: Delphi's fuel pumps are manufactured to the exact OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge performance.
● Optimized Fuel Delivery: Delphi's fuel pumps deliver rapid pressure performance and maintain system integrity, boosting pumping efficiency while lowering energy consumption and electrical demands.
● Validated Vehicle Fit: Delphi parts are extensively validated, tested, and tailored to the specific vehicle application.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2529M - CARQUEST, AIRTEX
E2568M - CARQUEST, AIRTEX
E2524M - CARQUEST, AIRTEX
9M6Z9H307C, 9M6Z 9H307-C, 9M6Z-9H307C - FORD
ZZCB1335XB, ZZCB-13-35XB - MAZDA
66106 - BOSCH
SP2388M - SPECTRA PREMIUM
P76591M - CARTER
ZZCB1335X, ZZCB-13-35X - MAZDA
PFS554, PFS-554 - MOTORCRAFT
PFS532, PFS-532 - MOTORCRAFT
P76461M - CARTER
SP2391M - SPECTRA PREMIUM
DFG1317 - AUTOZONE
FG1317 - DELPHI
9M6Z9H307A, 9M6Z 9H307-A - FORD
9M6Z9H307B, 9M6Z 9H307-B - FORD
69373 - BOSCH
AL8Z9H307A, AL8Z 9H307-A, AL8Z-9H307A - FORD
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (13)vehicles
All
Ford
Mazda
Mercury
| 2009 - 2009 | Ford | Escape |
| 2009 - 2009 | Ford | Escape |
| 2010 - 2010 | Ford | Escape |
| 2010 - 2010 | Ford | Escape |
| 2010 - 2010 | Ford | Escape |
| 2011 - 2012 | Ford | Escape |
| 2011 - 2012 | Ford | Escape |
| 2011 - 2012 | Ford | Escape |
| 2009 - 2009 | Mazda | Tribute |
| 2009 - 2009 | Mercury | Mariner |
| 2010 - 2010 | Mercury | Mariner |
| 2010 - 2010 | Mercury | Mariner |
| 2011 - 2011 | Mercury | Mariner |
