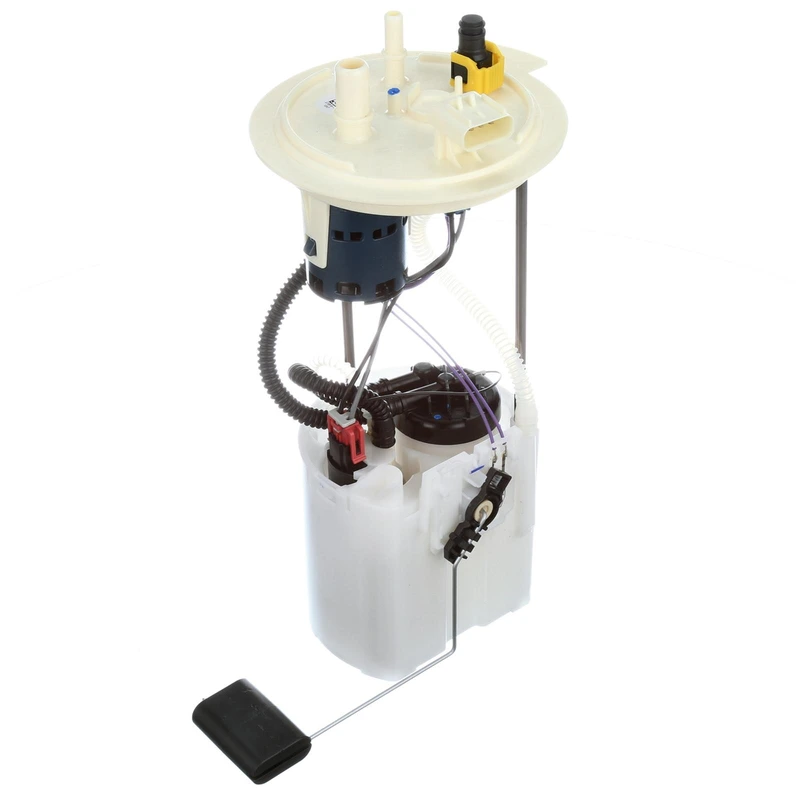

Fuel Pump Module Assembly - Delphi FG1314
Part # FG1314
Item # 1001VDKQ
$211.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 11
- Average Flow Rating (gph)
- 37
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Rectangle
- Fuel Filter Included
- Yes
- Fuel Type
- Flex
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 78
- Minimum Pressure (PSI)
- 51
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents

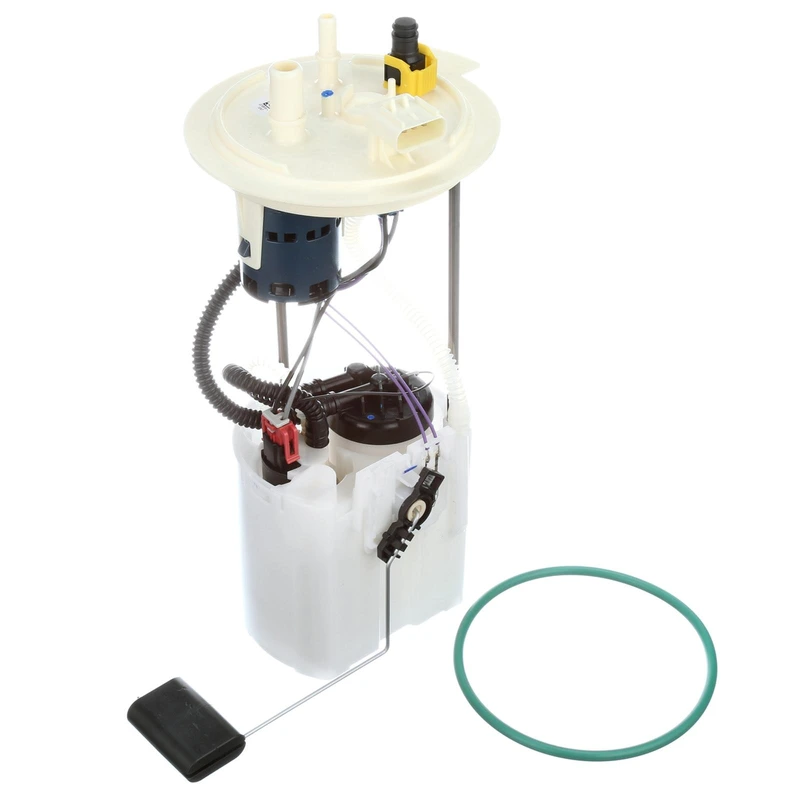

- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 180
- Resistance Ohms Full (Ohms)
- 10
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 13
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● OE-Quality Manufacturing: Delphi's replacement fuel pumps are manufactured to original equipment specifications, providing a direct fit solution that maintains consistent fuel pressure and flow.
● Free shipping & Exclusive Guarantee: Take advantage of our free shipping and up to 3 years of warranty coverage ● Gauge Accuracy: Delphi's fuel pumps are manufactured to the exact OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge performance.
● Optimized Fuel Delivery: With Delphi fuel pumps, you'll enjoy optimized pumping efficiency, decreased energy usage, and a minimal influence on the vehicle's electrical system.
● Validated Vehicle Fit: Delphi's commitment to validation and vehicle-specific testing results in a perfect fit for their parts.
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● OE-Quality Manufacturing: Delphi's replacement fuel pumps are manufactured to original equipment specifications, providing a direct fit solution that maintains consistent fuel pressure and flow.
● Free shipping & Exclusive Guarantee: Take advantage of our free shipping and up to 3 years of warranty coverage ● Gauge Accuracy: Delphi's fuel pumps are manufactured to the exact OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge performance.
● Optimized Fuel Delivery: With Delphi fuel pumps, you'll enjoy optimized pumping efficiency, decreased energy usage, and a minimal influence on the vehicle's electrical system.
● Validated Vehicle Fit: Delphi's commitment to validation and vehicle-specific testing results in a perfect fit for their parts.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2540M - CARQUEST, AIRTEX
DFG1314 - AUTOZONE
SP2497M - SPECTRA PREMIUM
FG1314 - DELPHI
P76459M - CARTER
9C2Z9H307D, 9C2Z-9H307D, 9C2Z 9H307-D - FORD
PFS480, PFS-480 - MOTORCRAFT
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (8)vehicles
All
Ford
| 2009 - 2009 | Ford | E-450 Super Duty |
| 2009 - 2010 | Ford | E-150 |
| 2009 - 2010 | Ford | E-150 |
| 2009 - 2010 | Ford | E-250 |
| 2009 - 2010 | Ford | E-250 |
| 2009 - 2010 | Ford | E-350 Super Duty |
| 2009 - 2010 | Ford | E-350 Super Duty |
| 2009 - 2010 | Ford | E-450 Super Duty |
