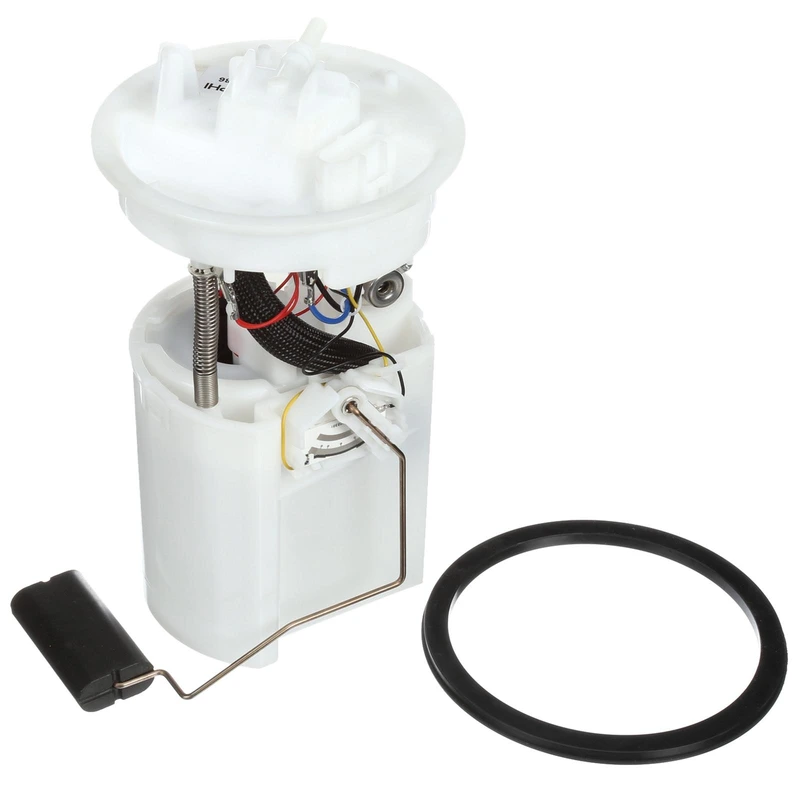

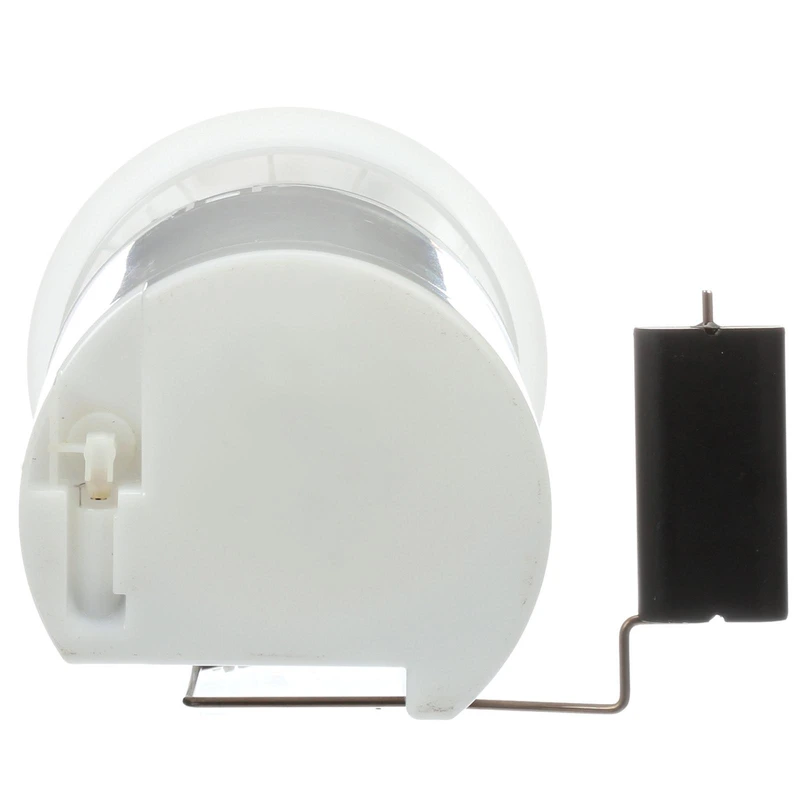

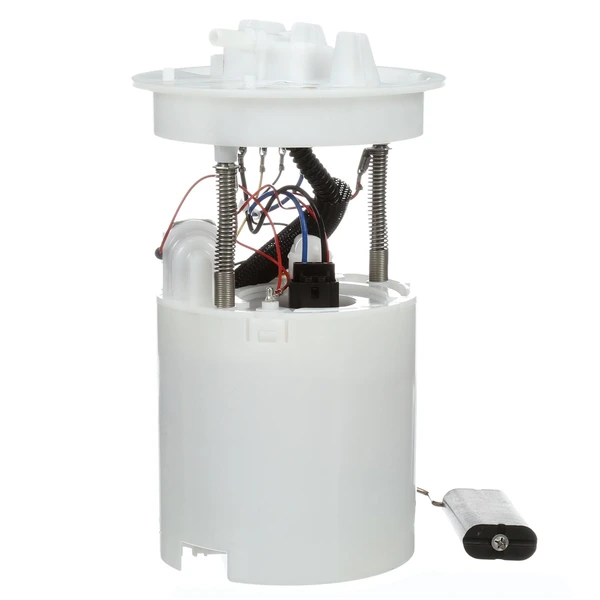

Fuel Pump Module Assembly - Delphi FG1286
Part # FG1286
Item # 1001VG7Q
$317.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 8
- Average Flow Rating (gph)
- 50
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Rectangle
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 94
- Minimum Pressure (PSI)
- 58
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 400
- Resistance Ohms Full (Ohms)
- 20
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, cementing Delphi's status as a favored choice among the world's leading automakers.
● OE-Quality Manufacturing: Delphi's OE fuel pumps are designed to deliver outstanding pumping ability and maintain excellent fuel pressure, ensuring optimal engine performance with efficient power consumption.
● Free shipping & Exclusive Guarantee: Simplify your purchase with free shipping and take advantage of the exclusive 3-year warranty on your Delphi fuel pump.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are carefully calibrated to OE standards, guaranteeing precise fuel gauge performance.
● Optimized Fuel Delivery: Delphi's fuel pumps deliver enhanced pumping efficiency, reduced energy usage, and a negligible effect on the vehicle's electrical system.
● Validated Vehicle Fit: Delphi's validation and testing protocols guarantee that their parts will fit the correct vehicle application.
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, cementing Delphi's status as a favored choice among the world's leading automakers.
● OE-Quality Manufacturing: Delphi's OE fuel pumps are designed to deliver outstanding pumping ability and maintain excellent fuel pressure, ensuring optimal engine performance with efficient power consumption.
● Free shipping & Exclusive Guarantee: Simplify your purchase with free shipping and take advantage of the exclusive 3-year warranty on your Delphi fuel pump.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are carefully calibrated to OE standards, guaranteeing precise fuel gauge performance.
● Optimized Fuel Delivery: Delphi's fuel pumps deliver enhanced pumping efficiency, reduced energy usage, and a negligible effect on the vehicle's electrical system.
● Validated Vehicle Fit: Delphi's validation and testing protocols guarantee that their parts will fit the correct vehicle application.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30193 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E9049M - CARQUEST, AIRTEX
FG1286 - DELPHI
LF3T1335XD, LF3T-13-35XD - MAZDA
SP4060M - SPECTRA PREMIUM
LF3T1335XB, LF3T-13-35XB - MAZDA
CFG1286 - AUTOZONE
P76882M - CARTER
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Mazda
| 2010 - 2012 | Mazda | 3 |
| 2010 - 2013 | Mazda | 3 |
| 2010 - 2013 | Mazda | 3 |
| 2010 - 2013 | Mazda | 3 |
| 2011 - 2011 | Mazda | 3 |
