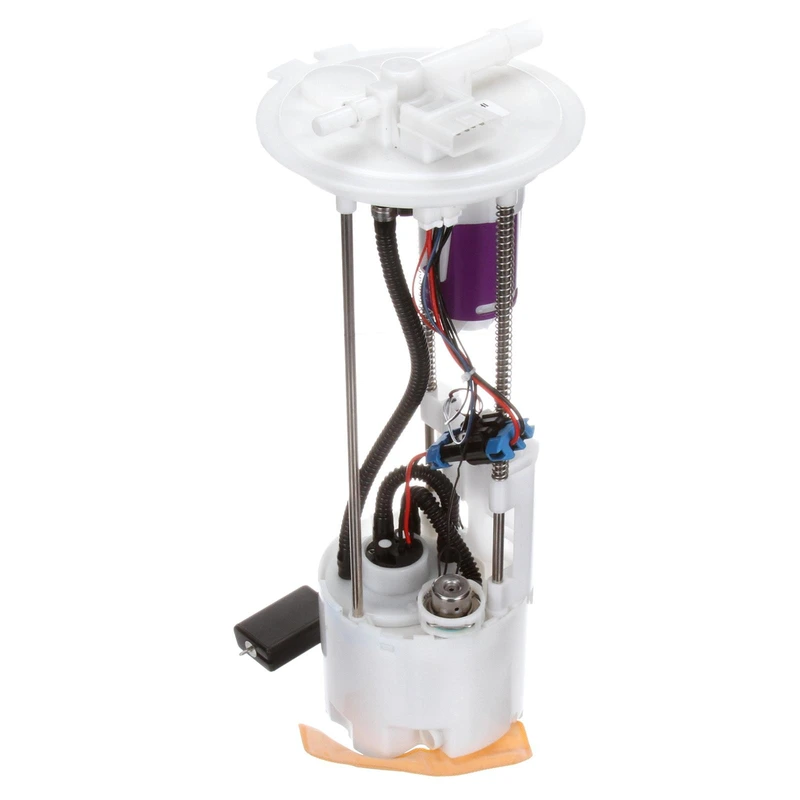

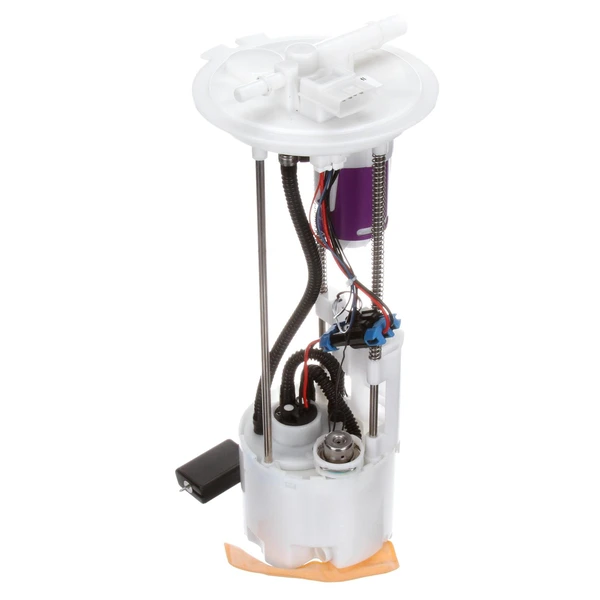

Delphi FG1277 Fuel Pump
Part # FG1277
Item # 1001VE0X
$275.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 30

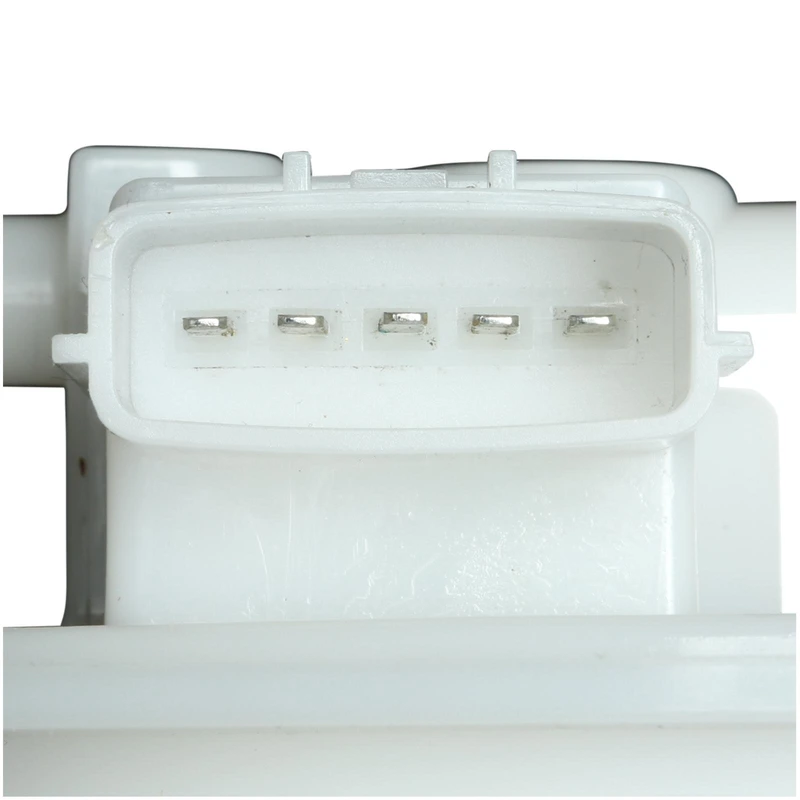

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Rectangle
- Fuel Filter Included
- Yes
- Fuel Type
- Flex
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 52
- Minimum Pressure (PSI)
- 51
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 82
- Resistance Ohms Full (Ohms)
- 5
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 5
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds rigorous OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● OE-Quality Manufacturing: Crafted with precision, Delphi's replacement fuel pumps are designed to maintain the intended fuel pressure and flow, optimizing engine performance while reducing electrical power demands.
● Free shipping & Exclusive Guarantee: Receive your Delphi fuel pump with free shipping and enjoy the assurance of up to 3 years of warranty service.
● Gauge Accuracy: Delphi's fuel pumps are engineered to meet the OE specifications for empty float height and float retention, delivering dependable fuel gauge accuracy.
● Optimized Fuel Delivery: Delphi's fuel pumps optimize pumping efficiency, decrease energy consumption, and have a minor influence on the vehicle's electrical system.
● Validated Vehicle Fit: Delphi's parts are thoroughly validated and matched to the correct vehicle to ensure a precise fit.
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds rigorous OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● OE-Quality Manufacturing: Crafted with precision, Delphi's replacement fuel pumps are designed to maintain the intended fuel pressure and flow, optimizing engine performance while reducing electrical power demands.
● Free shipping & Exclusive Guarantee: Receive your Delphi fuel pump with free shipping and enjoy the assurance of up to 3 years of warranty service.
● Gauge Accuracy: Delphi's fuel pumps are engineered to meet the OE specifications for empty float height and float retention, delivering dependable fuel gauge accuracy.
● Optimized Fuel Delivery: Delphi's fuel pumps optimize pumping efficiency, decrease energy consumption, and have a minor influence on the vehicle's electrical system.
● Validated Vehicle Fit: Delphi's parts are thoroughly validated and matched to the correct vehicle to ensure a precise fit.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E8595M - CARQUEST, PUROLATOR, AIRTEX, FACET
A30403 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS, IMPORT DIRECT AIR AND FUEL
A30350 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS, IMPORT DIRECT AIR AND FUEL
A30091 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS, IMPORT DIRECT AIR AND FUEL
E8862M - CARQUEST, AIRTEX
170407S20A, 17040-7S20A - INFINITI, NISSAN
E8788M - CARQUEST, AIRTEX
170407S00A, 17040-7S00A - INFINITI, NISSAN
17040ZQ60A, 17040-ZQ60A - INFINITI, NISSAN
17040ZQ60C, 17040-ZQ60C - INFINITI, NISSAN
170407S000, 17040-7S000 - INFINITI, NISSAN
17040ZH000, 17040-ZH000 - NISSAN
17040ZV60B, 17040-ZV60B - NISSAN
EFG1277 - AUTOZONE
69905 - BOSCH
SP4004M - SPECTRA PREMIUM
69908, 69 908 - BOSCH
M3480500 - CARQUEST
P76654M - CARTER
AFS0944S - EVO DRIVELINE
SP4021M - SPECTRA PREMIUM
17040ZQ60B, 17040-ZQ60B - NISSAN
SP4023M - SPECTRA PREMIUM
P76570M - CARTER
17040ZH00A, 17040-ZH00A - NISSAN
FG1277 - DELPHI
P76360M - CARTER
25060-ZQ60D
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
INFINITI
Nissan
| 2004 - 2010 | INFINITI | QX56 |
| 2004 - 2004 | Nissan | Pathfinder Armada |
| 2004 - 2015 | Nissan | TITAN |
| 2005 - 2015 | Nissan | Armada |
