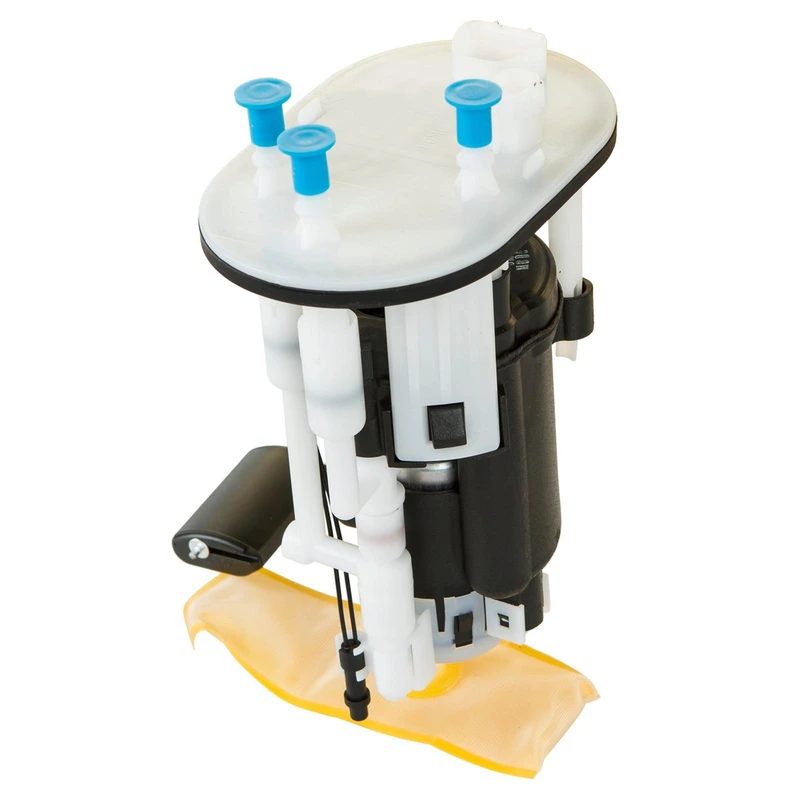

Fuel Pump Module Assembly - Delphi FG1257
Part # FG1257
Item # 1001VEAA
$440.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 8
- Average Flow Rating (gph)
- 40
- Connector Gender
- Female
- Connector Quantity
- 2
- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- Yes
- Maximum Pressure (PSI)
- 80
- Minimum Pressure (PSI)
- 44
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents

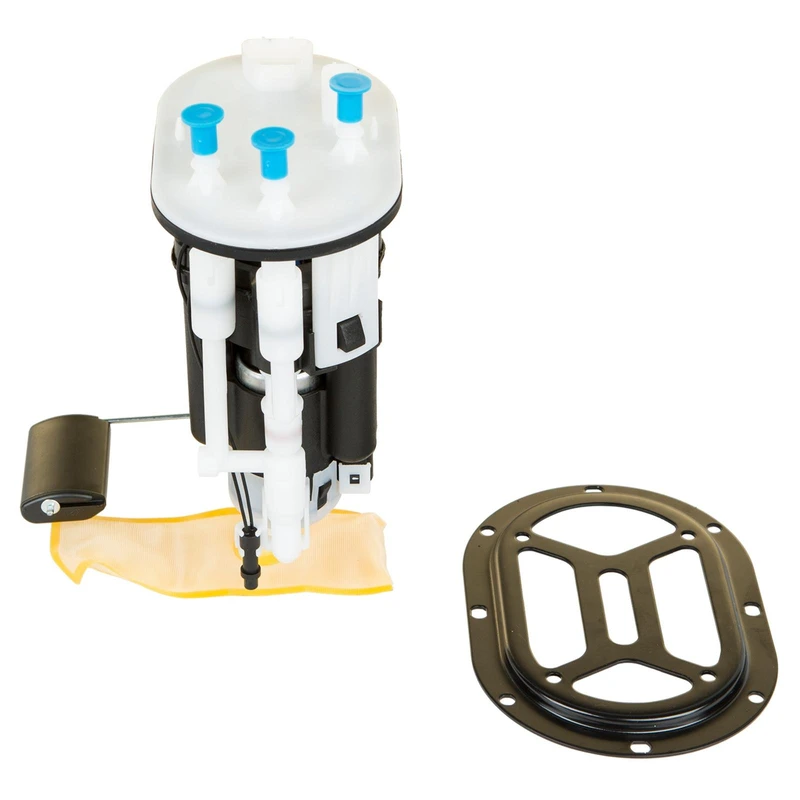

- Fuel Pump Module Assembly with Float Arm, Lock Ring, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 122
- Resistance Ohms Full (Ohms)
- 4
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 5
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Large Volume Reservoir: Featuring a large volume reservoir, Delphi fuel pumps enhance performance in low-fuel conditions.
● Comprehensive Late-Model Coverage: Delphi fuel pumps feature a comprehensive range of coverage for late-model vehicles.
● Replacement Tips: Always verify the fuel filter condition when installing a new fuel pump.
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Large Volume Reservoir: Featuring a large volume reservoir, Delphi fuel pumps enhance performance in low-fuel conditions.
● Comprehensive Late-Model Coverage: Delphi fuel pumps feature a comprehensive range of coverage for late-model vehicles.
● Replacement Tips: Always verify the fuel filter condition when installing a new fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E8662M - CARQUEST, AIRTEX
9510008, 951-0008 - DENSO AUTO PARTS
3111026355DS, 31110-26355DS - HYUNDAI
69856 - BOSCH
RE0894P - EVO DRIVELINE
E2518 - AIRTEX
3111026350, 31110-26350 - HYUNDAI
67919 - BOSCH
CFG1257 - AUTOZONE
FG1257 - DELPHI
P76183 - CARTER
P76404M - CARTER
SP3012M - SPECTRA PREMIUM
AFS0894P - EVO DRIVELINE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Hyundai
| 2003 - 2005 | Hyundai | Santa Fe |
| 2004 - 2004 | Hyundai | Santa Fe |
