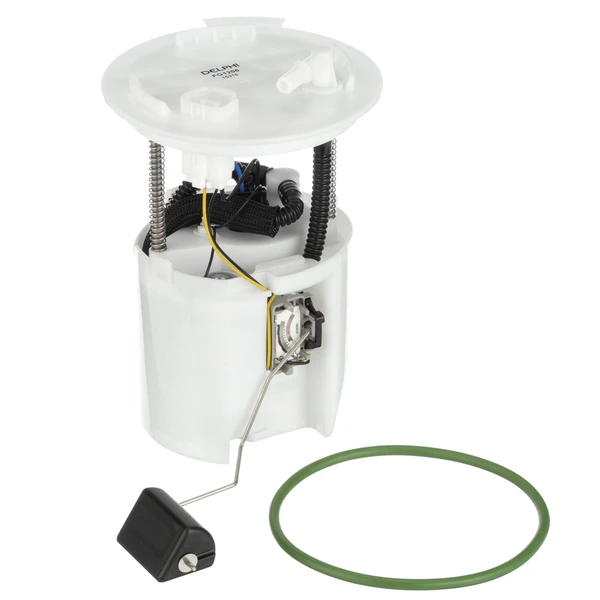

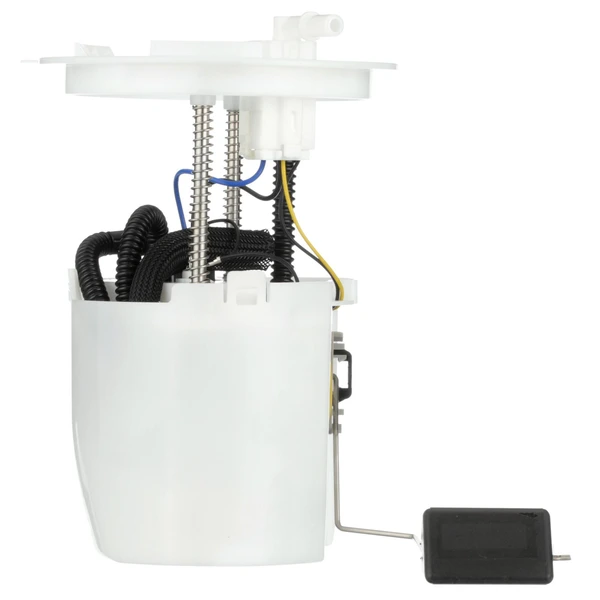

Fuel Pump Module Assembly - Delphi FG1206
Part # FG1206
Item # 1001VD80
$248.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 8
- Average Flow Rating (gph)
- 26
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 94
- Minimum Pressure (PSI)
- 65
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 180
- Resistance Ohms Full (Ohms)
- 10
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● OE-Quality Manufacturing: Delphi's OE fuel pumps are crafted to deliver a seamless fuel supply, optimizing engine efficiency while minimizing electrical power usage.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps come with free shipping and a generous warranty of up to 3 years for your added convenience and protection.
● Gauge Accuracy: Delphi's fuel pumps are manufactured to the exact OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge performance.
● Validated Vehicle Fit: Vehicle compatibility is ensured through Delphi's meticulous validation and testing of their parts.
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● OE-Quality Manufacturing: Delphi's OE fuel pumps are crafted to deliver a seamless fuel supply, optimizing engine efficiency while minimizing electrical power usage.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps come with free shipping and a generous warranty of up to 3 years for your added convenience and protection.
● Gauge Accuracy: Delphi's fuel pumps are manufactured to the exact OE specifications for empty float height and float retention, guaranteeing accurate fuel gauge performance.
● Validated Vehicle Fit: Vehicle compatibility is ensured through Delphi's meticulous validation and testing of their parts.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2479M - CARQUEST, AIRTEX
SP2374M - SPECTRA PREMIUM
7T4Z9H307B, 7T4Z-9H307B, 7T4Z 9H307-B - FORD
SP1381 - SPECTRA PREMIUM
PFS516, PFS-516 - MOTORCRAFT
FG1206 - DELPHI
P76458M - CARTER
8T4Z9H307B, 8T4Z 9H307-B, 8T4Z-9H307B - FORD
CFG1206 - AUTOZONE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Ford
Lincoln
| 2007 - 2010 | Ford | Edge |
| 2007 - 2010 | Lincoln | MKX |
