Fuel Pump Module Assembly - Delphi FG1205
Part # FG1205
Item # 1001VEPU
$306.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 26

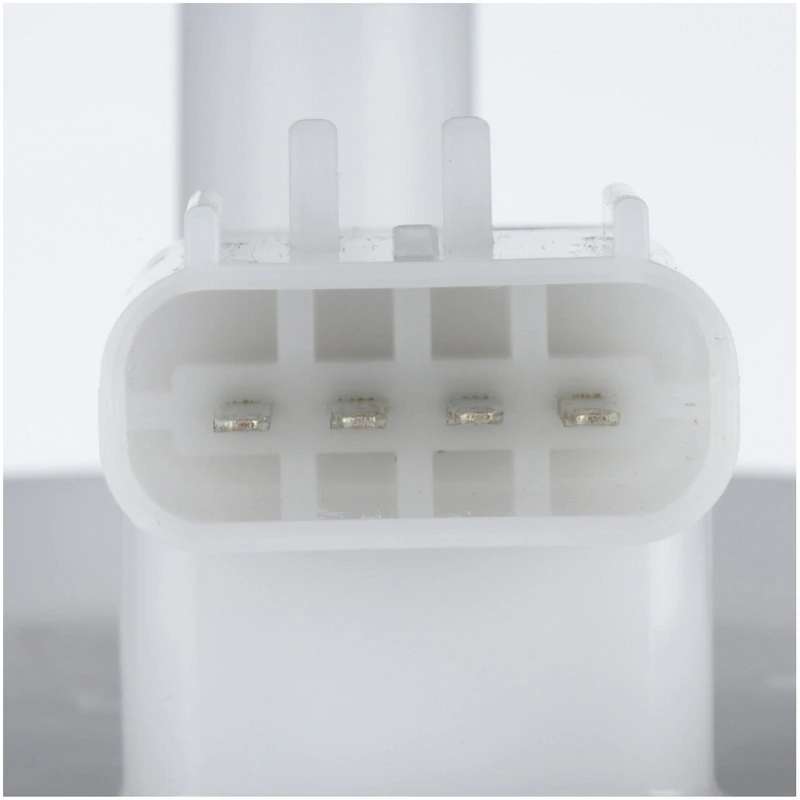

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Rectangle
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 94
- Minimum Pressure (PSI)
- 58
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents

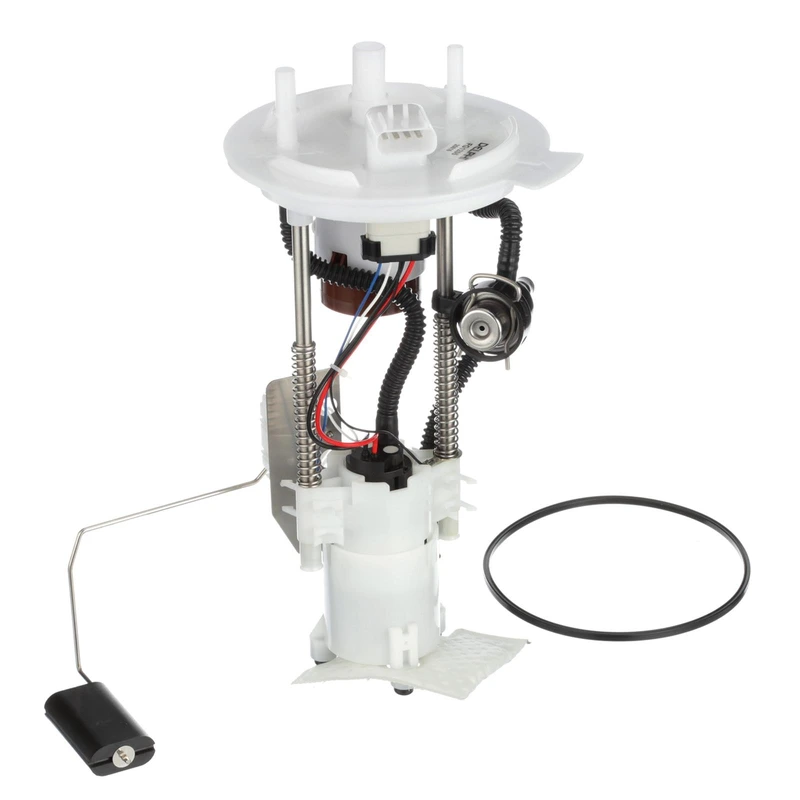

- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 180
- Resistance Ohms Full (Ohms)
- 10
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● OE-Quality Manufacturing: Delphi's OE fuel pumps are crafted to deliver a seamless fuel supply, optimizing engine efficiency while minimizing electrical power usage.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps come with free shipping and a generous warranty of up to 3 years for your added convenience and protection.
● Gauge Accuracy: Delphi's fuel pumps are engineered to precisely replicate the OE specifications for empty float height and float retention, providing reliable fuel gauge accuracy.
● Optimized Fuel Delivery: Delphi fuel pumps optimize pumping efficiency, reduce energy consumption, and have a minimal effect on the vehicle's electrical system.
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● OE-Quality Manufacturing: Delphi's OE fuel pumps are crafted to deliver a seamless fuel supply, optimizing engine efficiency while minimizing electrical power usage.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps come with free shipping and a generous warranty of up to 3 years for your added convenience and protection.
● Gauge Accuracy: Delphi's fuel pumps are engineered to precisely replicate the OE specifications for empty float height and float retention, providing reliable fuel gauge accuracy.
● Optimized Fuel Delivery: Delphi fuel pumps optimize pumping efficiency, reduce energy consumption, and have a minimal effect on the vehicle's electrical system.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2494M - CARQUEST, PUROLATOR, AIRTEX, FACET
SP2364M - SPECTRA PREMIUM
7L1Z9H307FA, 7L1Z-9H307FA, 7L1Z 9H307-FA - FORD
DFG1205 - AUTOZONE
7L1Z9H307D, 7L1Z-9H307D, 7L1Z 9H307-D - FORD
PFS565, PFS-565 - MOTORCRAFT
P76453M - CARTER
FG1205 - DELPHI
PFS446, PFS-446 - MOTORCRAFT
69374 - BOSCH
7L1Z9H307H, 7L1Z 9H307-H - FORD
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Ford
Lincoln
| 2007 - 2008 | Ford | Expedition |
| 2007 - 2008 | Ford | Expedition |
| 2007 - 2008 | Ford | Expedition |
| 2008 - 2008 | Ford | Expedition |
| 2007 - 2007 | Lincoln | Navigator |
| 2007 - 2007 | Lincoln | Navigator |
| 2008 - 2008 | Lincoln | Navigator |
