Delphi

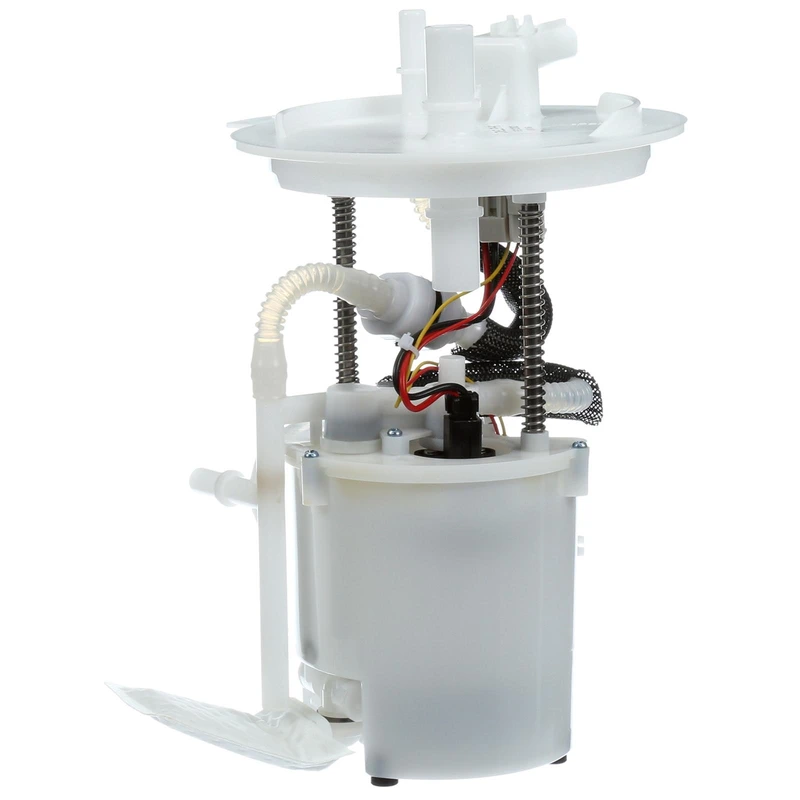

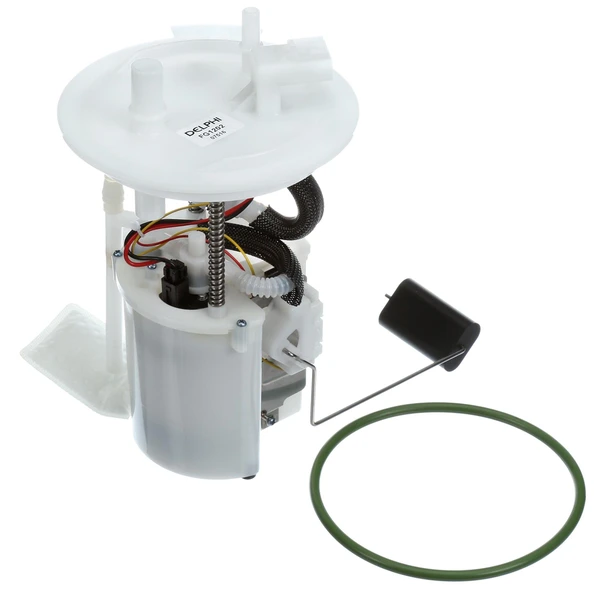

Fuel Pump Module Assembly - Delphi FG1202

Part # FG1202
Item # 1001VCLC
$289.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
7
Average Flow Rating (gph)
26
Connector Gender
Female
Connector Quantity
1
Connector Shape
Rectangle
Fuel Filter Included
No
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
External
Lock Ring Included
No
Maximum Pressure (PSI)
94
Minimum Pressure (PSI)
39
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.375
Outlet Quantity
2
Outlet Type
Quick Connect
Package Contents
Fuel Pump Module Assembly with Float Arm, Instruction Sheet
Pressure Sensor included
No
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
16
Resistance Ohms Full (Ohms)
160
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all

Features

About this item
Delphi stands out as a global OE manufacturer, offering fuel pumps built to exacting standards for outstanding performance. A-Premium provides an outstanding shopping experience, offering free shipping and a 3-year warranty with every Delphi fuel pump purchased.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● OE-design Connector: Delphi fuel pumps feature an OE-design Connector and body harness, ensuring exceptional performance.
● Comprehensive Late-Model Coverage: Delphi fuel pumps cater to a wide range of late-model vehicles, allowing new car owners to enjoy worry-free operation without breaking the bank.
● Replacement Tips: Inspecting the fuel filter is essential when installing a new fuel pump.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2467M - CARQUEST, PUROLATOR, AIRTEX, FACET
SP1346 - SPECTRA PREMIUM
SP2078M - SPECTRA PREMIUM
CFG1202 - AUTOZONE
6G1Z9H307A, 6G1Z-9H307A, 6G1Z 9H307-A - FORD
FG1202 - DELPHI
PFS363, PFS-363 - MOTORCRAFT
69183 - BOSCH
P76172M - CARTER

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Ford
Mercury
2005 - 2007FordFive Hundred
2005 - 2007MercuryMontego
