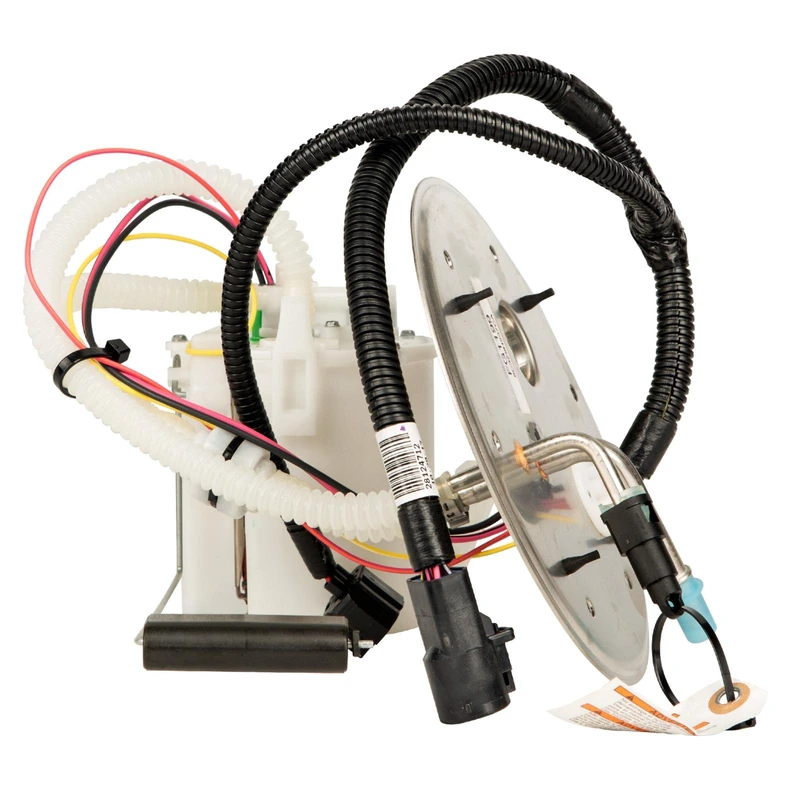

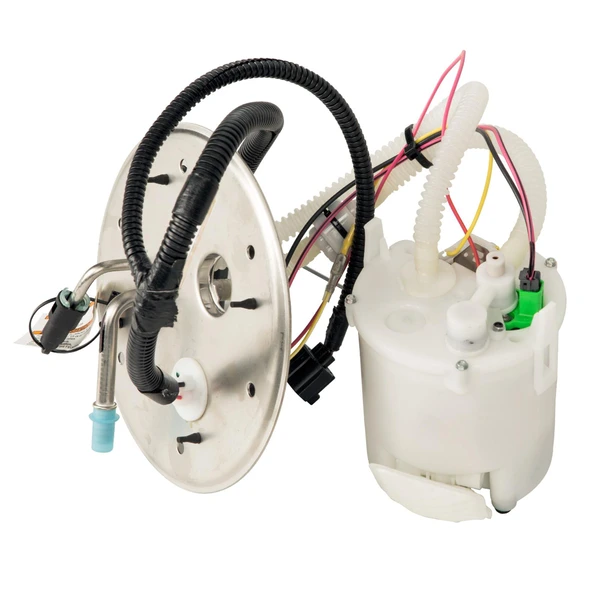

Fuel Pump Module Assembly - Delphi FG1199
Part # FG1199
Item # 1001VH9X
$258.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 40
- Connector Gender
- Female
- Connector Quantity
- 2
- Connector Shape
- Round
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 95
- Minimum Pressure (PSI)
- 44
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 15
- Resistance Ohms Full (Ohms)
- 160
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 7
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi is recognized worldwide as an OE manufacturer, with fuel pumps crafted to deliver superior performance and durability. A Delphi fuel pump purchased from A-Premium comes with the advantages of free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● OE-design Connector: The OE-design Connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: Delphi fuel pumps offer extensive coverage for late-model applications.
● Replacement Tips: Always check the condition of the fuel filter during pump replacements.
Delphi is recognized worldwide as an OE manufacturer, with fuel pumps crafted to deliver superior performance and durability. A Delphi fuel pump purchased from A-Premium comes with the advantages of free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● OE-design Connector: The OE-design Connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: Delphi fuel pumps offer extensive coverage for late-model applications.
● Replacement Tips: Always check the condition of the fuel filter during pump replacements.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30269 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E2442M - CARQUEST, AIRTEX
E2366 - AIRTEX
P76397 - CARTER
RE0946S - EVO DRIVELINE
SP2069M - SPECTRA PREMIUM
1AMFP00014 - MAGNETI MARELLI
6C3Z9H307CA, 6C3Z 9H307CA, 6C3Z 9H307-CA, 6C3Z-9H307CA - FORD
FG1199 - DELPHI
P76398M - CARTER
5C3Z9H307CA, 5C3Z-9H307CA, 5C3Z 9H307-CA - FORD
AFS0946S - EVO DRIVELINE
PFS313, PFS-313 - MOTORCRAFT
69177 - BOSCH
SP1144 - SPECTRA PREMIUM
DFG1199 - AUTOZONE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (27)vehicles
All
Ford
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2005 | Ford | F-350 Super Duty |
| 2005 - 2007 | Ford | F-450 Super Duty |
