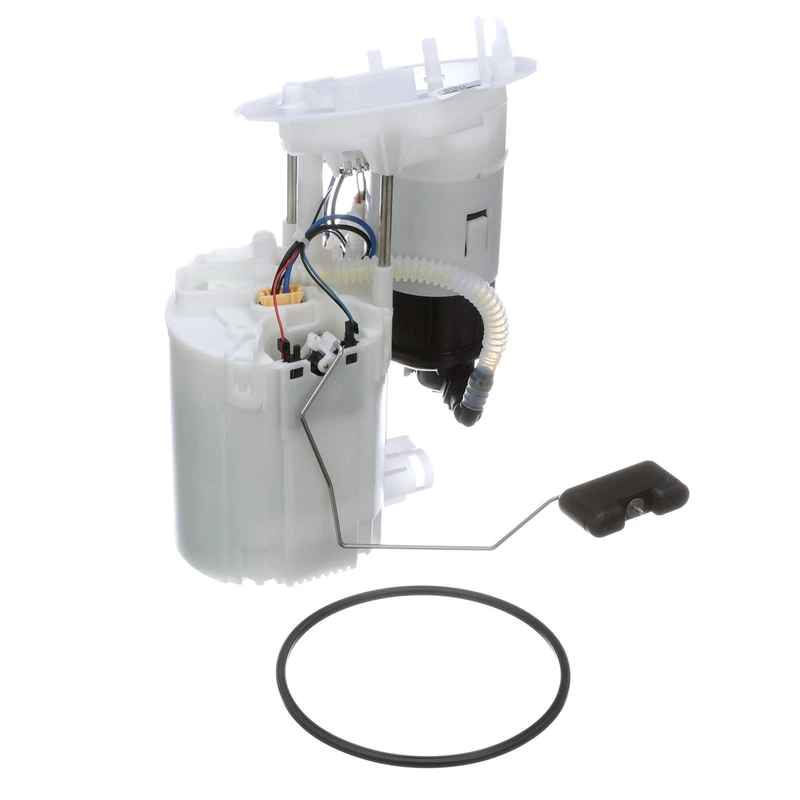

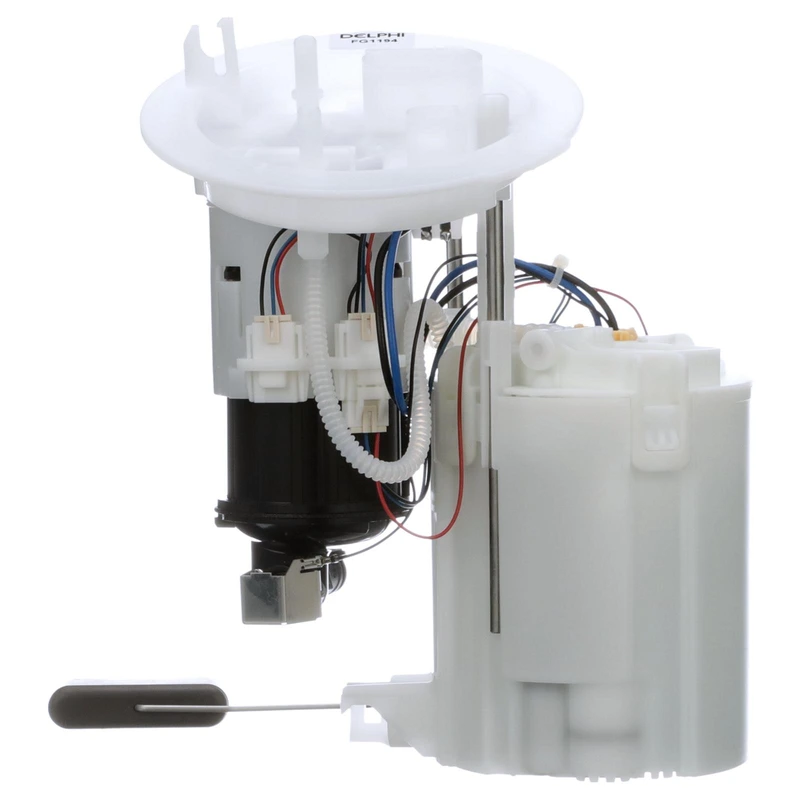

Fuel Pump Module Assembly - Delphi FG1194
Part # FG1194
Item # 1001VD8Z
$475.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 9
- Average Flow Rating (gph)
- 21
- Connector Gender
- Female
- Connector Quantity
- 2
- Connector Shape
- Oval
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 94
- Minimum Pressure (PSI)
- 58
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 55
- Resistance Ohms Full (Ohms)
- 286
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 5
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a leading OE manufacturer, Delphi produces fuel pumps that ensure optimal efficiency and durability. Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Always examine the fuel filter when replacing the fuel pump.
As a leading OE manufacturer, Delphi produces fuel pumps that ensure optimal efficiency and durability. Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Always examine the fuel filter when replacing the fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
8K0919673, 8K0 919 673 - AUDI, VOLKSWAGEN
8K0919087A, 8K0 919 087 A - AUDI, VOLKSWAGEN
8K0919087, 8K0 919 087 - AUDI, VOLKSWAGEN
E8880M, E888-0M - CARQUEST, AIRTEX
8K0919051G, 8K0-919-051G, 8K0 919 051 G - AUDI, VOLKSWAGEN
SP8880M - SPECTRA PREMIUM
66155 - BOSCH
580202016 - BOSCH
CFG1194 - AUTOZONE
FG1194 - DELPHI
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (14)vehicles
All
Audi
| 2008 - 2010 | Audi | A5 Quattro |
| 2008 - 2011 | Audi | S5 |
| 2009 - 2009 | Audi | A4 Quattro |
| 2009 - 2009 | Audi | A4 Quattro |
| 2009 - 2012 | Audi | A4 Quattro |
| 2010 - 2010 | Audi | A5 |
| 2010 - 2012 | Audi | A4 |
| 2010 - 2012 | Audi | S4 |
| 2011 - 2011 | Audi | A5 |
| 2011 - 2012 | Audi | A5 Quattro |
| 2012 - 2012 | Audi | A5 |
| 2012 - 2012 | Audi | S5 |
| 2012 - 2012 | Audi | S5 |
| 2013 - 2013 | Audi | RS5 |
