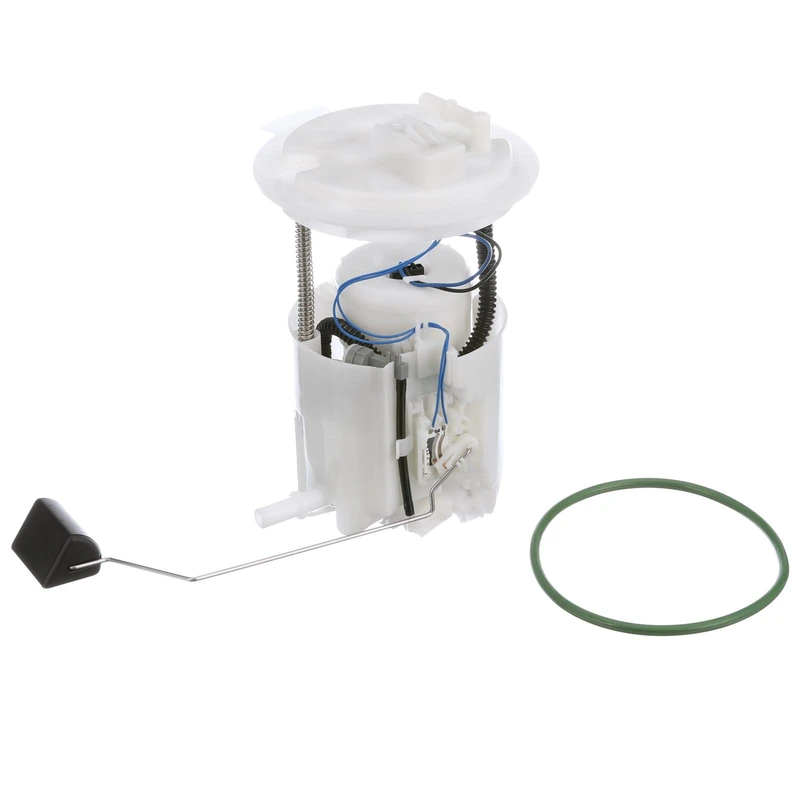

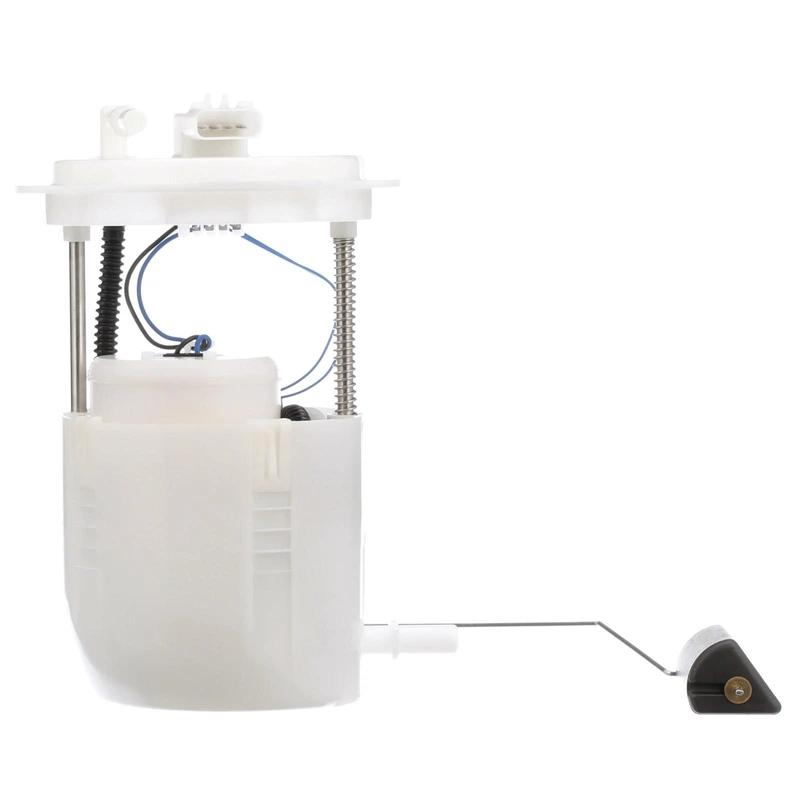

Fuel Pump Module Assembly - Delphi FG1193
Part # FG1193
Item # 1001VK0W
$278.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 8
- Average Flow Rating (gph)
- 28
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Rectangle
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 62
- Minimum Pressure (PSI)
- 58
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 990
- Resistance Ohms Full (Ohms)
- 50
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi is recognized worldwide as an OE manufacturer, with fuel pumps crafted to deliver superior performance and durability. A Delphi fuel pump purchased from A-Premium comes with the advantages of free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Providing wide coverage, Delphi fuel pumps cater to a variety of late-model applications.
● Replacement Tips: Replacing the fuel filter is a best practice with new fuel pump installations.
Delphi is recognized worldwide as an OE manufacturer, with fuel pumps crafted to deliver superior performance and durability. A Delphi fuel pump purchased from A-Premium comes with the advantages of free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Providing wide coverage, Delphi fuel pumps cater to a variety of late-model applications.
● Replacement Tips: Replacing the fuel filter is a best practice with new fuel pump installations.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A33116 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
68065575AA, 6806 5575AA, 68065 575AA - JEEP, CHRYSLER
E7265M - CARQUEST, AIRTEX
68065575AC, 6806 5575AC - JEEP, CHRYSLER
SP7210M - SPECTRA PREMIUM
68065575AB, 6806 5575AB - CHRYSLER
P76752M - CARTER
FG1193 - DELPHI
CFG1193 - AUTOZONE
68003388AA, 6800 3388AA - CHRYSLER
68065575AD, 6806 5575AD - CHRYSLER
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Jeep
| 2011 - 2011 | Jeep | Wrangler |
| 2012 - 2017 | Jeep | Wrangler |
| 2018 - 2018 | Jeep | Wrangler JK |
