Delphi

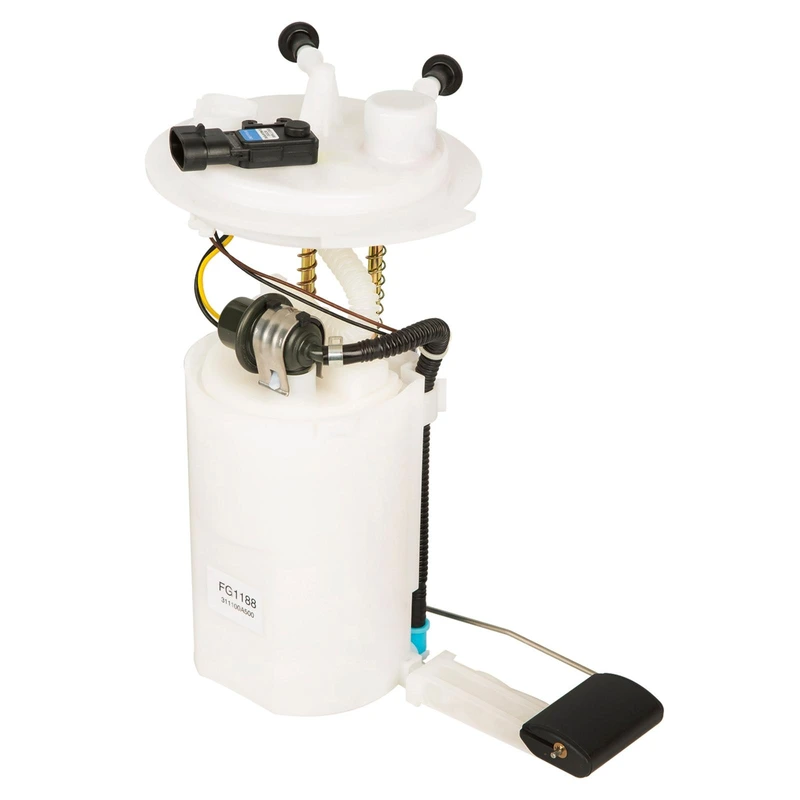

Fuel Pump Module Assembly - Delphi FG1188

Part # FG1188
Item # 1001VED2
$369.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
7
Average Flow Rating (gph)
23
Connector Gender
Female
Connector Quantity
1

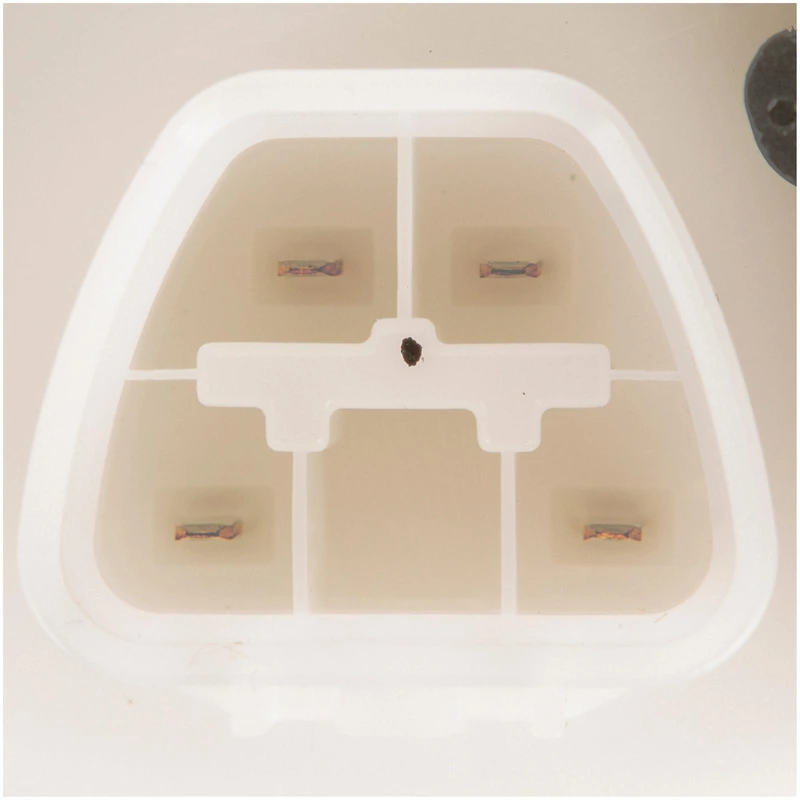

Connector Shape
Trapezoid
Fuel Filter Included
Yes
Fuel Type
Gas
Gasket Or Seal Included
No
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
External
Lock Ring Included
No
Maximum Pressure (PSI)
50
Minimum Pressure (PSI)
44
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.313
Outlet Quantity
2
Outlet Type
Quick Connect
Package Contents
Fuel Pump Module Assembly with Float Arm, Instruction Sheet
Pressure Sensor included
Yes
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
200
Resistance Ohms Full (Ohms)
8
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all

Features

About this item
As an esteemed OE manufacturer, Delphi designs fuel pumps that ensure dependable fuel supply and engine efficiency. A-Premium is dedicated to providing top-notch service, allowing customers to enjoy every Delphi fuel pump with free shipping and a 3-year warranty.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● OE-design Connector: Delphi fuel pumps feature an OE-design Connector and body harness, ensuring exceptional performance.
● Comprehensive Late-Model Coverage: Delphi fuel pumps cater to a wide range of late-model vehicles, allowing new car owners to enjoy worry-free operation without breaking the bank.
● Replacement Tips: Inspecting the fuel filter is essential when installing a new fuel pump.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A33125 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
SP3038M - SPECTRA PREMIUM
9510007, 951-0007 - DENSO AUTO PARTS
P76719M - CARTER
311100A500, 31110-0A500 - HYUNDAI
FG1188 - DELPHI
E9026M - AIRTEX
DFG1188 - AUTOZONE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Hyundai
2008 - 2008HyundaiSonata
2009 - 2009HyundaiSonata
2009 - 2009HyundaiSonata
2009 - 2009HyundaiSonata
2010 - 2010HyundaiSonata
