Fuel Pump Module Assembly - Delphi FG1185
Part # FG1185
Item # 1001VCTK
$321.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 21
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Square
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- Yes
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 58
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents

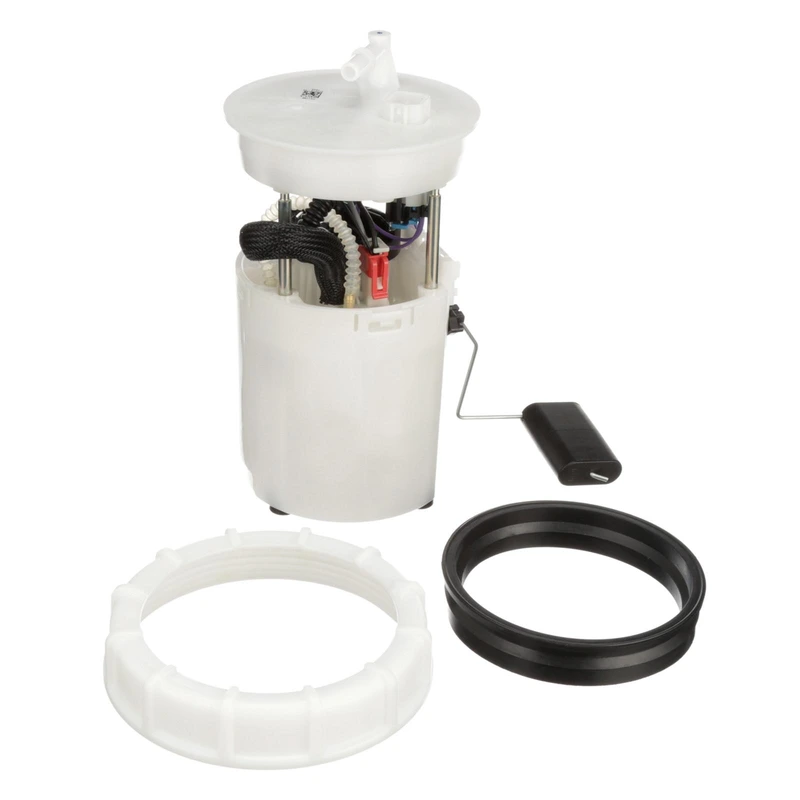

- Fuel Pump Module Assembly with Float Arm, Seal, Lock Ring, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 780
- Resistance Ohms Full (Ohms)
- 20
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi is a global OE manufacturer, known for fuel pumps built to high standards for reliability and performance. Choose A-Premium for your Delphi fuel pump, and you’ll enjoy the benefits of free shipping as well as a 3-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● OE-design Connector: Delphi fuel pumps feature an OE-design Connector and body harness, ensuring exceptional performance.
● Comprehensive Late-Model Coverage: Delphi fuel pumps are designed for extensive compatibility with late-model applications.
● Replacement Tips: Replacing the fuel filter is a crucial step when installing a new fuel pump.
Delphi is a global OE manufacturer, known for fuel pumps built to high standards for reliability and performance. Choose A-Premium for your Delphi fuel pump, and you’ll enjoy the benefits of free shipping as well as a 3-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● OE-design Connector: Delphi fuel pumps feature an OE-design Connector and body harness, ensuring exceptional performance.
● Comprehensive Late-Model Coverage: Delphi fuel pumps are designed for extensive compatibility with late-model applications.
● Replacement Tips: Replacing the fuel filter is a crucial step when installing a new fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E9070M - CARQUEST, AIRTEX
A33177 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
A30490 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
SP8056M - SPECTRA PREMIUM
P77031M - CARTER
P76843M - CARTER
FG1185 - DELPHI
E8325H - AIRTEX
17045TK8A01, 17045-TK8-A01 - HONDA
17045TK8A10, 17045-TK8-A10 - HONDA
17045TK8A11, 17045-TK8-A11 - HONDA
17045TK8A00, 17045-TK8-A00 - HONDA
DFG1185 - AUTOZONE
SP8406M - SPECTRA PREMIUM
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Honda
| 2011 - 2017 | Honda | Odyssey |
