Delphi

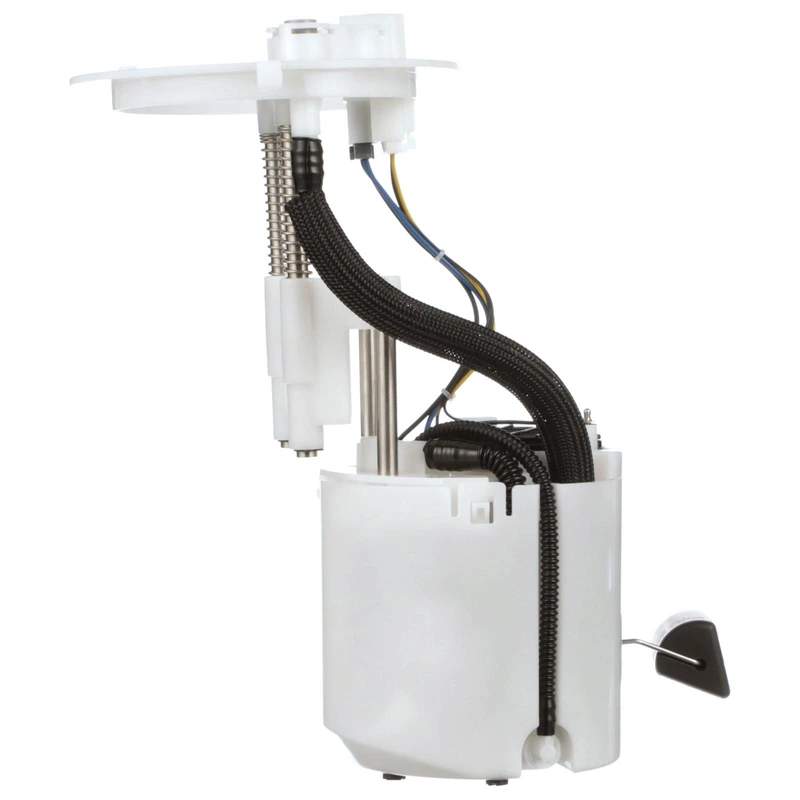

Fuel Pump Module Assembly - Delphi FG1173

Part # FG1173
Item # 1001VEQU
$469.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
7
Average Flow Rating (gph)
10
Connector Gender
Female
Connector Quantity
1
Connector Shape
Trapezoid
Fuel Filter Included
Yes
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
94
Minimum Pressure (PSI)
44
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.313
Outlet Quantity
1
Outlet Type
Quick Connect
Package Contents

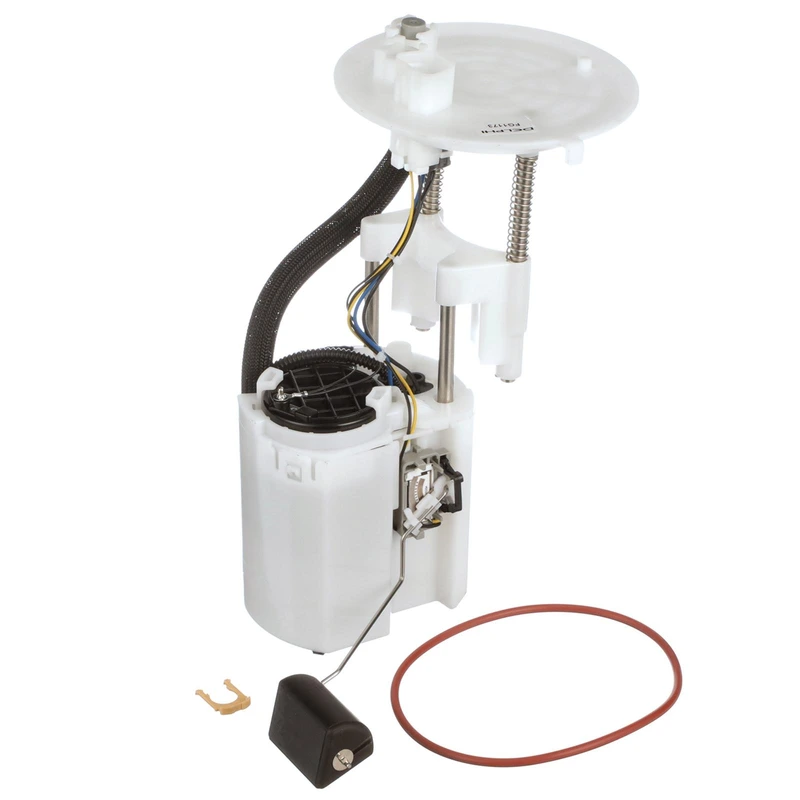

Fuel Pump Module Assembly with Float Arm, Instruction Sheet
Pressure Sensor included
No
Pump Design
Turbine
Pump Type
Electric
Regulator Included
No
Resistance Ohms Empty (Ohms)
408
Resistance Ohms Full (Ohms)
15
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Pin
Voltage (2h)
12
Wire Harness Included
No
Show all

Features

About this item
Delphi is a leader in OE manufacturing, ensuring its fuel pumps deliver optimal function and dependability. Purchasing a Delphi fuel pump from A-Premium ensures you enjoy free shipping and a robust 3-year warranty.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Comprehensive Late-Model Coverage: With wide coverage, Delphi fuel pumps are ideal for late-model vehicle needs.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A33141 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
7702047081, 77020-47081 - TOYOTA
E9005M - AIRTEX
SP9054M - SPECTRA PREMIUM
DFG1173 - AUTOZONE
P76758M - CARTER
7702047080, 77020-47080 - TOYOTA
FG1173 - DELPHI

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Toyota
2010 - 2015ToyotaPrius
2012 - 2015ToyotaPrius Plug-In
