Delphi

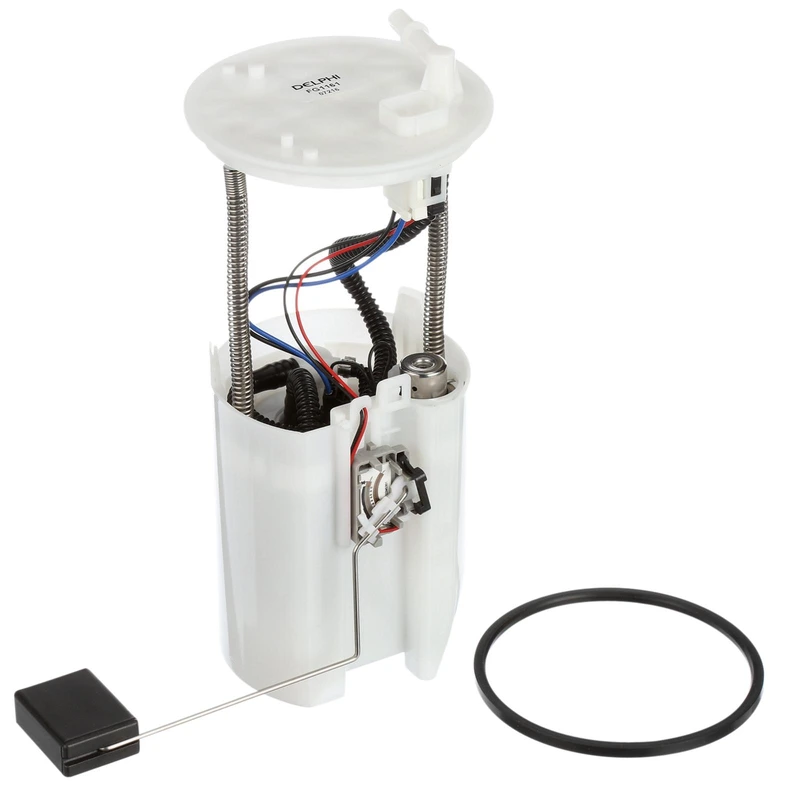

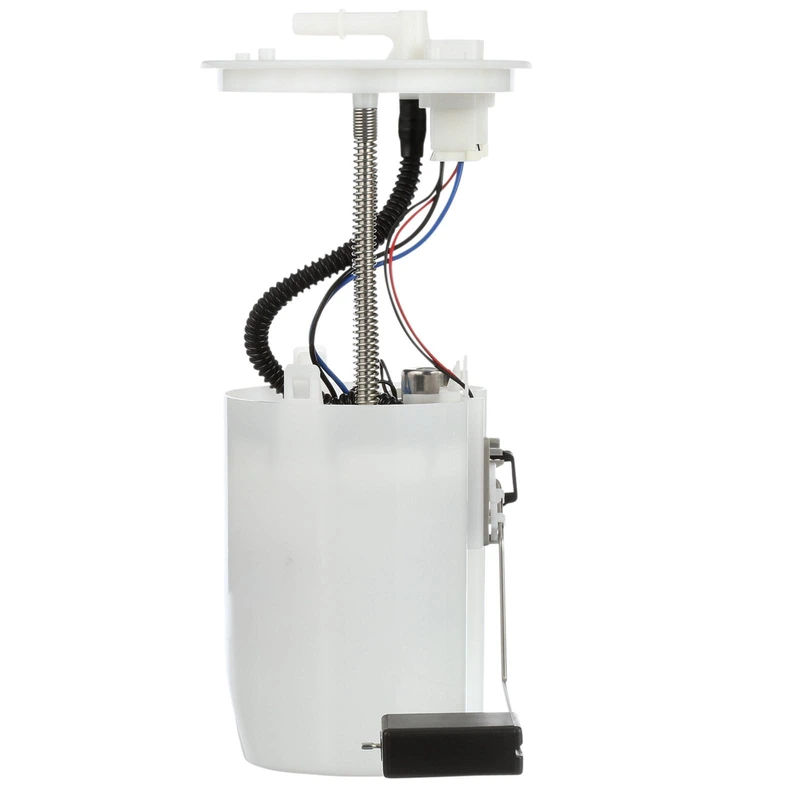

Fuel Pump Module Assembly - Delphi FG1161

Part # FG1161
Item # 1001VCVE
$589.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
9
Average Flow Rating (gph)
21
Connector Gender
Female
Connector Quantity
1
Connector Shape
Square
Fuel Filter Included
Yes
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
80
Minimum Pressure (PSI)
51
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.375
Outlet Quantity
1
Outlet Type
Quick Connect
Package Contents
Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
Pressure Sensor included
No
Pump Design
Turbine
Pump Type
Electric
Regulator Included
No
Resistance Ohms Empty (Ohms)
280
Resistance Ohms Full (Ohms)
40
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all

Features

About this item
Delphi is a global OE manufacturer, known for fuel pumps built to high standards for reliability and performance. Choose A-Premium for your Delphi fuel pump, and you’ll enjoy the benefits of free shipping as well as a 3-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps optimize pumping efficiency, reduce energy consumption, and have a minimal effect on the vehicle's electrical system.
● Comprehensive Late-Model Coverage: A wide range of late-model applications is supported by Delphi fuel pumps.
● Replacement Tips: Be sure to check and clean the fuel tank to prevent unnecessary issues.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A25529 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
E8773M - AIRTEX
SP8773M - SPECTRA PREMIUM
DFG1161 - AUTOZONE
1510080840, 15100-80840 - SUZUKI
FG1161 - DELPHI

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Suzuki
2007 - 2013SuzukiSX4

Highlights
