Fuel Pump Module Assembly - Delphi FG1054
Part # FG1054
Item # 1001VKNP
$297.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 11
- Average Flow Rating (gph)
- 20

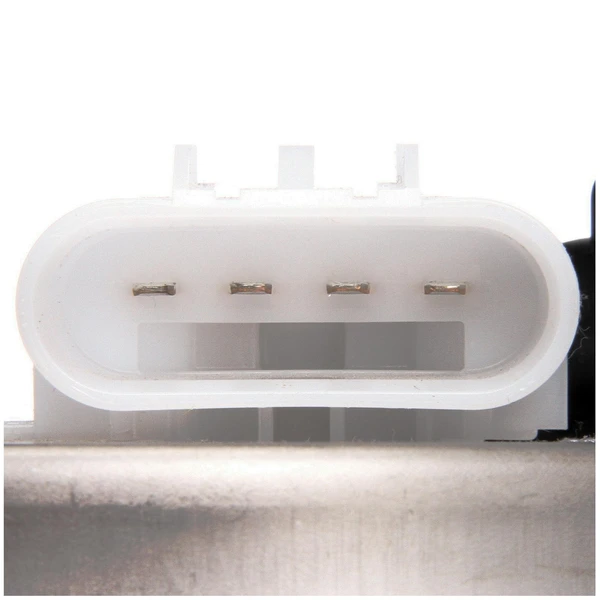

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- Yes
- Fuel Type
- Flex
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 78
- Minimum Pressure (PSI)
- 73
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents

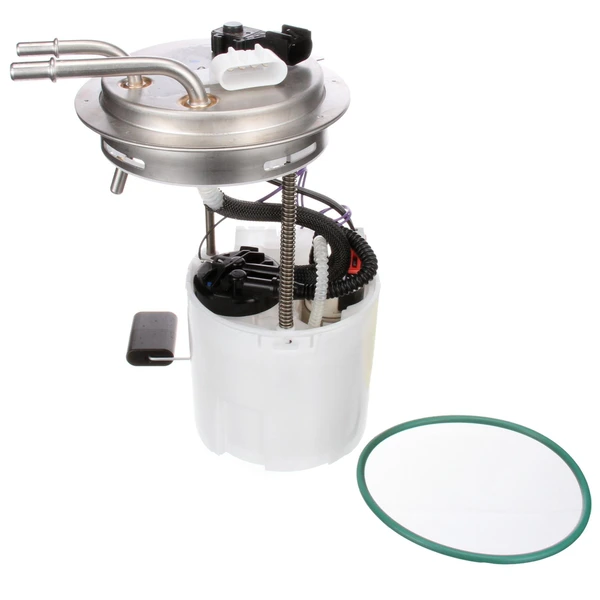

- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 250
- Resistance Ohms Full (Ohms)
- 40
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 3
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds meticulous OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Purchasing a Delphi fuel pump from A-Premium includes free shipping and a 3-year warranty.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Be sure to check and clean the fuel tank to prevent unnecessary issues.
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds meticulous OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Purchasing a Delphi fuel pump from A-Premium includes free shipping and a 3-year warranty.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Be sure to check and clean the fuel tank to prevent unnecessary issues.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3768M - CARQUEST, PUROLATOR, AIRTEX, FACET
A30011, A 30011 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19299717 - GENERAL MOTORS, GMC, CHEVROLET
FP22052S - VDO, CONTINENTAL
SK1356 - ACDELCO
MU1711 - ACDELCO
M2496229 - CARQUEST
MU2139 - ACDELCO
M10222 - ACDELCO
19259393 - GENERAL MOTORS
M10177 - ACDELCO
19179869 - GENERAL MOTORS
19206650 - GENERAL MOTORS
FG1054, FG 1054 - DELPHI
M100095 - ACDELCO
M100062 - ACDELCO
P76297M - CARTER
19179868 - GENERAL MOTORS
SP6107M - SPECTRA PREMIUM
DFG1054 - AUTOZONE
19299718 - GENERAL MOTORS
19257104 - GENERAL MOTORS
19179870 - GENERAL MOTORS
69451 - BOSCH
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (14)vehicles
All
Cadillac
Chevrolet
GMC
| 2009 - 2013 | Cadillac | Escalade |
| 2014 - 2014 | Cadillac | Escalade |
| 2008 - 2009 | Chevrolet | Tahoe |
| 2008 - 2009 | Chevrolet | Tahoe |
| 2008 - 2009 | Chevrolet | Tahoe |
| 2008 - 2009 | Chevrolet | Tahoe |
| 2009 - 2009 | Chevrolet | Tahoe |
| 2010 - 2013 | Chevrolet | Tahoe |
| 2014 - 2014 | Chevrolet | Tahoe |
| 2008 - 2009 | GMC | Yukon |
| 2008 - 2009 | GMC | Yukon |
| 2009 - 2013 | GMC | Yukon |
| 2010 - 2013 | GMC | Yukon |
| 2014 - 2014 | GMC | Yukon |
