Fuel Pump Module Assembly - Delphi FG0962
Part # FG0962
Item # 1001VHR3
$264.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 11
- Average Flow Rating (gph)
- 21

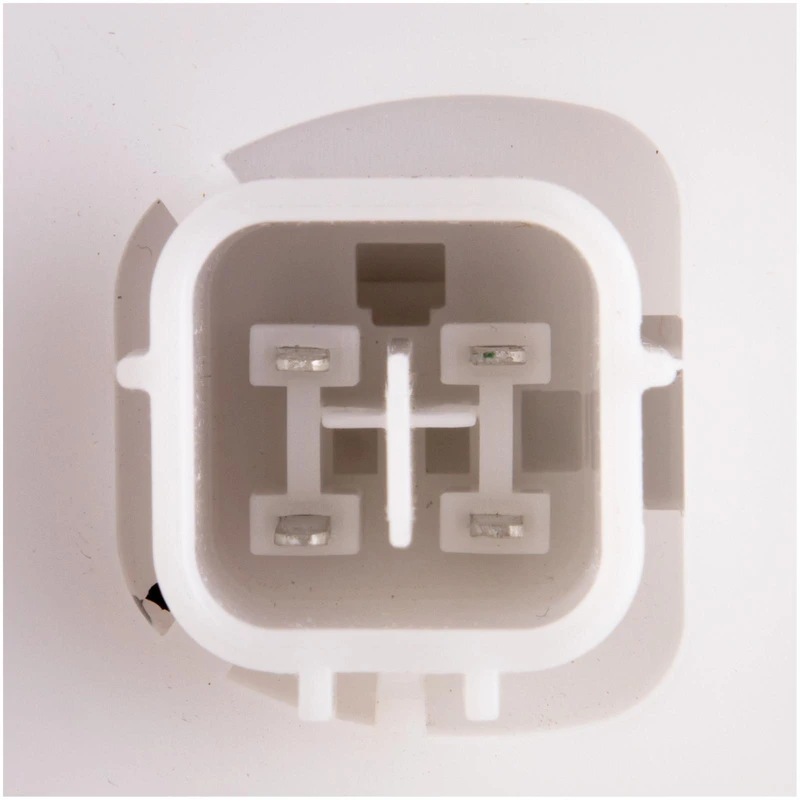

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Square
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- Yes
- Maximum Pressure (PSI)
- 78
- Minimum Pressure (PSI)
- 58
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents

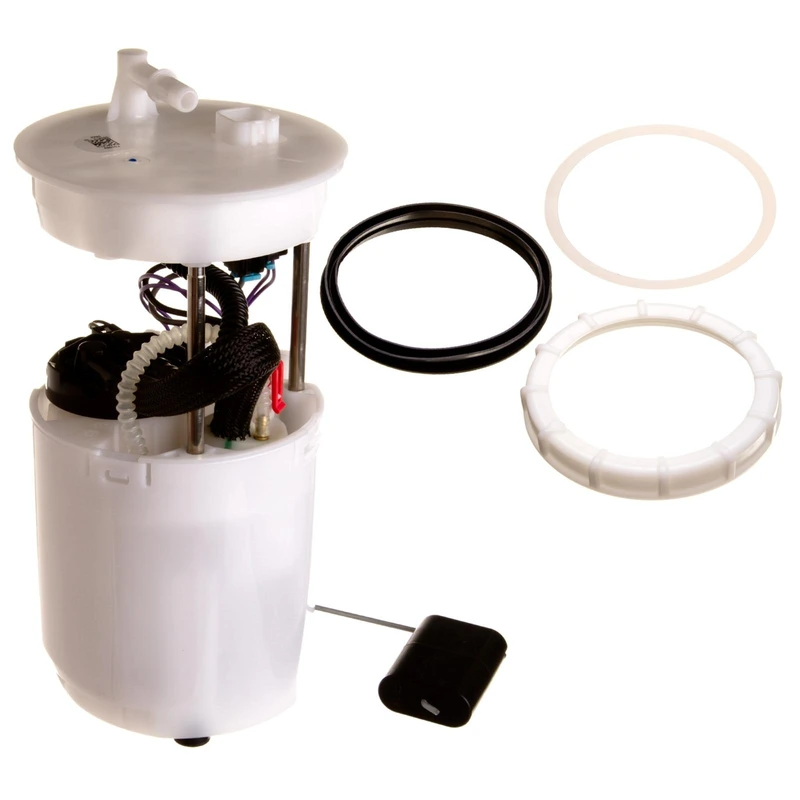

- Fuel Pump Module Assembly with Float Arm, Seals, Lock Ring, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 780
- Resistance Ohms Full (Ohms)
- 20
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a globally recognized OEM manufacturer with a century of professional expertise, Delphi adheres to rigorous OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium is dedicated to providing top-notch service, allowing customers to enjoy every Delphi fuel pump with free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps ensure reliable performance.
● Replacement Tips: Inspect and change the fuel filter whenever a new fuel pump is installed.
As a globally recognized OEM manufacturer with a century of professional expertise, Delphi adheres to rigorous OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium is dedicated to providing top-notch service, allowing customers to enjoy every Delphi fuel pump with free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps ensure reliable performance.
● Replacement Tips: Inspect and change the fuel filter whenever a new fuel pump is installed.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A41024 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS, IMPORT DIRECT AIR AND FUEL
17045TP1A00, 17045-TP1-A00 - ACURA, HONDA
E8923M - CARQUEST, AIRTEX
17045TA6A00, 17045-TA6-A00 - ACURA, HONDA
17045TK4A00, 17045-TK4-A00 - ACURA, HONDA
P76708M - CARTER
17052TK4A00, 17052-TK4-A00 - HONDA
17052TA6A00, 17052-TA6-A00 - HONDA
SP8006M - SPECTRA PREMIUM
SP8005M - SPECTRA PREMIUM
17047TA0A00, 17047-TA0-A00 - HONDA
FG0962 - DELPHI
17052TA1L00, 17052-TA1-L00 - HONDA
CFG0962 - AUTOZONE
17045TA1L00, 17045-TA1-L00 - HONDA
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Acura
Honda
| 2009 - 2014 | Acura | TL |
| 2010 - 2014 | Acura | TSX |
| 2008 - 2010 | Honda | Accord |
| 2010 - 2011 | Honda | Accord Crosstour |
| 2011 - 2011 | Honda | Accord |
| 2012 - 2012 | Honda | Accord |
| 2012 - 2012 | Honda | Crosstour |
