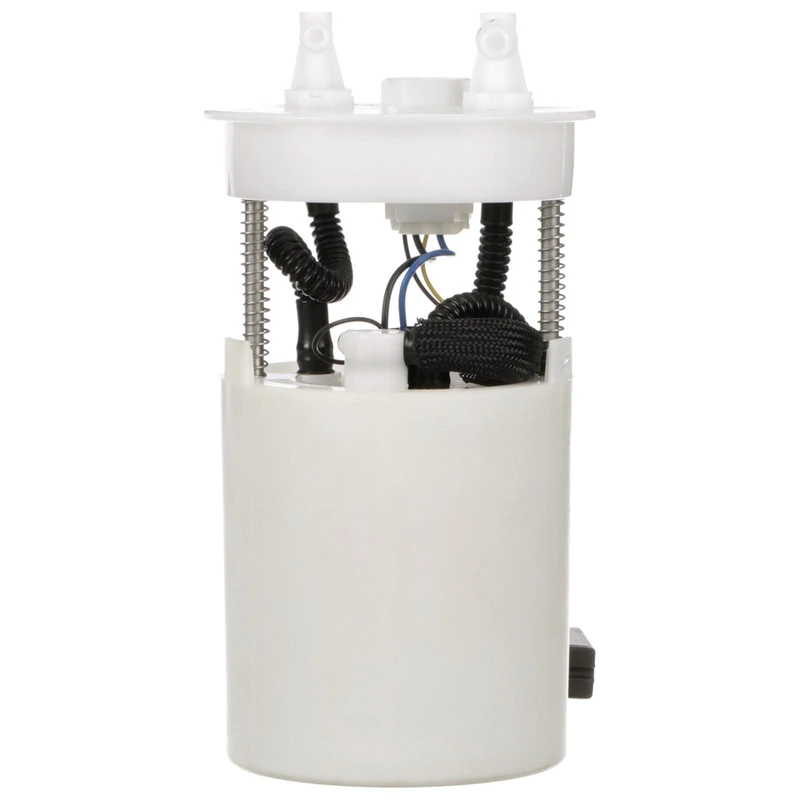

Fuel Pump Module Assembly - Delphi FG0956
Part # FG0956
Item # 1001VGS7
$283.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 14
- Average Flow Rating (gph)
- 40
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- Yes
- Maximum Pressure (PSI)
- 78
- Minimum Pressure (PSI)
- 47
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents

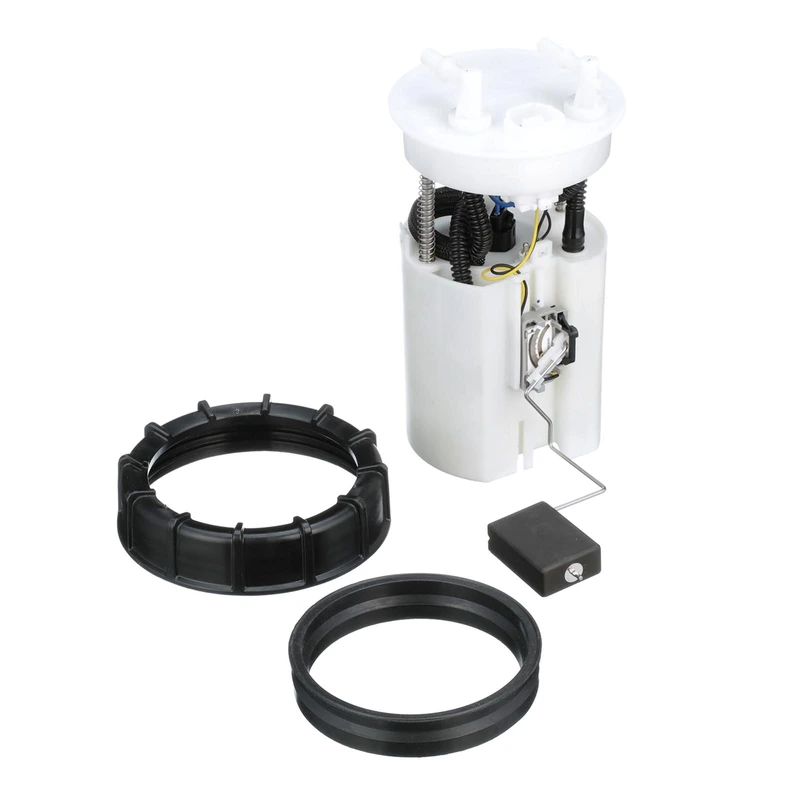

- Fuel Pump Module Assembly with Float Arm, Seal, Lock Ring, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 131
- Resistance Ohms Full (Ohms)
- 12
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 13
- Wire Harness Included
- No
Show all
Features
About this item
As a globally recognized OEM manufacturer with a century of professional expertise, Delphi adheres to rigorous OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty when you buy a Delphi fuel pump, ensuring a great purchasing experience.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Comprehensive Late-Model Coverage: Delphi fuel pumps feature a comprehensive range of coverage for late-model vehicles.
● Replacement Tips: Replacing the fuel filter is a crucial step when installing a new fuel pump.
As a globally recognized OEM manufacturer with a century of professional expertise, Delphi adheres to rigorous OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty when you buy a Delphi fuel pump, ensuring a great purchasing experience.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Comprehensive Late-Model Coverage: Delphi fuel pumps feature a comprehensive range of coverage for late-model vehicles.
● Replacement Tips: Replacing the fuel filter is a crucial step when installing a new fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30220, A-30220 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS, IMPORT DIRECT AIR AND FUEL
E8642M - CARQUEST, AIRTEX
69544 - BOSCH
SP1126 - SPECTRA PREMIUM
P76016 - CARTER
E16014, E160.14 - IMPORT DIRECT
SP8019M - SPECTRA PREMIUM
E8335 - AIRTEX
E16009 - IMPORT DIRECT
9510005, 951-0005 - DENSO AUTO PARTS
67913 - BOSCH
17045S0XA32, 17045-S0X-A32 - HONDA
17045S0XA02, 17045-S0X-A02 - HONDA
DFG0956 - AUTOZONE
9500116, 950-0116 - DENSO AUTO PARTS
P76531M - CARTER
FG0956 - DELPHI
AFS0894P - EVO DRIVELINE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Honda
| 1999 - 2004 | Honda | Odyssey |
