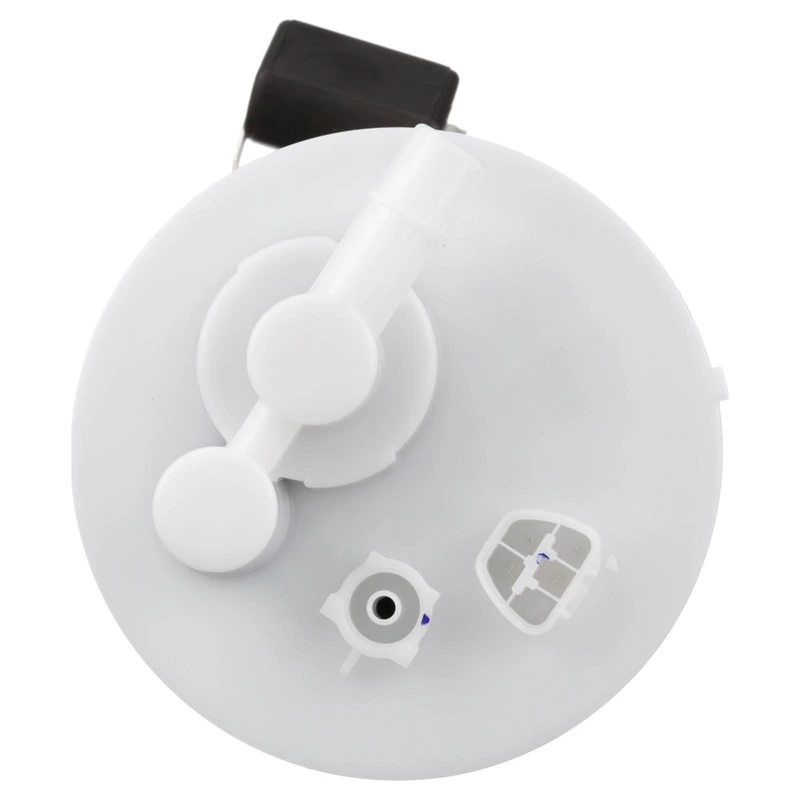

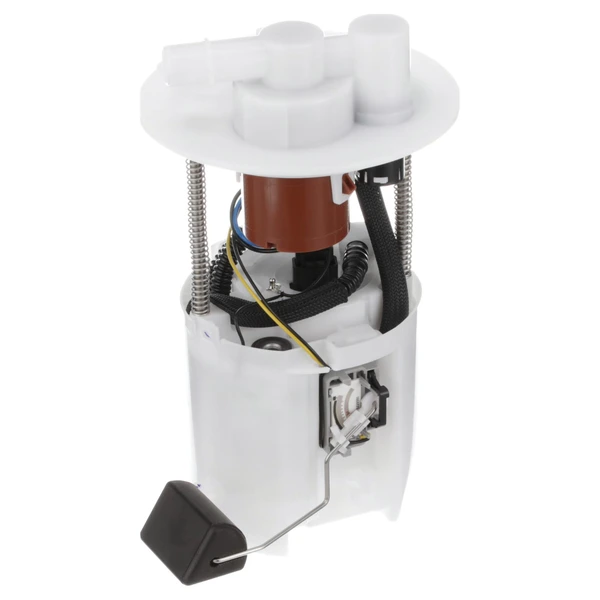

Fuel Pump Module Assembly - Delphi FG0938
Part # FG0938
Item # 1001VCY3
$517.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 6
- Average Flow Rating (gph)
- 26
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 65
- Minimum Pressure (PSI)
- 47
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 412
- Resistance Ohms Full (Ohms)
- 15
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Purchasing a Delphi fuel pump from A-Premium includes free shipping and a 3-year warranty.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps give new car owners peace of mind, knowing they can find the right part at a great price.
● Replacement Tips: Always check the condition of the fuel filter during pump replacements.
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Purchasing a Delphi fuel pump from A-Premium includes free shipping and a 3-year warranty.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps give new car owners peace of mind, knowing they can find the right part at a great price.
● Replacement Tips: Always check the condition of the fuel filter during pump replacements.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A38007 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS, EVO DRIVELINE, IMPORT DIRECT AIR AND FUEL
A33112 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS, IMPORT DIRECT AIR AND FUEL
E3781M - CARQUEST, AIRTEX
CFG0938 - AUTOZONE
P76004 - CARTER
232170D030, 23217-0D030 - TOYOTA
E8874M - AIRTEX
AFS0416P - EVO DRIVELINE
232200H131, 23220-0H131 - TOYOTA
7702002181, 77020-02181 - TOYOTA
9520006, 952-0006 - DENSO AUTO PARTS
232200H130, 23220-0H130 - TOYOTA
9500230, 950-0230 - DENSO AUTO PARTS
8332002010, 83320-02010 - TOYOTA
FG0938 - DELPHI
MU1718 - ACDELCO
E8867 - AIRTEX
E16136 - IMPORT DIRECT
M2496407 - CARQUEST
2322037160, 23220-37160 - TOYOTA
M10029 - ACDELCO
19331964 - GENERAL MOTORS
P76811 - CARTER
7702002291, 77020-02291 - TOYOTA
9500104, 950-0104 - DENSO AUTO PARTS
P76578M - CARTER
SP1294 - SPECTRA PREMIUM
SP9165M - SPECTRA PREMIUM
P76659M - CARTER
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Toyota
| 2005 - 2011 | Toyota | Corolla |
| 2005 - 2013 | Toyota | Matrix |
| 2012 - 2013 | Toyota | Corolla |
