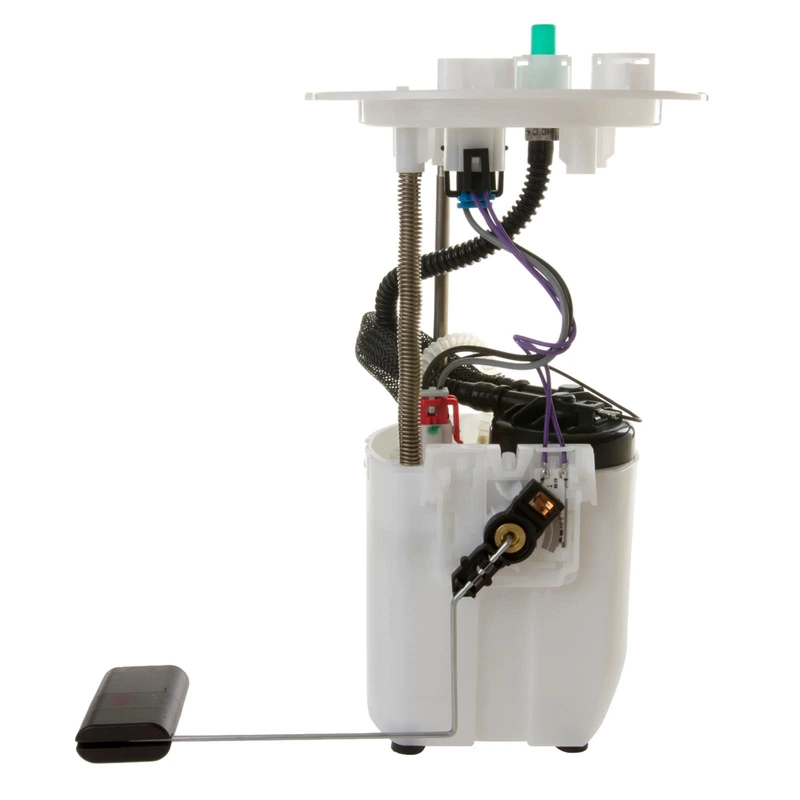

Fuel Pump Module Assembly - Delphi FG0922
Part # FG0922
Item # 1001VKEX
$422.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 14
- Average Flow Rating (gph)
- 21
- Connector Gender
- Female
- Connector Quantity
- 1

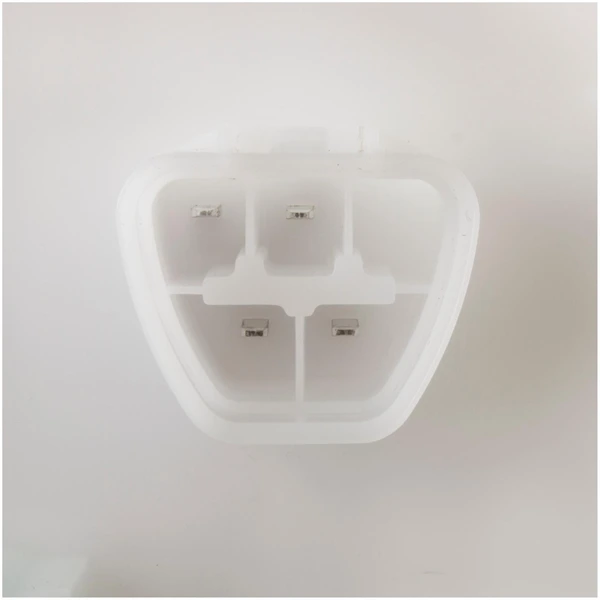

- Connector Shape
- Trapezoid
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 78
- Minimum Pressure (PSI)
- 47
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Quantity
- 1
- Outlet Type
- Push In
- Package Contents

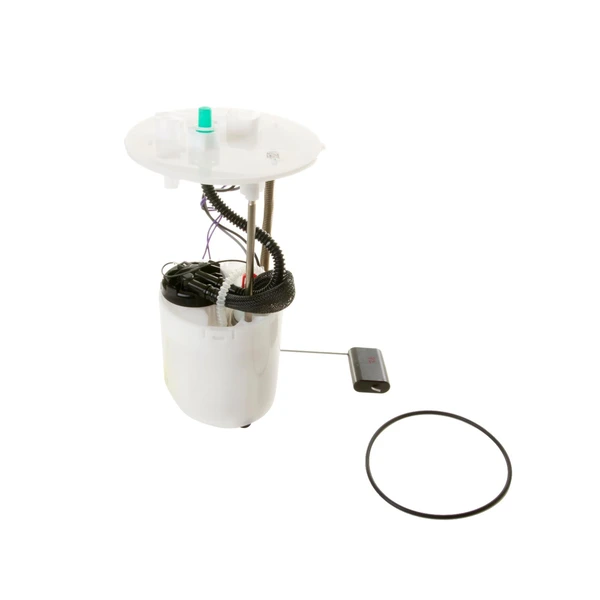

- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 111
- Resistance Ohms Full (Ohms)
- 4
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds strict OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump incorporates the latest OEM technological advancements, delivering outstanding pumping ability, excellent pressure performance, and reduced electrical power requirements, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● OE-design Connector: With an OE-design connector and body harness, Delphi fuel pumps deliver outstanding performance.
● Comprehensive Late-Model Coverage: Delphi fuel pumps are designed for extensive compatibility with late-model applications.
● Replacement Tips: Be sure to check and clean the fuel tank to prevent unnecessary issues.
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds strict OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump incorporates the latest OEM technological advancements, delivering outstanding pumping ability, excellent pressure performance, and reduced electrical power requirements, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● OE-design Connector: With an OE-design connector and body harness, Delphi fuel pumps deliver outstanding performance.
● Comprehensive Late-Model Coverage: Delphi fuel pumps are designed for extensive compatibility with late-model applications.
● Replacement Tips: Be sure to check and clean the fuel tank to prevent unnecessary issues.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30431 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
232210A050, 23221-0A050 - LEXUS, TOYOTA
E9011M - CARQUEST, AIRTEX
770200E020, 77020-0E020 - LEXUS, TOYOTA
770200E021, 77020-0E021 - LEXUS, TOYOTA
P76706M - CARTER
232170A050, 23217-0A050 - TOYOTA
E8883M, E888-3M - AIRTEX
E8840M - AIRTEX
E8513 - AIRTEX
P76369 - CARTER
9520090, 952-0090 - DENSO AUTO PARTS
9510023, 951-0023 - DENSO AUTO PARTS
SP9024M - SPECTRA PREMIUM
770200E012, 77020-0E012 - TOYOTA
FG0922 - DELPHI
SP9176M - SPECTRA PREMIUM
E16307 - IMPORT DIRECT
69750 - BOSCH
CFG0922 - AUTOZONE
SP1344 - SPECTRA PREMIUM
770200E060, 77020-0E060 - TOYOTA
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Lexus
Toyota
| 2004 - 2006 | Lexus | RX330 |
| 2007 - 2009 | Lexus | RX350 |
| 2010 - 2010 | Toyota | Highlander |
| 2010 - 2013 | Toyota | Highlander |
