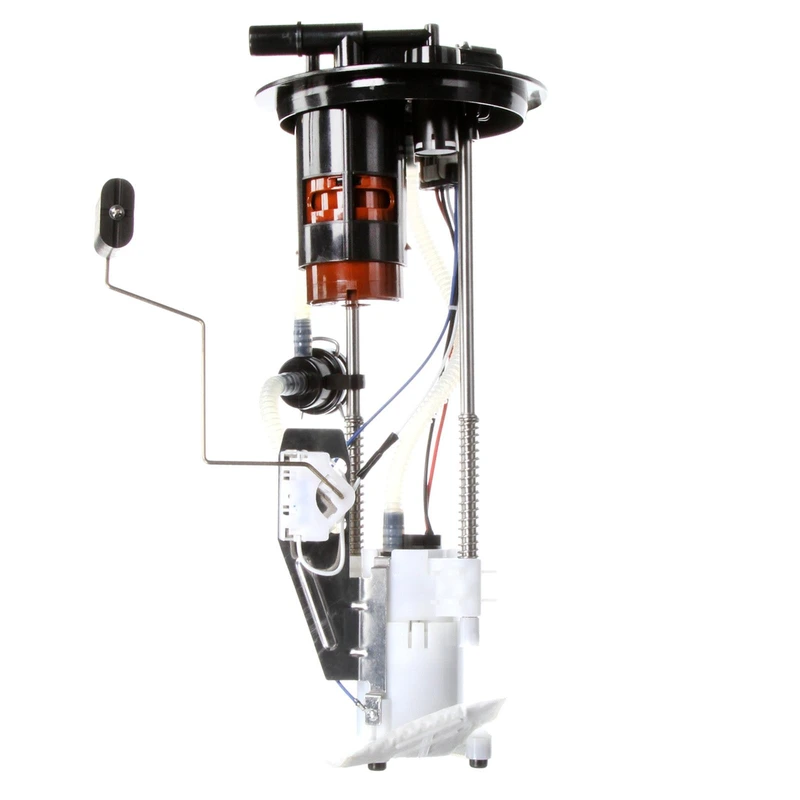

Fuel Pump Module Assembly - Delphi FG0882
Part # FG0882
Item # 1001VEY8
$285.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 23
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 65
- Minimum Pressure (PSI)
- 62
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 4
- Outlet Type
- Quick Connect
- Package Contents

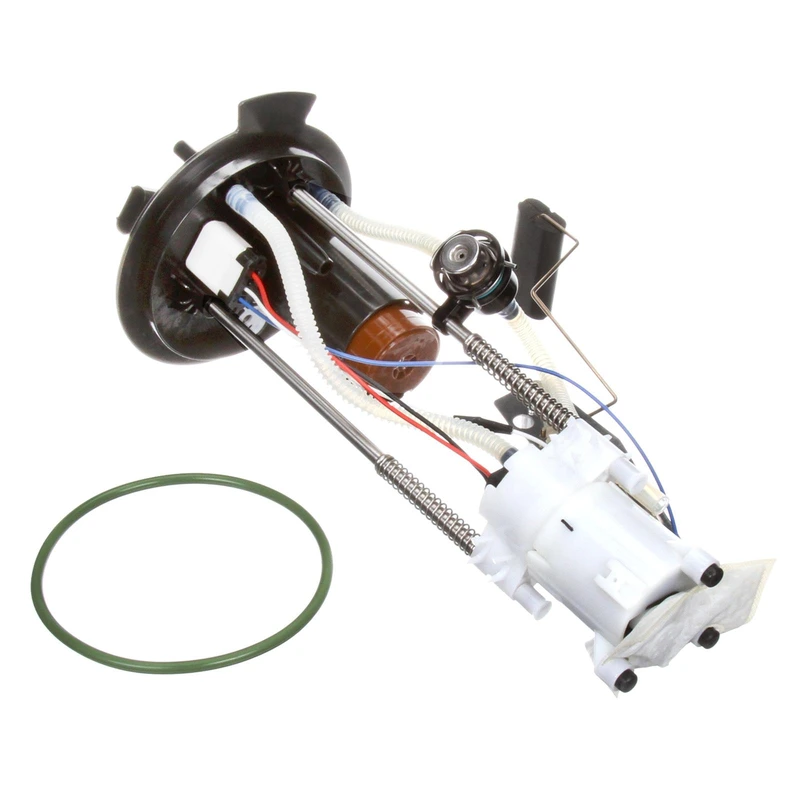

- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 15
- Resistance Ohms Full (Ohms)
- 160
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Check and clean the fuel tank to prevent unnecessary returns after installation.
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Check and clean the fuel tank to prevent unnecessary returns after installation.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2363M - CARQUEST, PUROLATOR, AIRTEX, FACET
A45000 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E2356M - CARQUEST, AIRTEX
A30132 - IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
6L5Z9H307BA, 6L5Z-9H307BA, 6L5Z 9H307-BA - FORD
SP2006M - SPECTRA PREMIUM
5L5Z9H307CA, 5L5Z-9H307CA, 5L5Z 9H307-CA - FORD
4L5Z9H307CF, 4L5Z 9H307-CF, 4L5Z-9H307CF - FORD
1F8113350, 1F81-13-350 - MAZDA
9534045, 953-4045 - DENSO AUTO PARTS
P76131M - CARTER
M3496123 - CARQUEST
P76123M - CARTER
1F8113350B, 1F81-13-350B - MAZDA
DFG0882 - AUTOZONE
1F8113350A, 1F81-13-350A - MAZDA
RE0873S - EVO DRIVELINE
6L5Z9H307B, 6L5Z 9H307-B - FORD
6L5Z9H307C, 6L5Z 9H307-C, 6L5Z-9H307C, 6L5Z 9H30-7C - FORD
SP1328 - SPECTRA PREMIUM
6L5Z9H307E, 6L5Z 9H307-E - FORD
6L5Z9H307F, 6L5Z 9H307 F, 6L5Z 9H307-F - FORD
6L5Z9H307CA, 6L5Z 9H307-CA, 6L5Z-9H307CA - FORD
SP2017M - SPECTRA PREMIUM
4L5Z9H307BF, 4L5Z 9H307-BF, 4L5Z-9H307BF - FORD
FG0882 - DELPHI
PFS1022, PFS-1022 - MOTORCRAFT
4L5Z9H307BB, 4L5Z 9H307-BB - FORD
PFS1023, PFS-1023 - MOTORCRAFT
69196 - BOSCH
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (9)vehicles
All
Ford
Mazda
| 2004 - 2006 | Ford | Ranger |
| 2007 - 2007 | Ford | Ranger |
| 2004 - 2004 | Mazda | B3000 |
| 2004 - 2005 | Mazda | B3000 |
| 2004 - 2005 | Mazda | B4000 |
| 2005 - 2005 | Mazda | B3000 |
| 2006 - 2006 | Mazda | B3000 |
| 2006 - 2006 | Mazda | B3000 |
| 2006 - 2006 | Mazda | B4000 |
