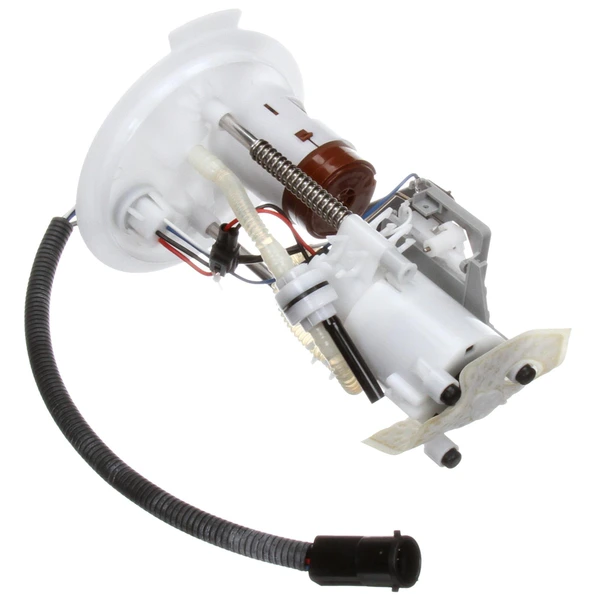

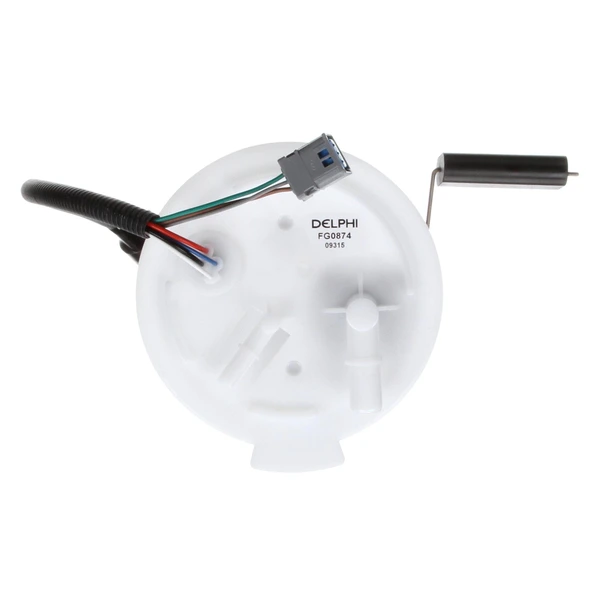

Fuel Pump Module Assembly - Delphi FG0874
Part # FG0874
Item # 1001VHWC
$253.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 15
- Average Flow Rating (gph)
- 26
- Connector Gender
- Female
- Connector Quantity
- 2
- Connector Shape
- Round
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 73
- Minimum Pressure (PSI)
- 39
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 180
- Resistance Ohms Full (Ohms)
- 10
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 7
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A Delphi fuel pump purchased from A-Premium comes with the advantages of free shipping and a 3-year warranty.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Comprehensive Late-Model Coverage: Delphi fuel pumps feature a comprehensive range of coverage for late-model vehicles.
● Replacement Tips: Always ensure the fuel filter is in good condition during pump replacement.
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A Delphi fuel pump purchased from A-Premium comes with the advantages of free shipping and a 3-year warranty.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Comprehensive Late-Model Coverage: Delphi fuel pumps feature a comprehensive range of coverage for late-model vehicles.
● Replacement Tips: Always ensure the fuel filter is in good condition during pump replacement.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2454M - CARQUEST, PUROLATOR, AIRTEX, FACET
A33050 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
7L2Z9H307A, 7L2Z-9H307A, 7L2Z 9H307 A, 7L2Z 9H30-7A, 7L2Z 9H307-A - MERCURY, FORD
67277 - BOSCH
FG0874 - DELPHI
6L2Z9H307AA, 6L2Z-9H307AA, 6L2Z 9H307-AA - FORD
69185 - BOSCH
P76118M - CARTER
SP2108M - SPECTRA PREMIUM
6L2Z9H307A, 6L2Z 9H30-7A, 6L2Z-9H307A, 6L2Z 9H307-A - FORD
CFG0874 - AUTOZONE
PFS381, PFS-381 - MOTORCRAFT
M2496132 - CARQUEST
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Ford
Mercury
| 2006 - 2009 | Ford | Explorer |
| 2007 - 2009 | Ford | Explorer Sport Trac |
| 2006 - 2009 | Mercury | Mountaineer |
