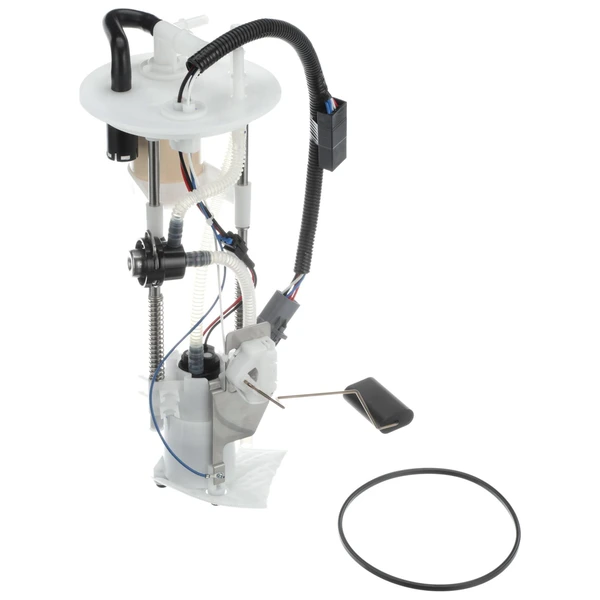

Fuel Pump Module Assembly - Delphi FG0872
Part # FG0872
Item # 1001VCHC
$262.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 8
- Average Flow Rating (gph)
- 36
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Round
- Fuel Filter Included
- No
- Fuel Type
- Flex
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 65
- Minimum Pressure (PSI)
- 44
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 4
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 6
- Resistance Ohms Full (Ohms)
- 140
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 5
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Purchasing a Delphi fuel pump from A-Premium includes free shipping and a 3-year warranty.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Comprehensive Late-Model Coverage: With a wide range of compatibility, Delphi fuel pumps are perfect for late-model applications.
● Replacement Tips: Ensure the fuel tank is inspected and cleaned to avoid future complications.
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Purchasing a Delphi fuel pump from A-Premium includes free shipping and a 3-year warranty.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Comprehensive Late-Model Coverage: With a wide range of compatibility, Delphi fuel pumps are perfect for late-model applications.
● Replacement Tips: Ensure the fuel tank is inspected and cleaned to avoid future complications.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30147 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E2349M - CARQUEST, AIRTEX
67204 - BOSCH
P76538 - CARTER
P76181M - CARTER
DFG0872 - AUTOZONE
SP1180 - SPECTRA PREMIUM
1F6013350B, 1F60-13-350B - MAZDA
FG0872 - DELPHI
PFS438, PFS-438 - MOTORCRAFT
SP2081M - SPECTRA PREMIUM
2L5Z9H307AC, 2L5Z 9H307-AC, 2L5Z-9H307AC - FORD
2L5Z9H307AA, 2L5Z 9H307-AA - FORD
2L5Z9H307AB, 2L5Z 9H307-AB, 2L5Z-9H307AB - FORD
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Ford
Mazda
| 2002 - 2002 | Ford | Ranger |
| 2002 - 2002 | Ford | Ranger |
| 2002 - 2002 | Ford | Ranger |
| 2003 - 2003 | Ford | Ranger |
| 2001 - 2003 | Mazda | B3000 |
