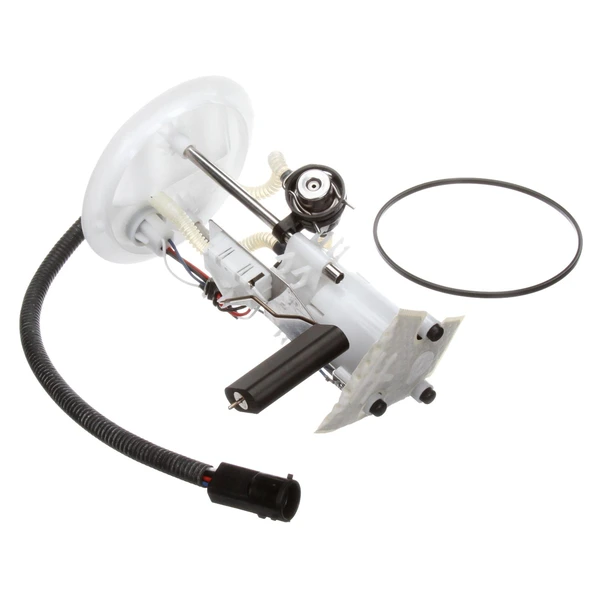

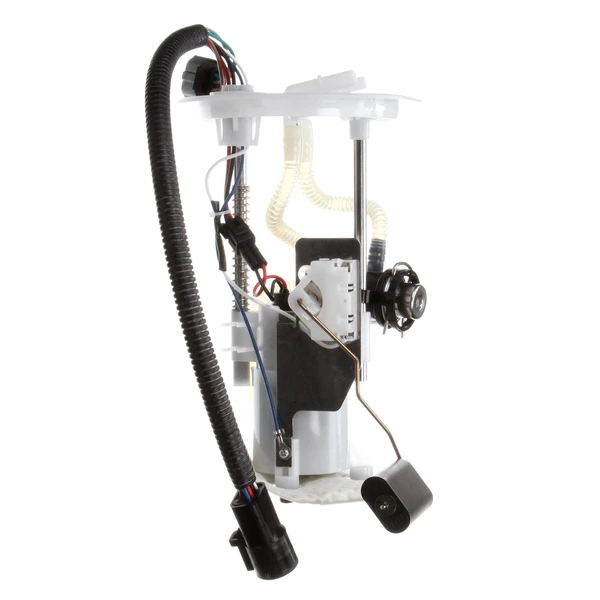

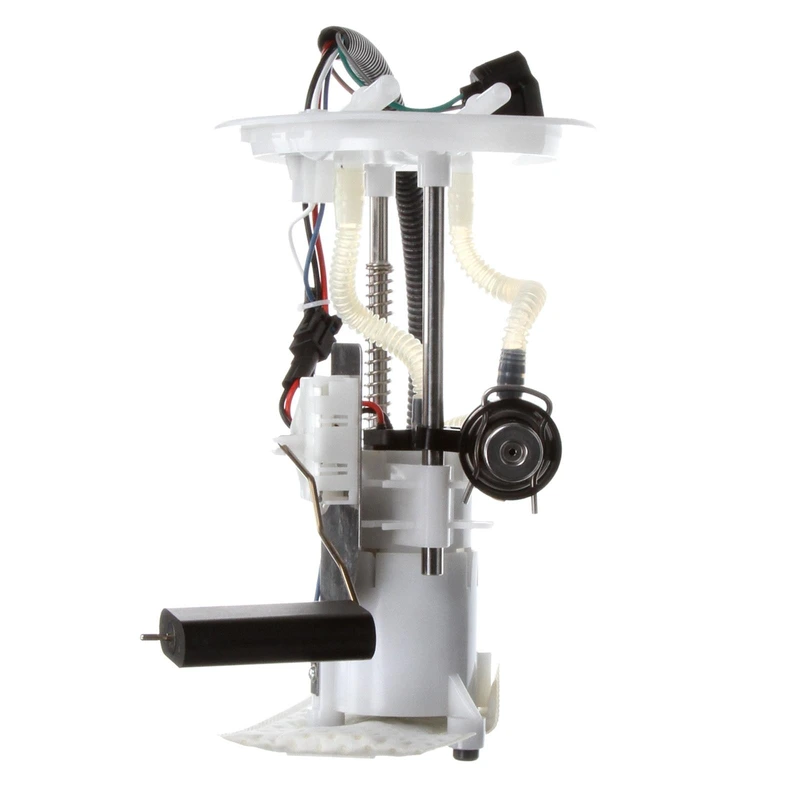

Fuel Pump Module Assembly - Delphi FG0867
Part # FG0867
Item # 1001VCH8
$281.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 40
- Connector Gender
- Female
- Connector Quantity
- 2
- Connector Shape
- Round
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 80
- Minimum Pressure (PSI)
- 62
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 15
- Resistance Ohms Full (Ohms)
- 160
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 7
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a globally renowned OEM manufacturer with a century of professional expertise, Delphi adheres to meticulous OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: A wide range of late-model applications is supported by Delphi fuel pumps.
● Replacement Tips: Inspect and change the fuel filter whenever a new fuel pump is installed.
As a globally renowned OEM manufacturer with a century of professional expertise, Delphi adheres to meticulous OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: A wide range of late-model applications is supported by Delphi fuel pumps.
● Replacement Tips: Inspect and change the fuel filter whenever a new fuel pump is installed.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2334M - CARQUEST, PUROLATOR, AIRTEX, FACET
A33031 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
1L2Z9H307LD, 1L2Z 9H307-LD - FORD
9500171, 950-0171 - DENSO AUTO PARTS
E16126 - PRECISION FUEL
67210 - BOSCH
P76539 - CARTER
SP2334M - SPECTRA PREMIUM
E2339 - AIRTEX
FG0867 - DELPHI
P76126M - CARTER
AFS0999P - EVO DRIVELINE
AFS0858S - EVO DRIVELINE
PFS357, PFS-357 - MOTORCRAFT
1AMFP00090 - MAGNETI MARELLI
PFS435, PFS-435 - MOTORCRAFT
SP1177 - SPECTRA PREMIUM
CFG0867 - AUTOZONE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (9)vehicles
All
Ford
Mercury
| 2002 - 2002 | Ford | Explorer |
| 2002 - 2002 | Ford | Explorer |
| 2002 - 2002 | Ford | Explorer |
| 2003 - 2003 | Ford | Explorer |
| 2003 - 2003 | Ford | Explorer |
| 2003 - 2003 | Ford | Explorer |
| 2002 - 2002 | Mercury | Mountaineer |
| 2002 - 2002 | Mercury | Mountaineer |
| 2003 - 2003 | Mercury | Mountaineer |
