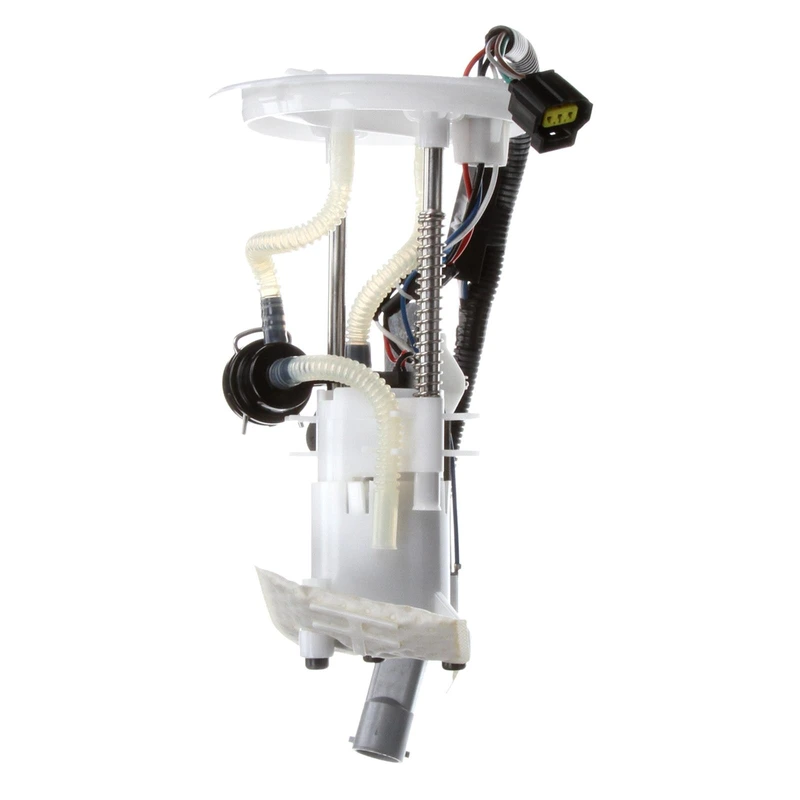

Fuel Pump Module Assembly - Delphi FG0863
Part # FG0863
Item # 1001VGZR
$226.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 40

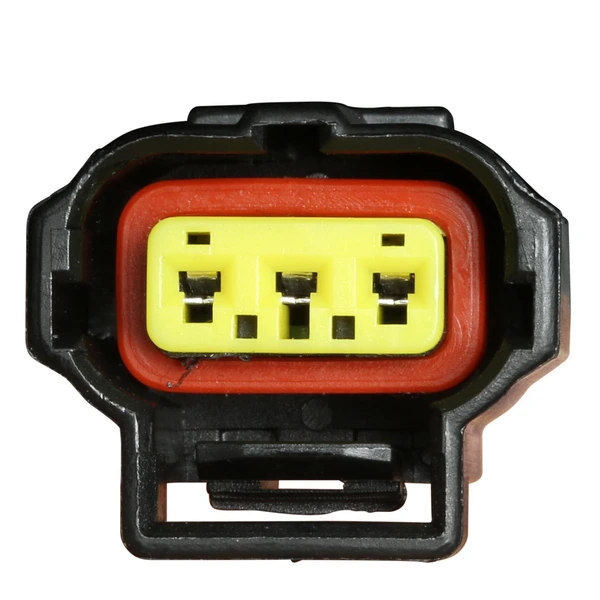

- Connector Gender
- Female
- Connector Quantity
- 2
- Connector Shape
- Round
- Fuel Filter Included
- No
- Fuel Type
- Flex
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 80
- Minimum Pressure (PSI)
- 59
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents

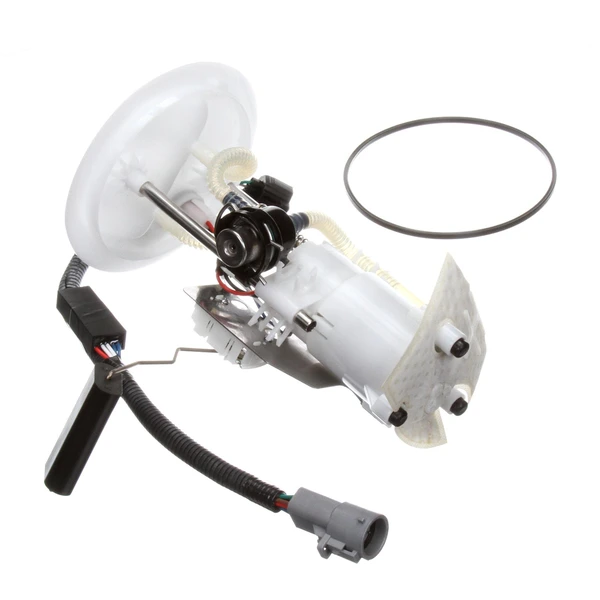

- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 7
- Resistance Ohms Full (Ohms)
- 138
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 8
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a globally renowned OEM manufacturer with a century of professional expertise, Delphi adheres to meticulous OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: With a wide range of compatibility, Delphi fuel pumps are perfect for late-model applications.
● Replacement Tips: Replacing the fuel filter is a best practice with new fuel pump installations.
As a globally renowned OEM manufacturer with a century of professional expertise, Delphi adheres to meticulous OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: With a wide range of compatibility, Delphi fuel pumps are perfect for late-model applications.
● Replacement Tips: Replacing the fuel filter is a best practice with new fuel pump installations.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A33018 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
RE0862S - SPECTRA PREMIUM, EVO DRIVELINE
E2352M - CARQUEST, AIRTEX
PFS436, PFS-436 - MOTORCRAFT, FORD
2L2Z9H307GC, 2L2Z-9H307GC, 2L2Z 9H307-GC - FORD
9500171, 950-0171 - DENSO AUTO PARTS
AFS0862S - EVO DRIVELINE
2L2Z9H307GB, 2L2Z-9H307GB, 2L2Z 9H307-GB - FORD
67199, 671-99 - BOSCH
67216 - BOSCH
2L2Z9H307GA, 2L2Z 9H307-GA - FORD
P76170M - CARTER
FG0863 - DELPHI
1AMFP00133 - MAGNETI MARELLI
SP2060M - SPECTRA PREMIUM
CFG0863 - AUTOZONE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Ford
Mercury
| 2002 - 2002 | Ford | Explorer |
| 2003 - 2003 | Ford | Explorer |
| 2002 - 2002 | Mercury | Mountaineer |
| 2003 - 2003 | Mercury | Mountaineer |
