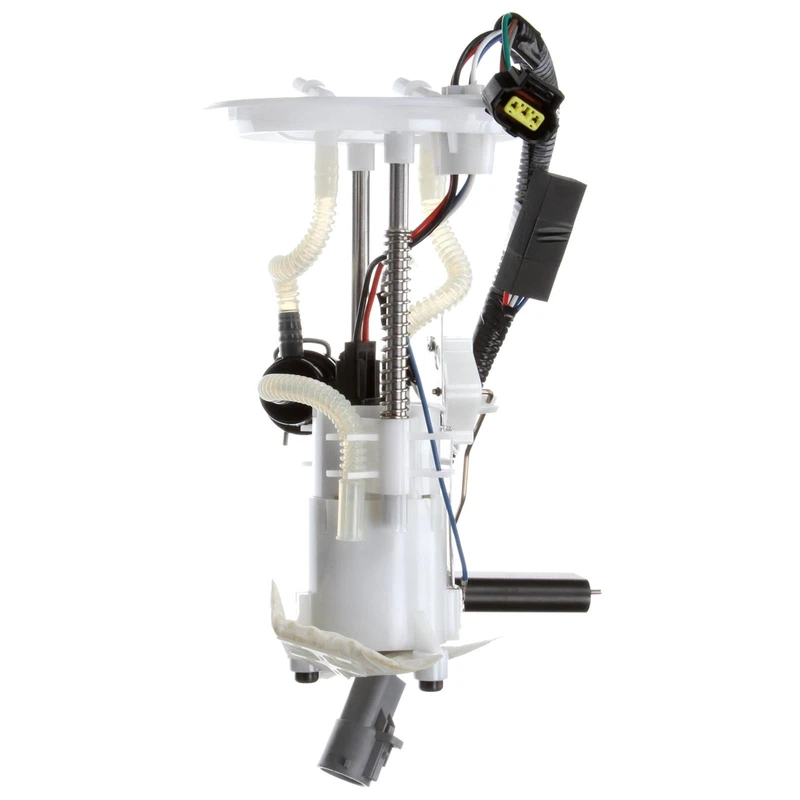

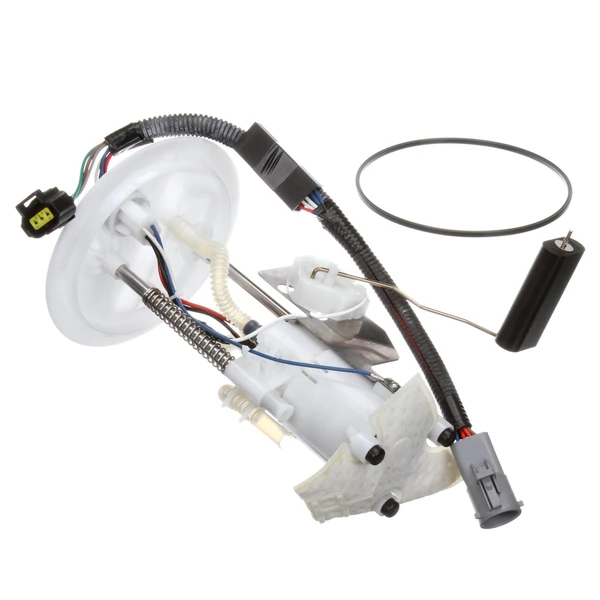

Fuel Pump Module Assembly - Delphi FG0861
Part # FG0861
Item # 1001VGL8
$235.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 23
- Connector Gender
- Female
- Connector Quantity
- 2
- Connector Shape
- Round
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 80
- Minimum Pressure (PSI)
- 51
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 7
- Resistance Ohms Full (Ohms)
- 138
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 8
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a globally renowned OEM manufacturer with a century of professional expertise, Delphi adheres to meticulous OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Focused on quality service, A-Premium ensures that every Delphi fuel pump purchase includes the benefits of free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps ensure reliable performance.
● Replacement Tips: Always check the fuel filter as part of the fuel pump replacement process.
As a globally renowned OEM manufacturer with a century of professional expertise, Delphi adheres to meticulous OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Focused on quality service, A-Premium ensures that every Delphi fuel pump purchase includes the benefits of free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps ensure reliable performance.
● Replacement Tips: Always check the fuel filter as part of the fuel pump replacement process.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2338M - CARQUEST, PUROLATOR, AIRTEX, FACET
A33008 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
1L2Z9H307KF, 1L2Z 9H307 KF, 1L2Z-9H307KF, 1L2Z 9H307-KF - MERCURY, FORD
M2425966 - CARQUEST
9500171, 950-0171 - DENSO AUTO PARTS
E16126 - PRECISION FUEL
1L2Z9H307KE, 1L2Z-9H307KE, 1L2Z 9H307-KE - FORD
67216 - BOSCH
P76539 - CARTER
RE0859S - EVO DRIVELINE
SP2059M - SPECTRA PREMIUM
E2339 - AIRTEX
1AMFP00124 - MAGNETI MARELLI
PFS1014, PFS-1014 - MOTORCRAFT
CFG0861 - AUTOZONE
P76026M - CARTER
FG0861 - DELPHI
PFS434, PFS-434 - MOTORCRAFT
SP1177 - SPECTRA PREMIUM
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Ford
Mercury
| 2002 - 2002 | Ford | Explorer |
| 2003 - 2003 | Ford | Explorer |
| 2002 - 2002 | Mercury | Mountaineer |
