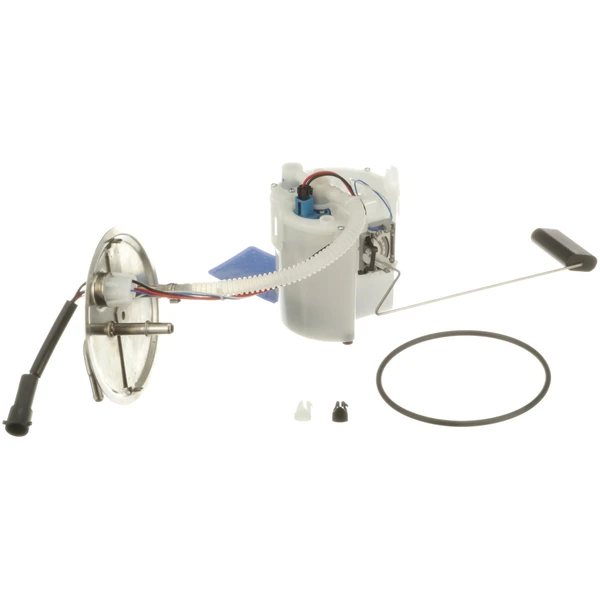

Fuel Pump Module Assembly - Delphi FG0842
Part # FG0842
Item # 1001VK13
$218.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 22

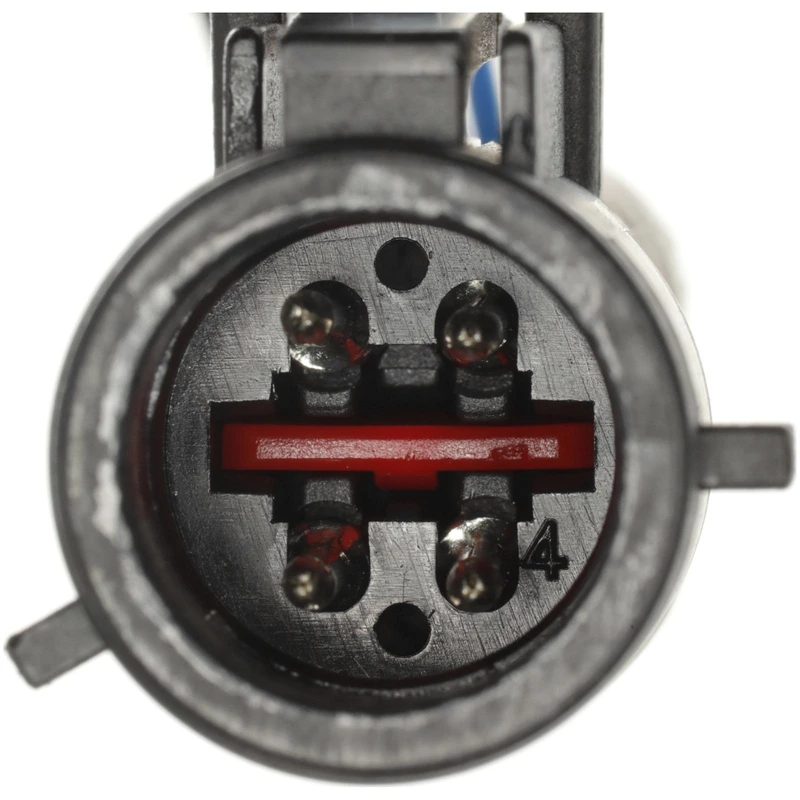

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Round
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 73
- Minimum Pressure (PSI)
- 39
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Clips, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 15
- Resistance Ohms Full (Ohms)
- 160
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 6
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: Delphi fuel pumps support a variety of late-model applications, ensuring new car owners can purchase with confidence and save money.
● Replacement Tips: Always verify the fuel filter condition when installing a new fuel pump.
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: Delphi fuel pumps support a variety of late-model applications, ensuring new car owners can purchase with confidence and save money.
● Replacement Tips: Always verify the fuel filter condition when installing a new fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30289 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E2453M - WALBRO, CARQUEST, AIRTEX
E16028 - IMPORT DIRECT, PRECISION FUEL
TU259 - WALBRO, TI AUTOMOTIVE
6L8Z9H307BA, 6L8Z 9H307-BA, 6L8Z-9H307BA, 6L8Z-9H307-BA - FORD
69168 - BOSCH
5L8Z9H307A, 5L8Z-9H307A, 5L8Z-9H307-A, 5L8Z 9H307-A - FORD
E2314 - AIRTEX
RE0917S - EVO DRIVELINE
9534178, 953-4178 - DENSO AUTO PARTS
SP2055M - SPECTRA PREMIUM
7L8Z9H307B, 7L8Z-9H307B, 7L8Z-9H307-B, 7L8Z 9H307-B - FORD
FG0842 - DELPHI
AFS0917S - EVO DRIVELINE
P76128M - CARTER
1AMFP00061 - MAGNETI MARELLI
CFG0842 - AUTOZONE
AFS0967P - EVO DRIVELINE
5L8Z9H307BD, 5L8Z 9H307-BD, 5L8Z-9H307-BD - FORD
5L849H307BF, 5L84 9H307-BF - FORD
5L8Z9H307BC, 5L8Z-9H307-BC, 5L8Z 9H307-BC - FORD
PFS403, PFS-403 - MOTORCRAFT
SP1134 - SPECTRA PREMIUM
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (12)vehicles
All
Ford
Mercury
| 2005 - 2005 | Ford | Escape |
| 2005 - 2006 | Ford | Escape |
| 2005 - 2006 | Ford | Escape |
| 2005 - 2006 | Ford | Escape |
| 2007 - 2007 | Ford | Escape |
| 2007 - 2007 | Ford | Escape |
| 2007 - 2007 | Ford | Escape |
| 2005 - 2005 | Mercury | Mariner |
| 2005 - 2006 | Mercury | Mariner |
| 2006 - 2006 | Mercury | Mariner |
| 2007 - 2007 | Mercury | Mariner |
| 2007 - 2007 | Mercury | Mariner |
