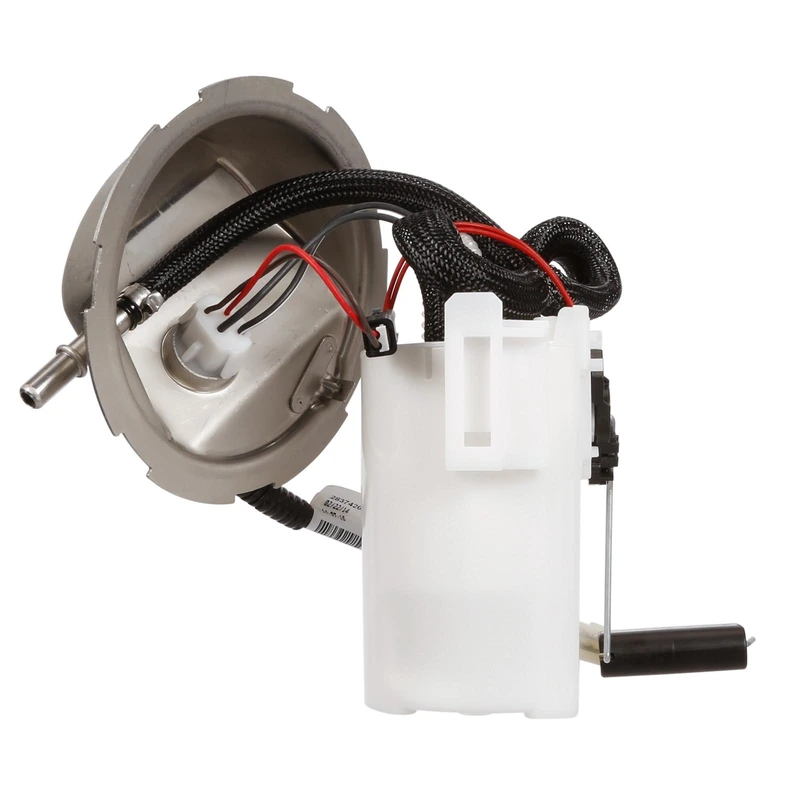

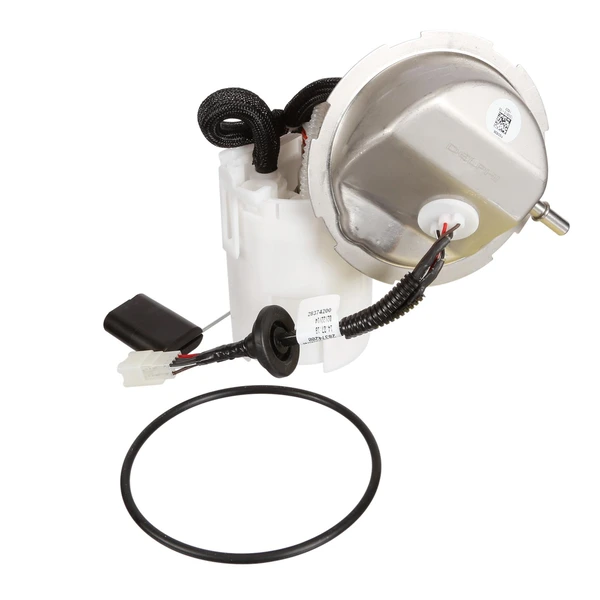

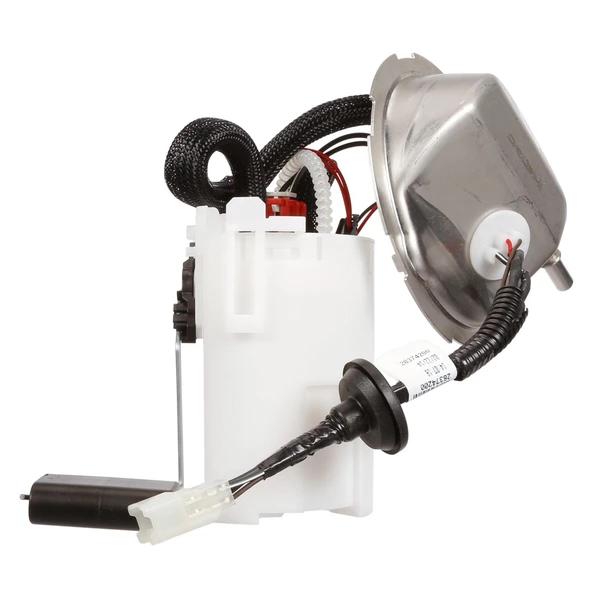

Fuel Pump Module Assembly - Delphi FG0836
Part # FG0836
Item # 1001VET6
$254.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 18
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Square
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 85
- Minimum Pressure (PSI)
- 29
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 15
- Resistance Ohms Full (Ohms)
- 160
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 6
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Choose A-Premium for your Delphi fuel pump, and you’ll enjoy the benefits of free shipping as well as a 3-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● OE-design Connector: Delphi fuel pumps feature an OE-design connector and body harness, ensuring exceptional performance.
● Comprehensive Late-Model Coverage: With wide coverage, Delphi fuel pumps are ideal for late-model vehicle needs.
● Replacement Tips: Be sure to check and clean the fuel tank to prevent unnecessary issues.
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Choose A-Premium for your Delphi fuel pump, and you’ll enjoy the benefits of free shipping as well as a 3-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● OE-design Connector: Delphi fuel pumps feature an OE-design connector and body harness, ensuring exceptional performance.
● Comprehensive Late-Model Coverage: With wide coverage, Delphi fuel pumps are ideal for late-model vehicle needs.
● Replacement Tips: Be sure to check and clean the fuel tank to prevent unnecessary issues.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A27040 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
TU231 - WALBRO, TI AUTOMOTIVE
E2246M - CARQUEST, AIRTEX
P2047S - PIERCE, FORD
FG0836 - ACDELCO, DELPHI
9510008, 951-0008 - DENSO AUTO PARTS
AFS0336S - EVO DRIVELINE
9500181, 950-0181 - DENSO AUTO PARTS
69542 - BOSCH
9534137, 953-4137 - DENSO AUTO PARTS
E16069 - PRECISION FUEL
RE0336S - EVO DRIVELINE
P74955M - CARTER
P74199 - CARTER
XS4Z9H307AA, XS4Z-9H307AA, XS4Z 9H307-AA - FORD
XS4Z9H307AB, XS4Z-9H307AB, XS4Z 9H307-AB - FORD
DFG0836 - AUTOZONE
E2446 - AIRTEX
AFS1002P - EVO DRIVELINE
SP2246M - SPECTRA PREMIUM
1AMFP00072 - MAGNETI MARELLI
RE1002P - EVO DRIVELINE
SP1197 - SPECTRA PREMIUM
67143, 67 143 - BOSCH
PFS239, PFS-239 - MOTORCRAFT
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Ford
Mercury
| 1999 - 2003 | Ford | Escort |
| 1999 - 1999 | Mercury | Tracer |
