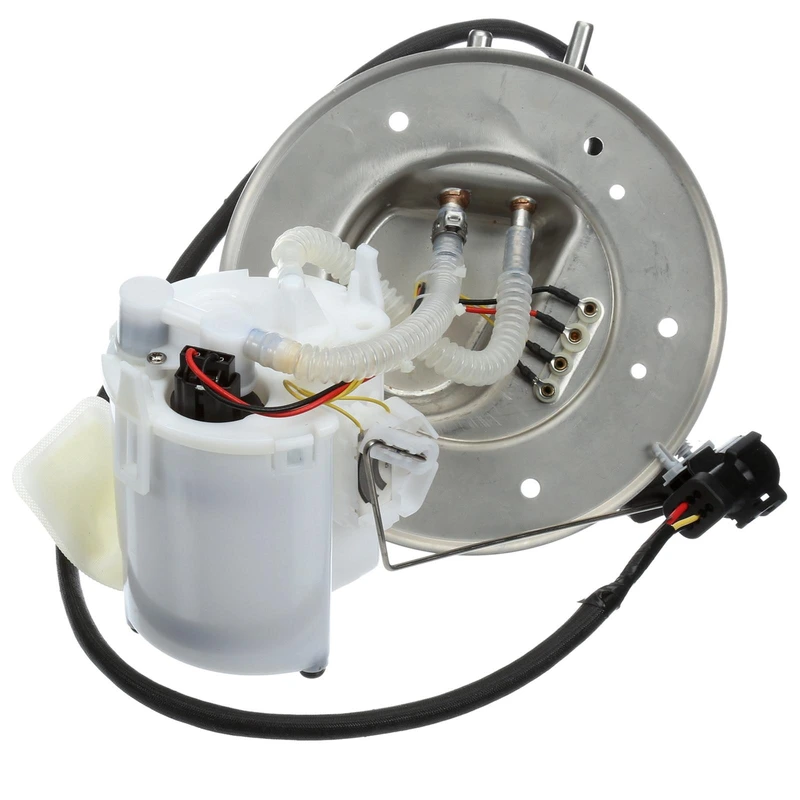

Fuel Pump Module Assembly - Delphi FG0835
Part # FG0835
Item # 1001VCW0
$162.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 5
- Average Flow Rating (gph)
- 27

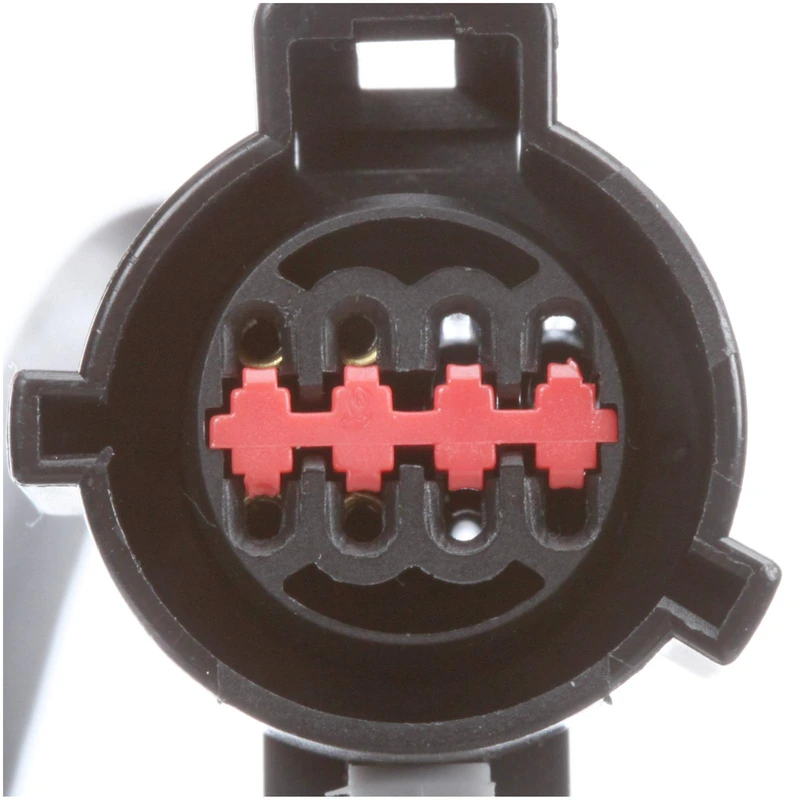

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Round
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 104
- Minimum Pressure (PSI)
- 44
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Clips, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 15
- Resistance Ohms Full (Ohms)
- 160
- Strainer Included
- Yes
- Terminal Gender
- Female
- Terminal Quantity
- 7
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Focused on quality service, A-Premium ensures that every Delphi fuel pump purchase includes the benefits of free shipping and a 3-year warranty.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Focused on quality service, A-Premium ensures that every Delphi fuel pump purchase includes the benefits of free shipping and a 3-year warranty.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30089 - PRECISION FUEL PUMPS, PRECISION FUEL
E2203M - CARQUEST, AIRTEX
9500181, 950-0181 - DENSO AUTO PARTS
P74195 - CARTER
67109 - BOSCH
F8ZZ9H307CF, F8ZZ-9H307CF, F8ZZ 9H307-CF - FORD
F8ZZ9H307CE, F8ZZ-9H307CE, F8ZZ 9H307-CE - FORD
SP2203M - SPECTRA PREMIUM
9534113, 953-4113 - DENSO AUTO PARTS
RE0879P - EVO DRIVELINE
PFS232, PFS-232 - MOTORCRAFT
TU225 - WALBRO
DFG0835 - AUTOZONE
RE0230S - EVO DRIVELINE
AFS0230S - EVO DRIVELINE
AFS0879P - EVO DRIVELINE
FG0835 - DELPHI
P76506M - CARTER
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Ford
| 1998 - 1998 | Ford | Mustang |
