Delphi

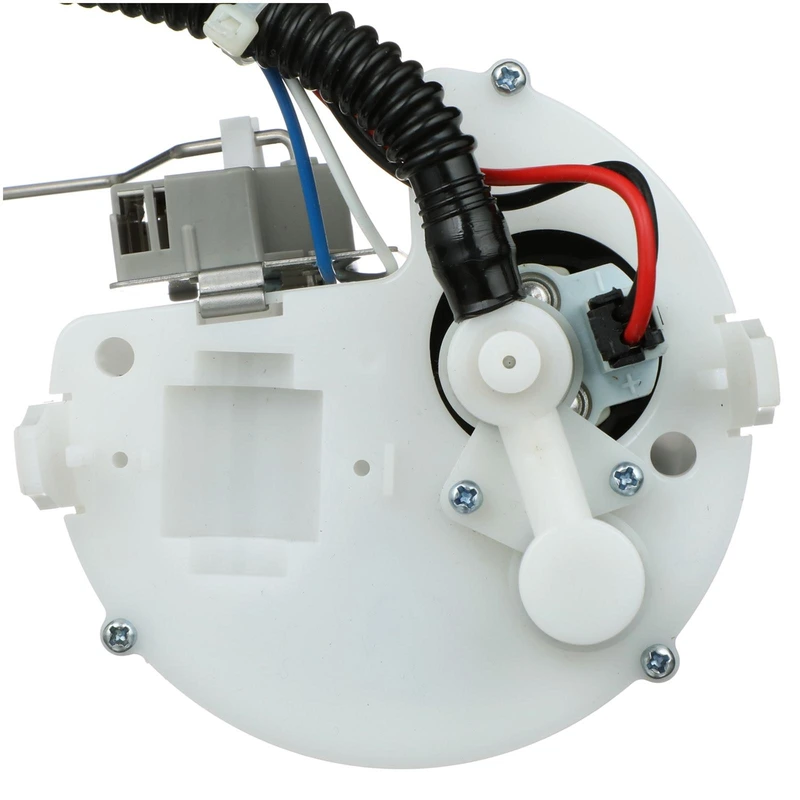

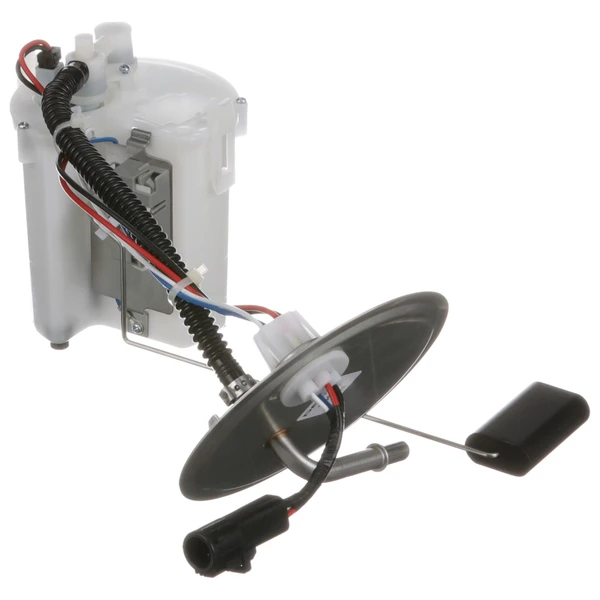

Fuel Pump Module Assembly - Delphi FG0831

Part # FG0831
Item # 1001VHZL
$222.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
10
Average Flow Rating (gph)
22

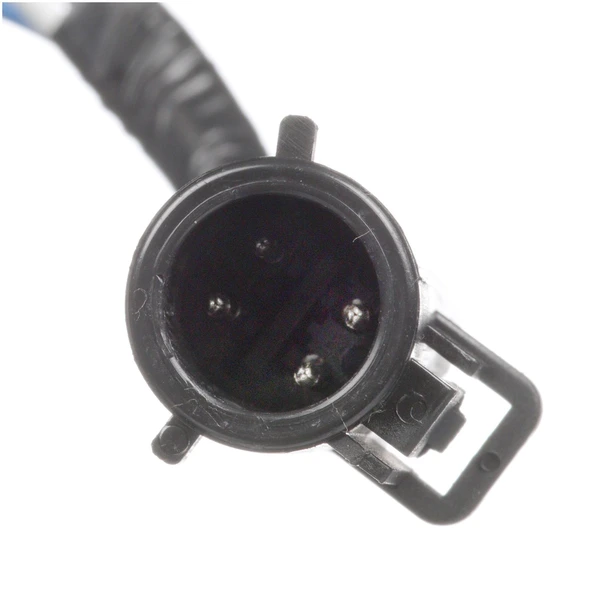

Connector Gender
Female
Connector Quantity
1
Connector Shape
Round
Fuel Filter Included
No
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
External
Lock Ring Included
No
Maximum Pressure (PSI)
80
Minimum Pressure (PSI)
39
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.375
Outlet Quantity
1
Outlet Type
Quick Connect
Package Contents
Fuel Pump Module Assembly with Float Arm, Seal, Clips, Instruction Sheet
Pressure Sensor included
No
Pump Design
Turbine
Pump Type
Electric
Regulator Included
No
Resistance Ohms Empty (Ohms)
15
Resistance Ohms Full (Ohms)
160
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Pin
Voltage (2h)
12
Wire Harness Included
No
Show all

Features

About this item
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium is dedicated to providing top-notch service, allowing customers to enjoy every Delphi fuel pump with free shipping and a 3-year warranty.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● OE-design Connector: With an OE-design connector and body harness, Delphi fuel pumps deliver outstanding performance.
● Comprehensive Late-Model Coverage: With wide-ranging compatibility, Delphi fuel pumps are perfect for new car owners seeking reliable parts at an affordable price.
● Replacement Tips: Always ensure the fuel filter is in good condition during pump replacement.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E2440M - CARQUEST, PUROLATOR, AIRTEX, FACET
A27099 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E16028 - IMPORT DIRECT, PRECISION FUEL
7L8Z9H307D, 7L8Z 9H307-D, 7L8Z 9H307 D - MERCURY, FORD
9534047, 953-4047 - CARQUEST, DENSO AUTO PARTS
TU258 - WALBRO, TI AUTOMOTIVE
ZZC11335XA, ZZC1-13-35XA, ZZC1-1335XA - MAZDA, FORD
69169 - BOSCH
E2386 - AIRTEX
L3H51335X, L3H5-13-35X - MAZDA
RE0916S - EVO DRIVELINE
DFG0831 - AUTOZONE
ZZC013350, ZZC0-13-350 - MAZDA
7L8Z9H307C, 7L8Z 9H307-C, 7L8Z-9H307C - FORD
SP2054M - SPECTRA PREMIUM
L3TT1335X, L3TT-13-35X - MAZDA
FG0831 - DELPHI
AFS0916S - EVO DRIVELINE
SP1150 - SPECTRA PREMIUM
67260 - BOSCH
P76129M - CARTER
5L8Z9H307B, 5L8Z-9H307B, 5L8Z 9H307-B - FORD
5L8Z9H307CC, 5L8Z-9H307CC, 5L8Z 9H307-CC - FORD
PFS404, PFS-404 - MOTORCRAFT

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (13)vehicles
All
Ford
Mazda
Mercury
2005 - 2005FordEscape
2005 - 2006FordEscape
2005 - 2006FordEscape
2005 - 2006FordEscape
2007 - 2007FordEscape
2007 - 2007FordEscape
2007 - 2007FordEscape
2005 - 2006MazdaTribute
2005 - 2005MercuryMariner
2005 - 2006MercuryMariner
2006 - 2006MercuryMariner
2007 - 2007MercuryMariner
2007 - 2007MercuryMariner
