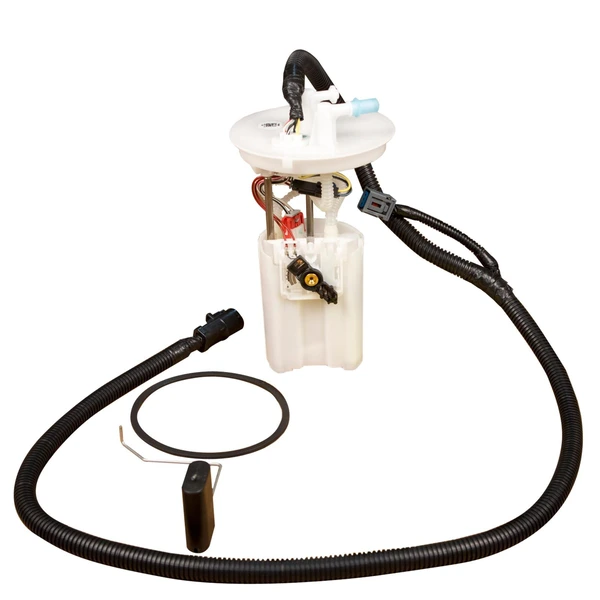

Fuel Pump Module Assembly - Delphi FG0829
Part # FG0829
Item # 1001VGS0
$280.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 14
- Average Flow Rating (gph)
- 19
- Connector Gender
- Female
- Connector Quantity
- 2
- Connector Shape
- Round
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 78
- Minimum Pressure (PSI)
- 51
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 15
- Resistance Ohms Full (Ohms)
- 160
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 8
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● OE-design Connector: Delphi fuel pumps feature an OE-design connector and body harness, ensuring exceptional performance.
● Comprehensive Late-Model Coverage: Delphi fuel pumps cater to a wide range of late-model vehicles, allowing new car owners to enjoy worry-free operation without breaking the bank.
● Replacement Tips: Ensure the fuel tank is inspected and cleaned to avoid future complications.
Delphi, a globally recognized OEM manufacturer with a long history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● OE-design Connector: Delphi fuel pumps feature an OE-design connector and body harness, ensuring exceptional performance.
● Comprehensive Late-Model Coverage: Delphi fuel pumps cater to a wide range of late-model vehicles, allowing new car owners to enjoy worry-free operation without breaking the bank.
● Replacement Tips: Ensure the fuel tank is inspected and cleaned to avoid future complications.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30107 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
TU242 - WALBRO, TI AUTOMOTIVE
E2383M - CARQUEST, AIRTEX
CFG0829 - AUTOZONE
3F2Z9H307AB, 3F2Z-9H307AB, 3F2Z 9H307-AB - FORD
FG0829 - DELPHI
9534027, 953-4027 - DENSO AUTO PARTS
RE0886S - EVO DRIVELINE
3F2Z9H307A, 3F2Z 9H307-A - FORD
E2386 - AIRTEX
P76121M - CARTER
P76041M - CARTER
PFS21, PFS-21 - MOTORCRAFT
SP2383M - SPECTRA PREMIUM
69152 - BOSCH
SP1150 - SPECTRA PREMIUM
AFS0886S - EVO DRIVELINE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Ford
Mercury
| 2004 - 2004 | Ford | Freestar |
| 2004 - 2004 | Ford | Freestar |
| 2004 - 2004 | Ford | Freestar |
| 2005 - 2005 | Ford | Freestar |
| 2004 - 2005 | Mercury | Monterey |
