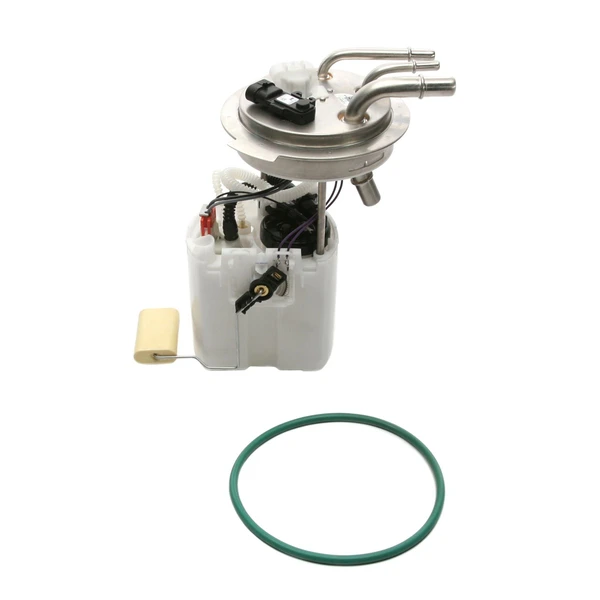

Fuel Pump Module Assembly - Delphi FG0809
Part # FG0809
Item # 1001VK7D
$337.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 9
- Average Flow Rating (gph)
- 30
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 80
- Minimum Pressure (PSI)
- 55
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 250
- Resistance Ohms Full (Ohms)
- 40
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds rigorous OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium is committed to offering the highest quality service, ensuring that each Delphi fuel pump comes with free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds rigorous OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium is committed to offering the highest quality service, ensuring that each Delphi fuel pump comes with free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3610M - CARQUEST, PUROLATOR, AIRTEX, FACET
19256622 - CADILLAC, GENERAL MOTORS, GMC, CHEVROLET
A40001 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19370396 - GENERAL MOTORS, GMC, CHEVROLET
19168774 - GENERAL MOTORS, ACDELCO
19207718 - GENERAL MOTORS
FG0809 - DELPHI
MU1657 - ACDELCO
67567, 67 567 - BOSCH
88965555 - GENERAL MOTORS
RE0957S - EVO DRIVELINE
SP6026M - SPECTRA PREMIUM
DFG0809 - AUTOZONE
88965386 - GENERAL MOTORS
P76272M - CARTER
1AMFP00104 - MAGNETI MARELLI
AFS0957S - EVO DRIVELINE
M2520851 - CARQUEST
TS1016 - ACDELCO
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (12)vehicles
All
Cadillac
Chevrolet
GMC
| 2004 - 2007 | Cadillac | Escalade ESV |
| 2004 - 2007 | Cadillac | Escalade EXT |
| 2004 - 2005 | Chevrolet | Avalanche 1500 |
| 2004 - 2007 | Chevrolet | Suburban 1500 |
| 2006 - 2006 | Chevrolet | Avalanche 1500 |
| 2006 - 2006 | Chevrolet | Avalanche 1500 |
| 2006 - 2006 | Chevrolet | Avalanche 1500 |
| 2006 - 2006 | Chevrolet | Avalanche 1500 |
| 2007 - 2007 | Chevrolet | Avalanche |
| 2007 - 2007 | Chevrolet | Avalanche |
| 2007 - 2007 | Chevrolet | Avalanche |
| 2004 - 2007 | GMC | Yukon XL 1500 |
