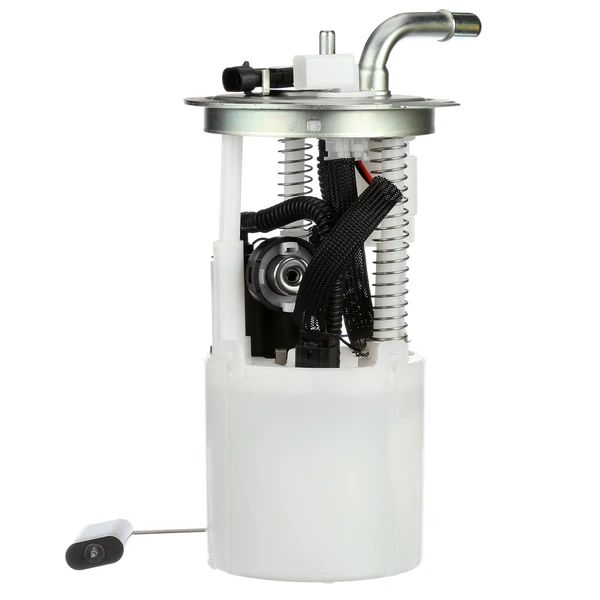

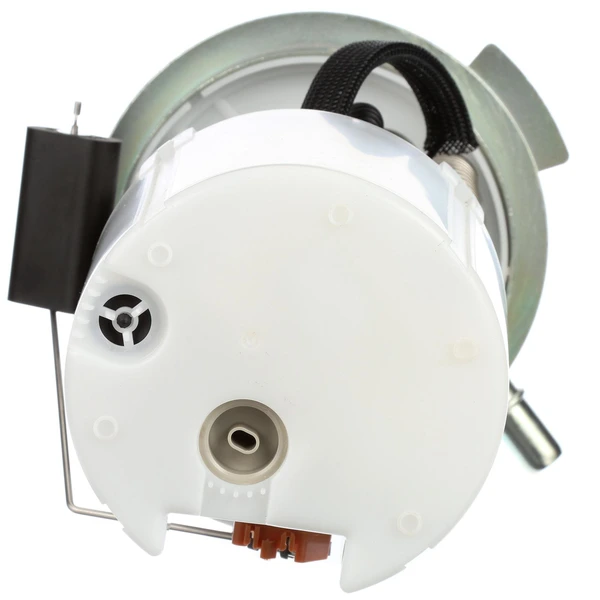

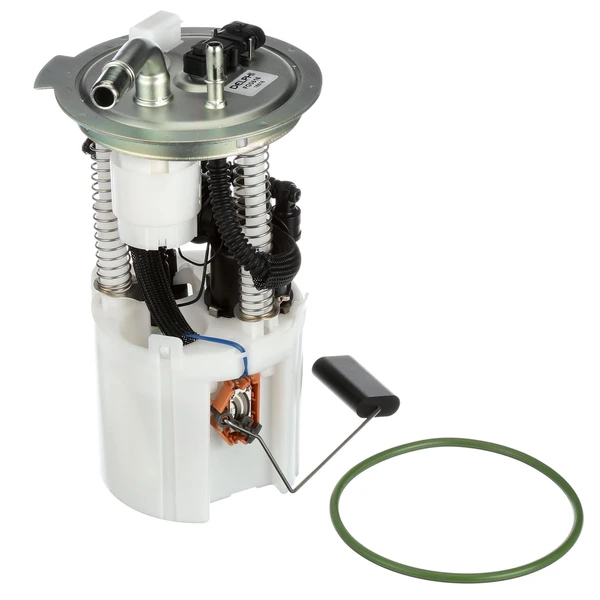

Fuel Pump Module Assembly - Delphi FG0516
Part # FG0516
Item # 1001VGQ9
$328.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 9
- Average Flow Rating (gph)
- 26
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 80
- Minimum Pressure (PSI)
- 58
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 250
- Resistance Ohms Full (Ohms)
- 40
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds rigorous OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty with every Delphi fuel pump purchase.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Comprehensive Late-Model Coverage: With a wide range of coverage, Delphi fuel pumps are suitable for various late-model applications.
● Replacement Tips: Replacing the fuel filter is a crucial step when installing a new fuel pump.
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds rigorous OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty with every Delphi fuel pump purchase.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Comprehensive Late-Model Coverage: With a wide range of coverage, Delphi fuel pumps are suitable for various late-model applications.
● Replacement Tips: Replacing the fuel filter is a crucial step when installing a new fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
19153374, 19 153 374 - GENERAL MOTORS, BUICK, SAAB, GMC, CHEVROLET
A30120, A-30120 - IMPORT DIRECT, PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E3707M - CARQUEST, PUROLATOR, AIRTEX, FACET
19418261 - GENERAL MOTORS, BUICK, GMC, CHEVROLET
19177711 - GENERAL MOTORS, GMC, CHEVROLET
9533053, 953-3053 - DENSO, DENSO AUTO PARTS
9533052, 953-3052 - DENSO, DENSO AUTO PARTS
88967148, 88 96 7148 - GENERAL MOTORS, SAAB
E3746M - CARQUEST, AIRTEX
SK1159 - ACDELCO
MU1655 - ACDELCO
67508, 67 508 - BOSCH
19177712 - GENERAL MOTORS
SP6007M - SPECTRA PREMIUM
1AMFP00150 - MAGNETI MARELLI
FG0516 - DELPHI
MI0087 - ACDELCO
AFS0910S - EVO DRIVELINE
CFG0516 - AUTOZONE
P76218M - CARTER
RE0910S - EVO DRIVELINE
MU1701 - ACDELCO
SP6006M - SPECTRA PREMIUM
M10087 - ACDELCO
TU455 - WALBRO
88966957 - GENERAL MOTORS
P76217M - CARTER
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Chevrolet
GMC
Isuzu
| 2005 - 2006 | Chevrolet | Trailblazer EXT |
| 2005 - 2005 | GMC | Envoy XUV |
| 2005 - 2006 | GMC | Envoy XL |
| 2005 - 2006 | Isuzu | Ascender |
